2

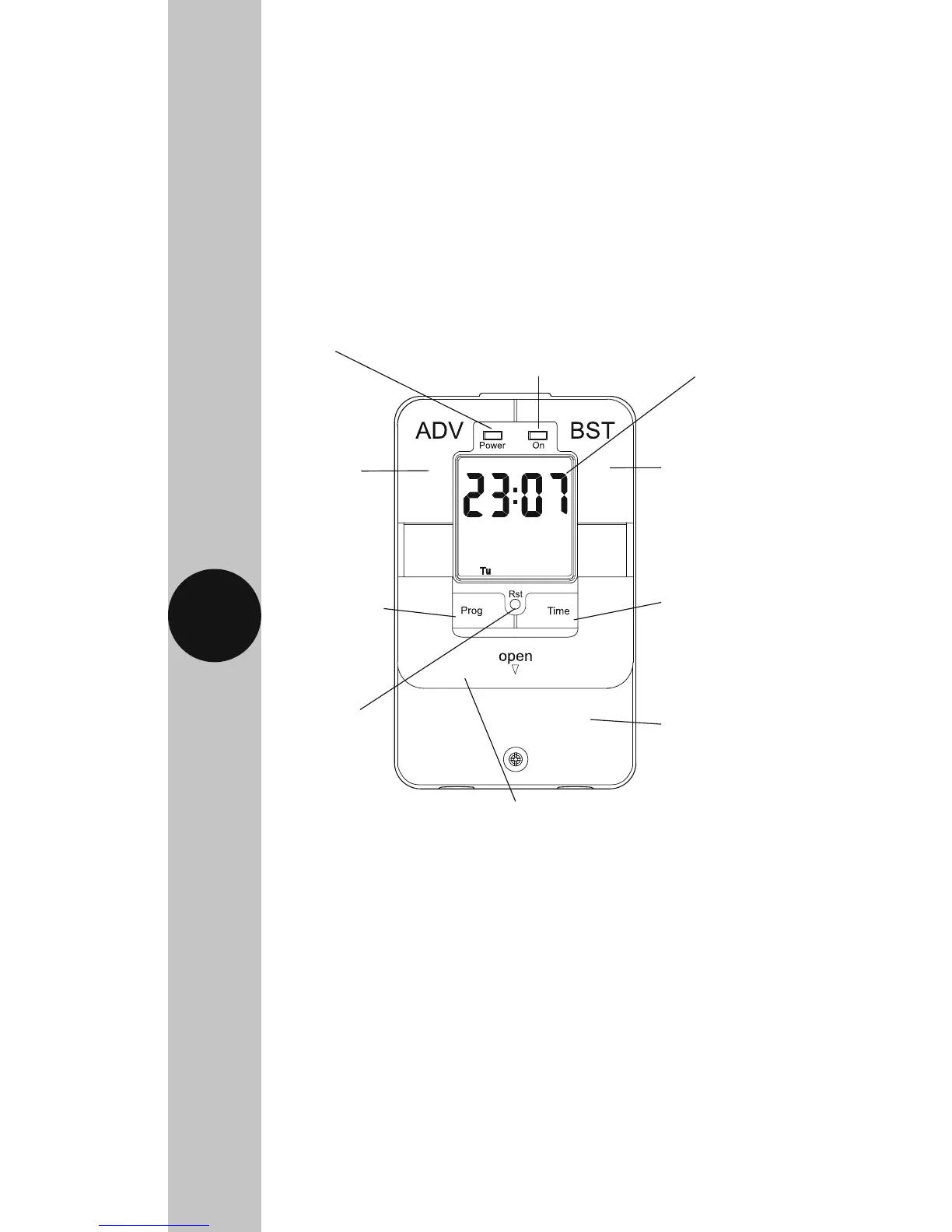

Programme
button
Illuminated
screen
Reset
button
Time
button
Power LED
Terminal
cover
Sliding cover
Output
LED
Boost
button
Advance
button
• Operating Temperature: 0°C to +40°C
• CE Approved
Note: Not suitable for use with
Discharge Lighting.
The LED switching capabilities of this product
can be increased to 200W by the addition of
the Timeguard ZV900 Automatic switch load
controller – sold separately.
4. Installation
• Ensure the mains supply is switched off
and the circuit supply fuses are removed
or the circuit breaker turned off.
• Remove the terminal cover by undoing
the fixing screw on the bottom of the
time switch.
• Mark the position of the top wall mounting
screw. Drill out the top mounting hole taking
care to avoid any joists, electrical cables
