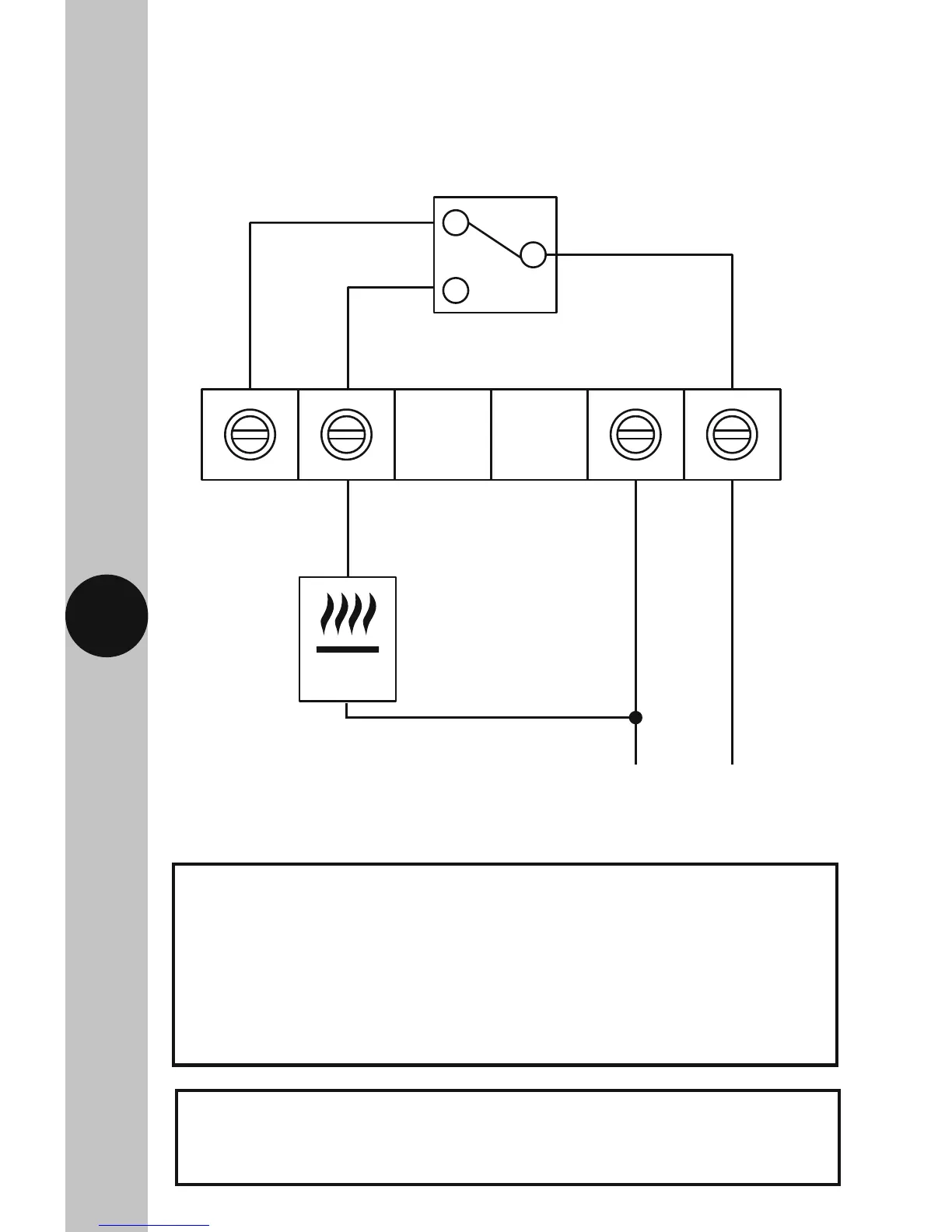

Timeguard TRT034N - Electrical Connection Diagram; Connecting Mains and Load Wiring

NC
NO
BOILER
L
230V AC 50Hz
MAINS SUPPLY
Supply
Neutral
Supply
Live
N
Switch Live from NO
(normally open contact
for heating) to Boiler
5
6. Connection Diagram
Connect the 230V 50Hz mains supply and load cables to the terminal block
which are marked as follows;
• Note: Check boiler instructions before connecting.
230V 50Hz Mains Supply
Live Supply (Brown or Red) to L
Neutral Supply (Blue or Black) to N
A ‘Loop Terminal’ is provided should a 3 core cable
be used
Load (Boiler)
Switch Live (Brown or Red) to NO
