Timeguard TRT047N - Transmitter Specifications; Transmitter Front View Overview

2
Transmitter
• Batteries: 2x 1.5V AA
• Operating Temperature Range: 0°C to +40°C
• Set Temperature Range: 10°C to 30°C
• Temperature Swing Adjuster: +/- 0.5°C or 1.0°C set by DIP switch
• PID Adjustment: ON or OFF set by DIP switch
• Boiler Type Adjustment: 3CYC = Gas, 6CYC = Oil, set by DIP switch
• Frost Protection Mode: 5°C
• Night Set Back Mode: Lowers set temperature
by 4°C for 1-9 hours
• Transmission: 868.3MHz
• Illumination: Blue LED illuminated on setting
for button surrounds and display
• Installation Type: Surface mount with wall plate
• CE Compliant
• Dimensions (H x W x D): 90 x 95 x 30mm

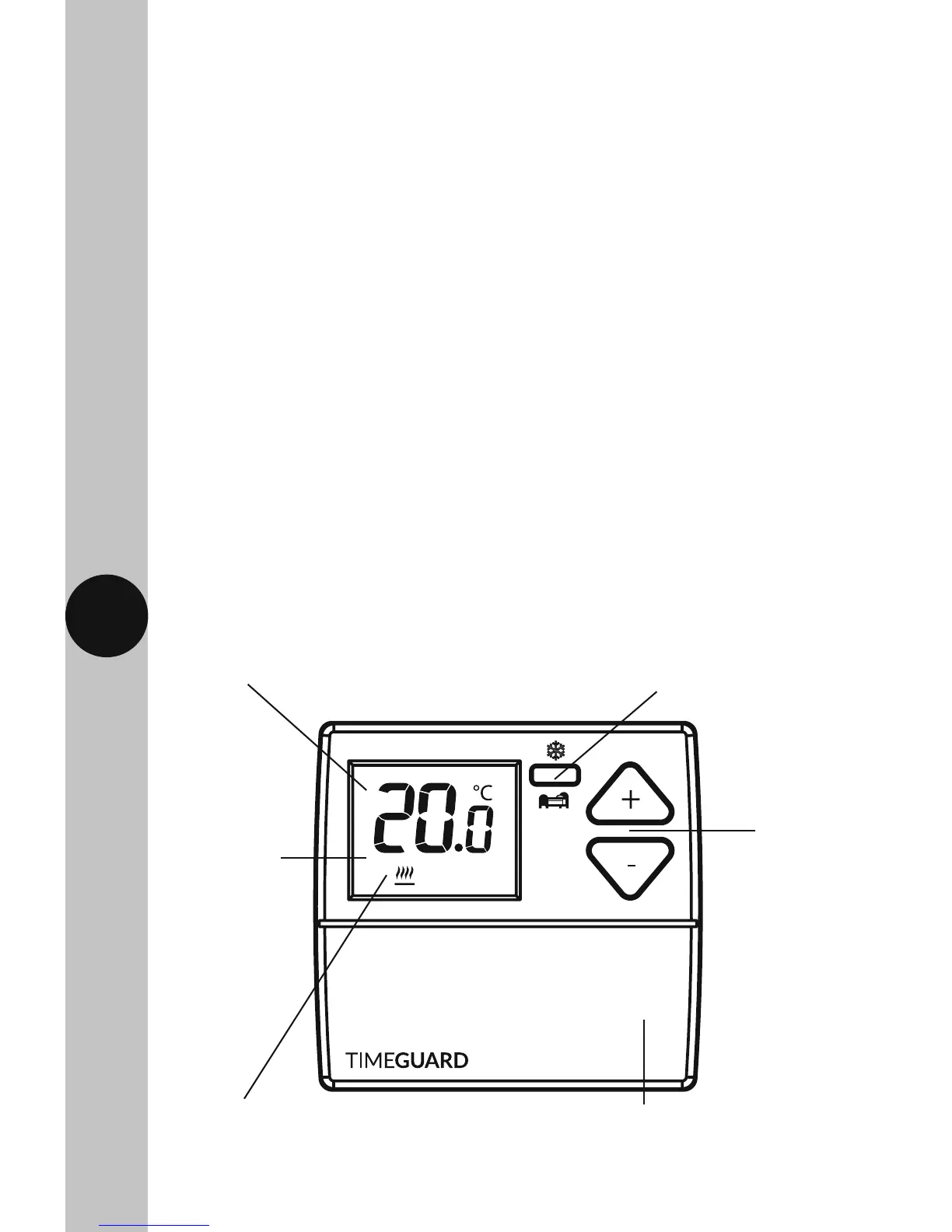

Transmitter Front View
Digital room temperature display
(illuminated on setting)
10°C to 30°C
set temperature
range
The heating symbol
will show when heat
is demanded
Night set-back (reduces temperature
by 4°C, 1-9 hours recall) and frost
protection setting mode
+/- setting
buttons
(illuminated
on setting)
Flip down cover for display battery
compartment and reset button –
uses 2x 1.5V AA batteries supplied
