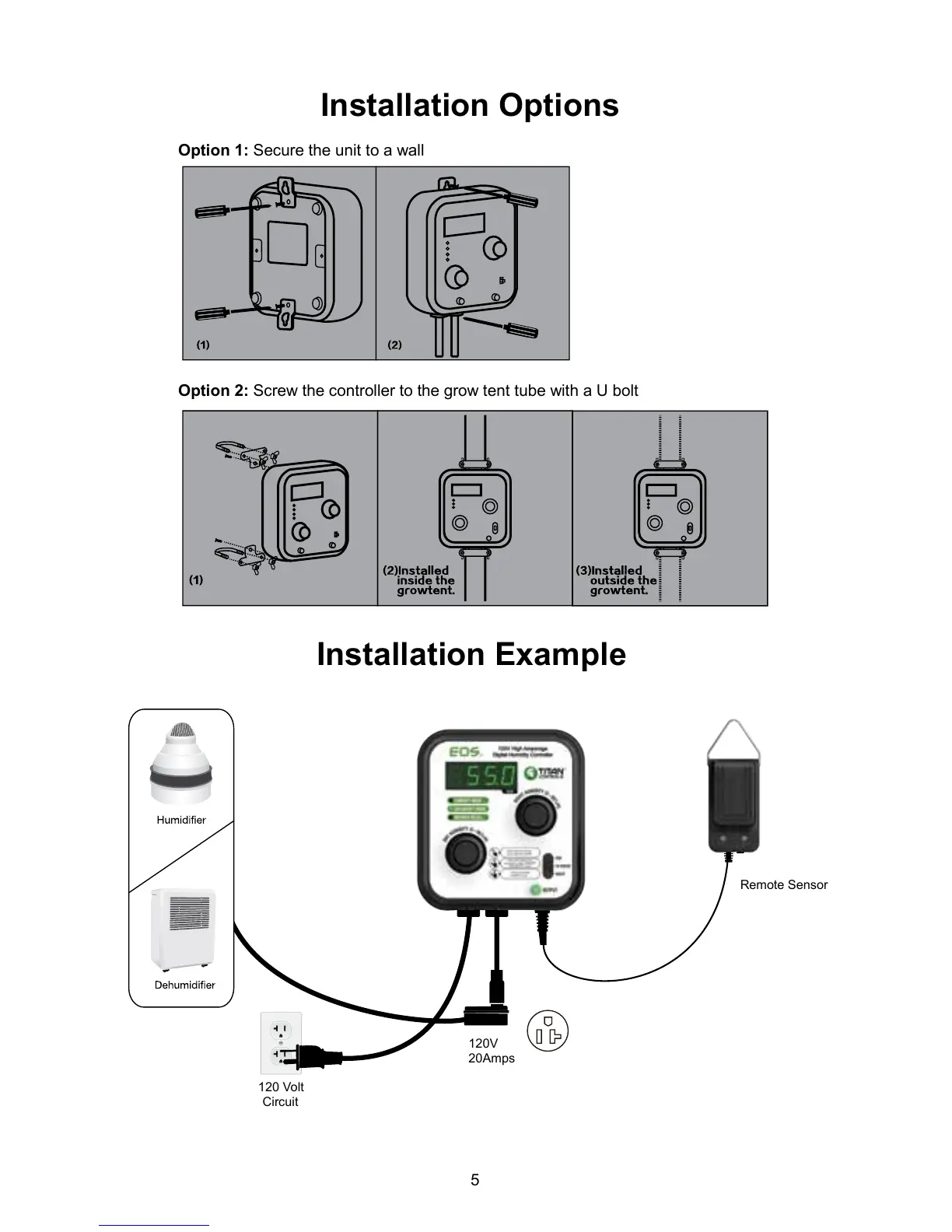

Installation Options
Option 1: Secure the unit to a wall
Option 2: Screw the controller to the grow tent tube with a U bolt
Installation Example
5
Remote Sensor
120 Volt
120V
20Amps
Circuit
