11

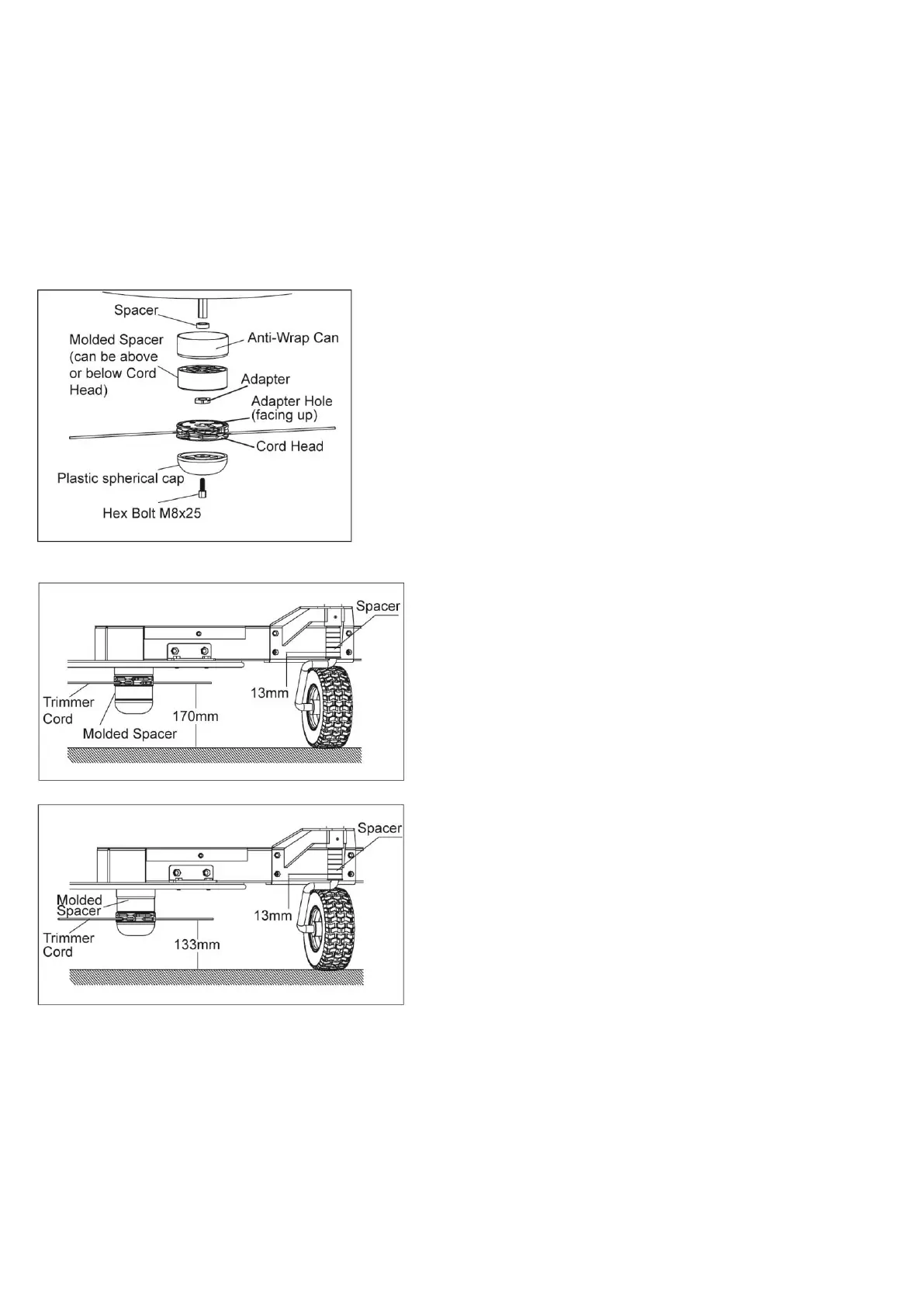

STEP 6: Cord Head Adjustment
Note: The cord head can be located above or below the molded spacer giving you a 1-1/2” range in
trimming height. The following steps show moving the cord head from below the molded spacer to on top
of the molded spacer.
1. Align the hole in the anti wrap canister with the internal
housing at the location shown.
2. Insert a Philips head screwdriver into the hole in the anti
wrap canister and the hole in the internal housing.
3. Rotate the plastic spherical cap until the screw driver
sliders into a hole in the shaft, locking it into place.
4. Looking down at the top of the Frame, turn the plastic
spherical cap clockwise until it unscrews completely from
the bearing housing.
Note: If the plastic spherical cap continues to turn, but does
not come off, check that you locked the screw driver into
the shaft. If the plastic spherical cap will not turn by hand a
9/16” Socket can be used on the belt (inside the bottom of
the plastic spherical cap) to loosen it. You may need to
clean grass or debris out of the recess first.
5. Slide the cord head, adapter and molded spacer off the
shaft.
6. The anti wrap can and spacer should remain on the shaft
with the screw driver.
7. Make sure the adapter is inserted into the top of the cord
head as you install the cord head onto the shaft.
8. Install the molded spacer onto the shaft.
9. Place the head of the hex bolt M8x25 so it is sitting inside
the hex cavity at the bottom of the plastic spherical cap.
10. Looking down at the top of the frame, hold the bolt head
in place with your finger and turn the plastic spherical cap
clockwise to start the bolt into the shaft.
11. Tighten the assembly securely by turning the plastic
spherical cap counterclockwise when looking down on the
top of the frame.
12. Remove the screw driver.
