Before you start
TTB579PLN by TITAN
Getting started...
GB
16
IE

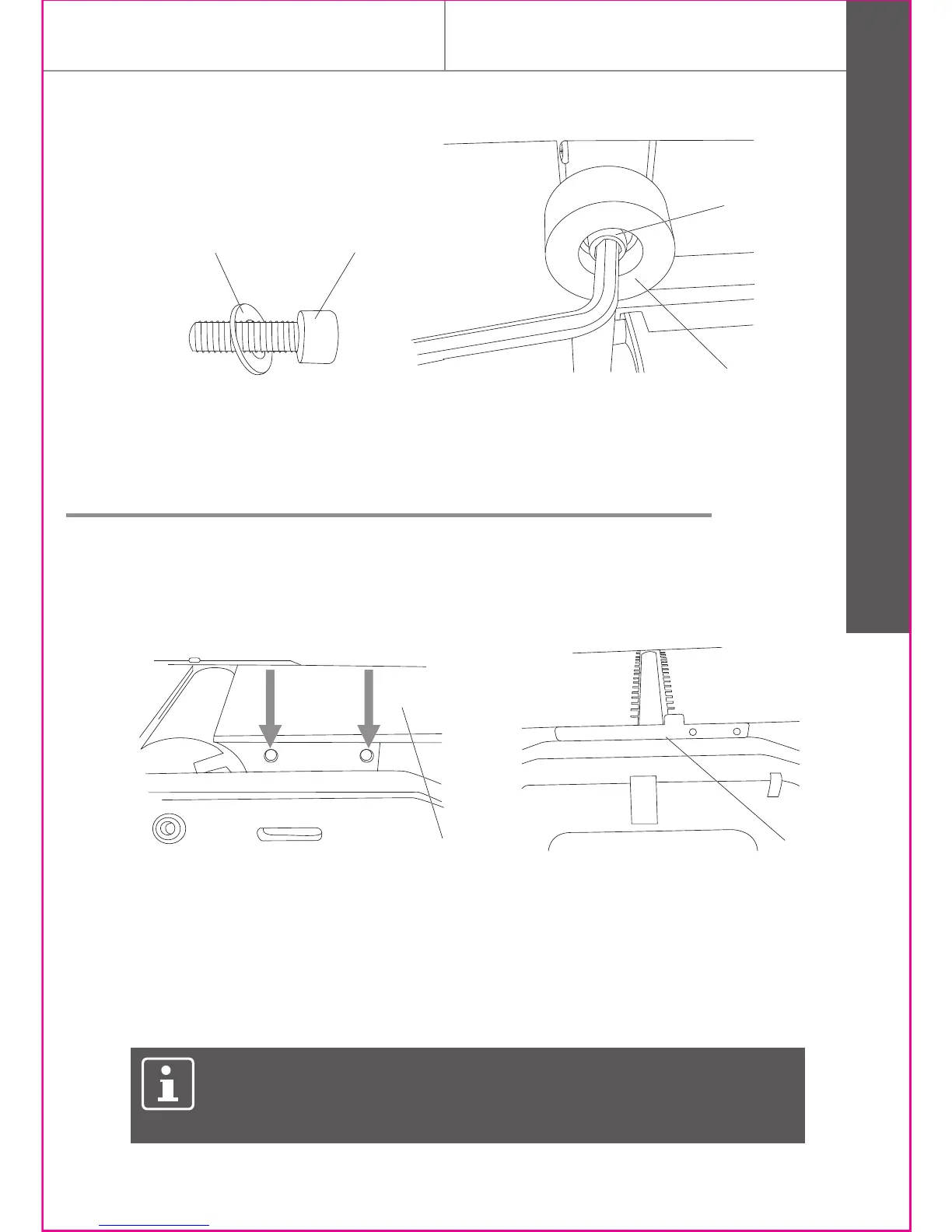

Fitting the guide fence
> Locate the 2 x guide fence mounting holes situated on the side of the planning
out-feed table (13). (Fig. 3)
> Then place the safety guard plate (24). (Fig. 4)
> Line up the 2 x mounting holes on the guide fence (8) with those situated on
the out-feed table.
> Fit a spring washer M6 (25) and a hex head screws M6 x 25mm (26) through
both sets of holes and tighten with the 5mm hex key to secure. (Fig 5 & 6)
NOTE: Do not over-tighten the screws as this will cause un-wanted
damage to the aluminium outfeed table. Just tighten until the
fence is secured.
Fig. 3 Fig. 4
24
Fig. 2Fig. 1
3
23
23
13
22

Titan TTB579PLN Specifications

General

Brand	Titan
Model	TTB579PLN
Category	Planer
Language	English
