23
TTB579PLN by TITAN
Product functions
In more detail…
GB
IE

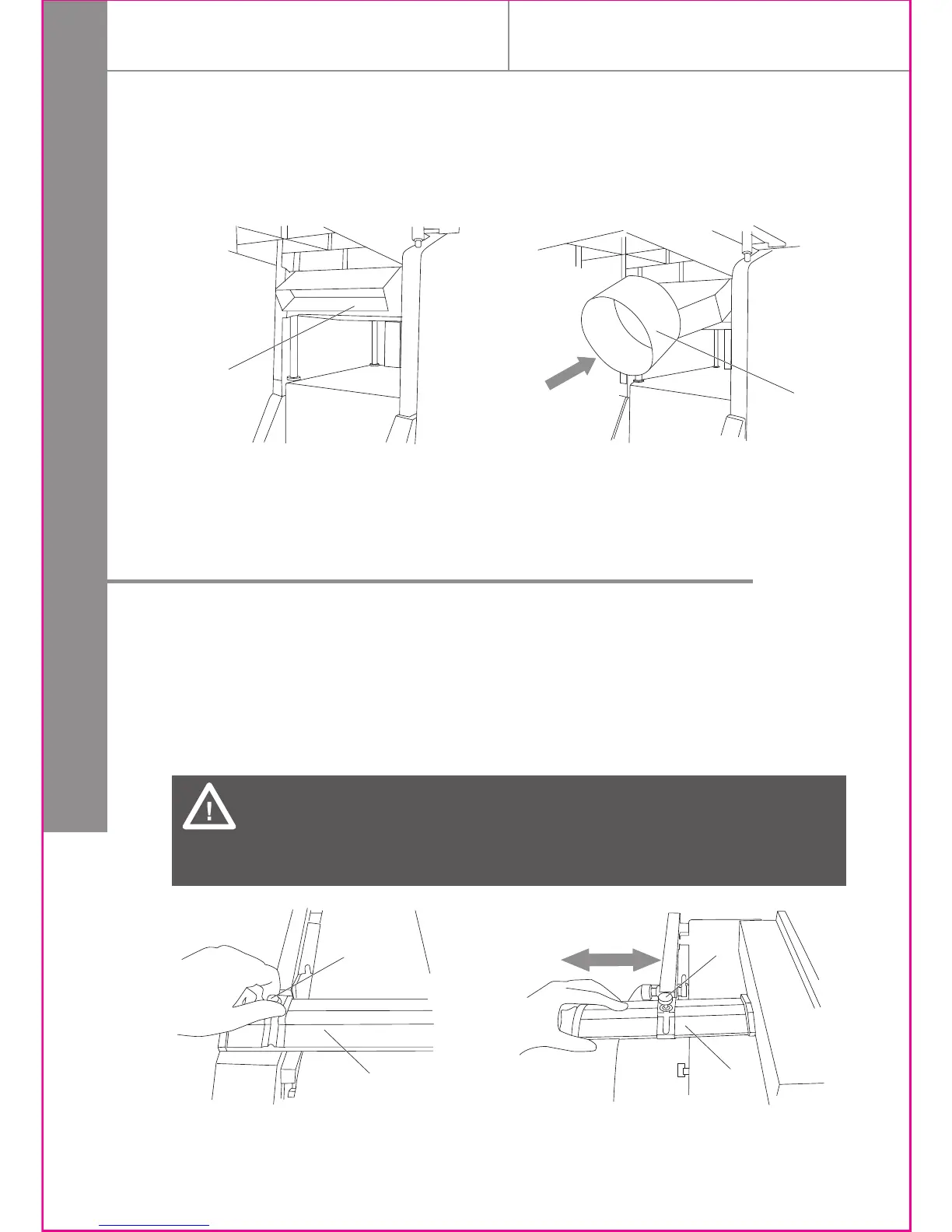

Fig. 19 Fig. 20
Fig. 21 Fig. 22
> Once fitted correctly, the extraction port should look as in Fig 19.
> Finally, fit the extraction port adapter (7) by simply sliding it over the extraction
port as in Fig 20.
Caution: When the machine is not in use the plug should be
removed from the mains socket and the blade guard (9) should be
set so that it covers the whole of the cutter assembly so as
to reduce the risk of injury.
3) Setting the blade guard
> Loosen the blade guard locking knob (10).
> Pull back the blade guard (9).
> Set the workpiece against the guide fence (8).
> Slide the blade guard (9) towards the workpiece (leaving a small gap of a few
millimetres).
> Re-tighten the blade guard locking knob (10) to secure.
7
28
10
9
10
9
