Product functions
TTB579PLN by TITAN
22
In more detail…
GB
IE
Caution: Do not secure the extraction port too tightly If too much
force is applied to the height adjusting handle the extraction port
will go beyond its optimum position, the safety interlock switch will
disengage and the motor will not run.

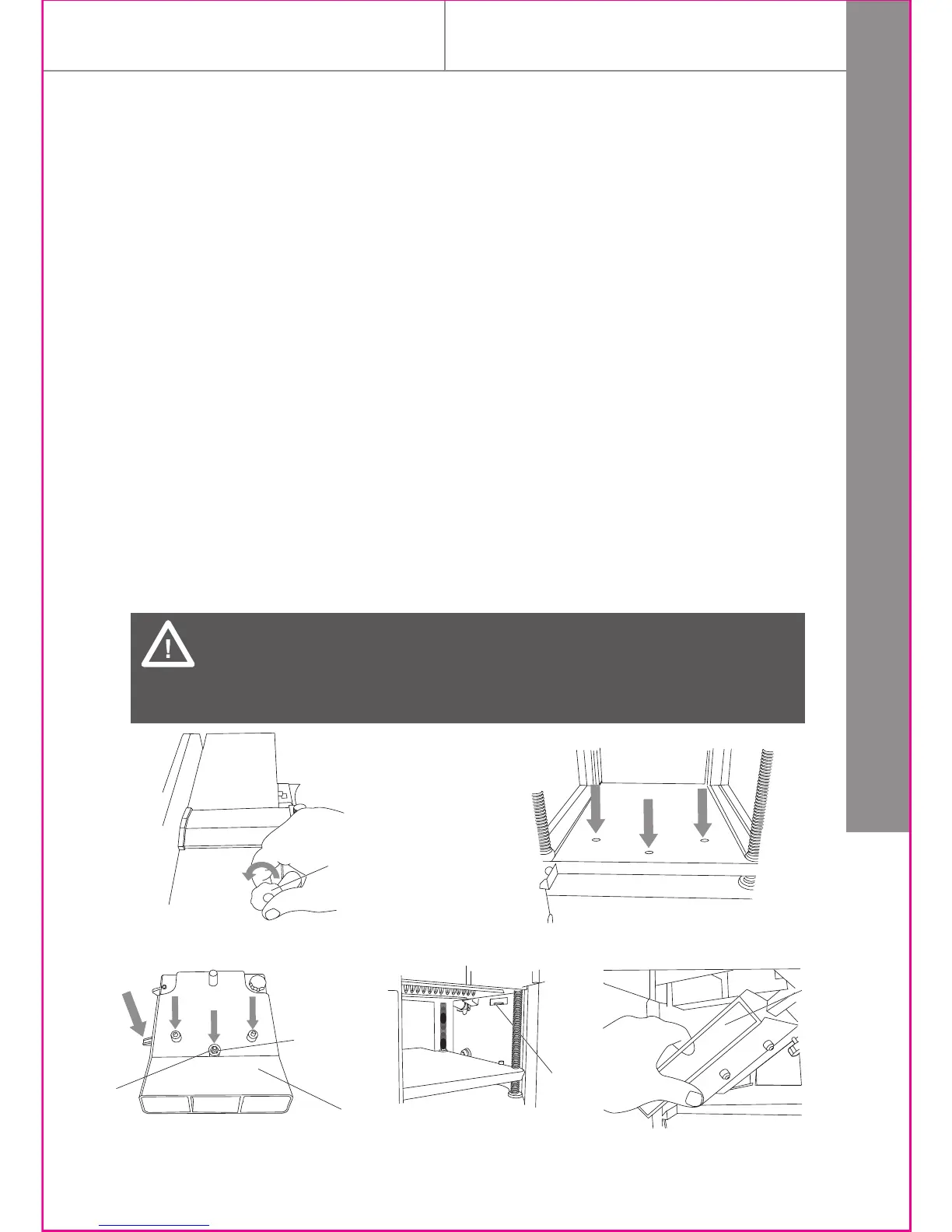

Fig. 14 Fig. 15
Fig. 16 Fig. 18Fig. 17
> Continue turning the handle until the thicknesser table reaches its lowest point.
> On the bottom of the thicknesser table there are 3 holes, these are the locating
holes for the corresponding locating points on the extraction port assembly.
(Fig. 15)
> Make note of “tab d” as this is the point that engages the interlock switch (31)
and allows the planer thicknesser to run safely. (Fig. 16 & 17)
> Take care to ensure that this “tab” is located correctly whilst fitting the
dust extraction port.
> Hold the dust extraction port (30) assembly at approximately 45° and slide it
into place onto the thicknesser bed. (Fig. 18)
> Loosen the nut (32) with 10mm spanner supplied, then remove it and the flat
washer M8 (33). (Fig. 16)
> Ensure that the 3 locating points line up with the corresponding holes
on the thicknesser bed and set the port flat against the bed.
> Secure the extraction port by fitting the flat washer M8 (33) and the nut (32)
onto the middle (threaded) locating point, then tighten the nut (32).
> Turn the height adjusting handle (11) clockwise to raise the thicknesser bed.
This will secure the extraction port in place as well as engaging the safety interlock
switch.
d
30
33
30
11
32
31
