Getting Started . . .
Before you start
Assembly
WARNING! The machine must be fully assembled before operation!
Do not use a machine that is only partly assembled or assembled with damaged
parts!
Follow the assembly instructions step-by-step and use the pictures provided
as a visual guide to assemble the machine easily!
Disconnect the spark plug connector before assembly! Reconnect it after
assembly (see "Maintenance").
NOTE: Take care of small parts that are removed during assembly or when
making adjustments. Keep them secure to avoid loss.
NOTE: The throttle cable (13) is pre-assembled. Make sure it is not kinked
during assembly.

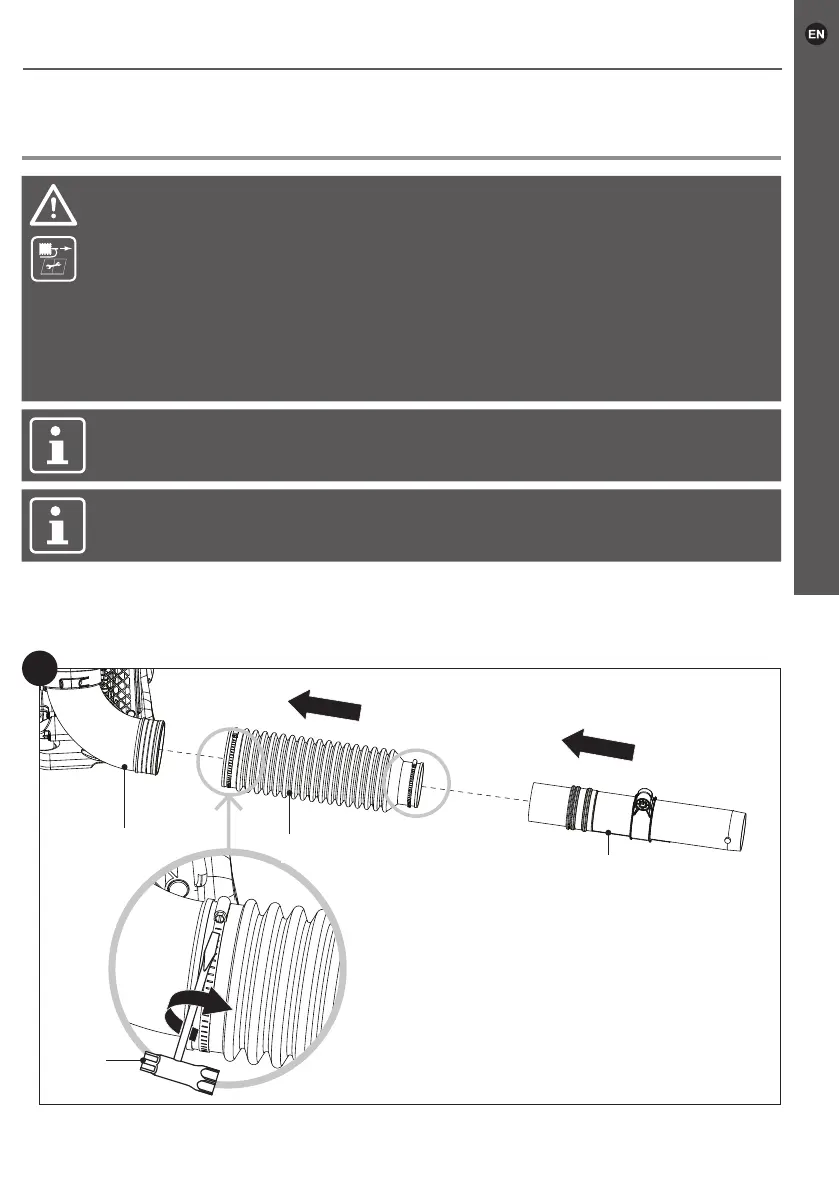

1. Insert the exible hose (5) into the elbow (4), then insert the extension tube (9) into
the exible hose (5) (Fig. 1). Using the multi-tool I (25) tighten the screws on the
clamps to secure both parts in place (Fig. 1).
1
4
5
9
25
