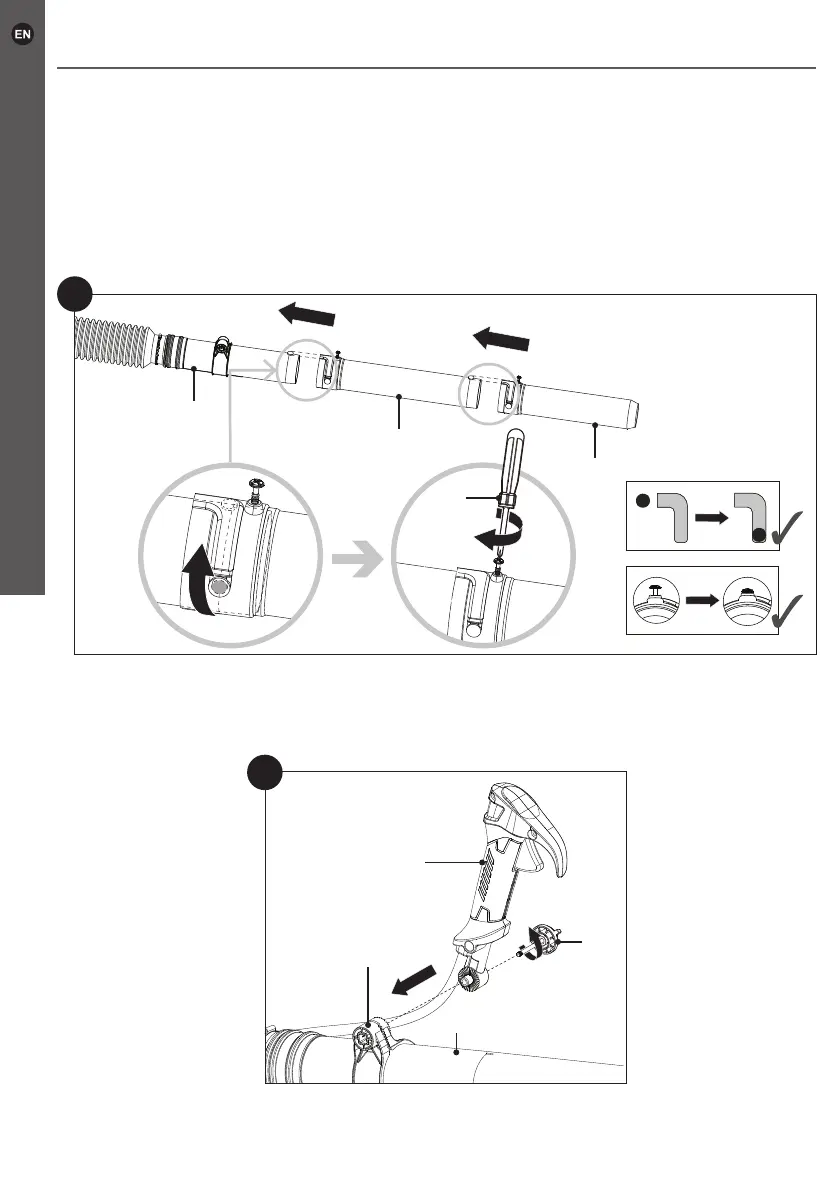

2. Align the recess on the blower tube (10) with the stud on the extension tube (9). Push
and twist the blower tube (10) until the stud goes into the end of the recess. Tighten
the screw on the blower tube (10) using the screwdriver (26) (Fig. 2).
3. Align the recess on the nozzle (11) with the stud on the blower tube (10). Push and
twist the nozzle (11) until the stud goes into the end of the recess. Tighten the screw
on the nozzle (11) using the screwdriver (26) (Fig. 2).
2
9
10
11
26
4. Attach the control handle (6) to the control handle holder (12) on the extension
tube (9). Run the thumb screw (29) through the holes on both parts. Tighten the
thumb screw (29) to secure all parts in place (Fig. 3).
3
6
12
29
9
