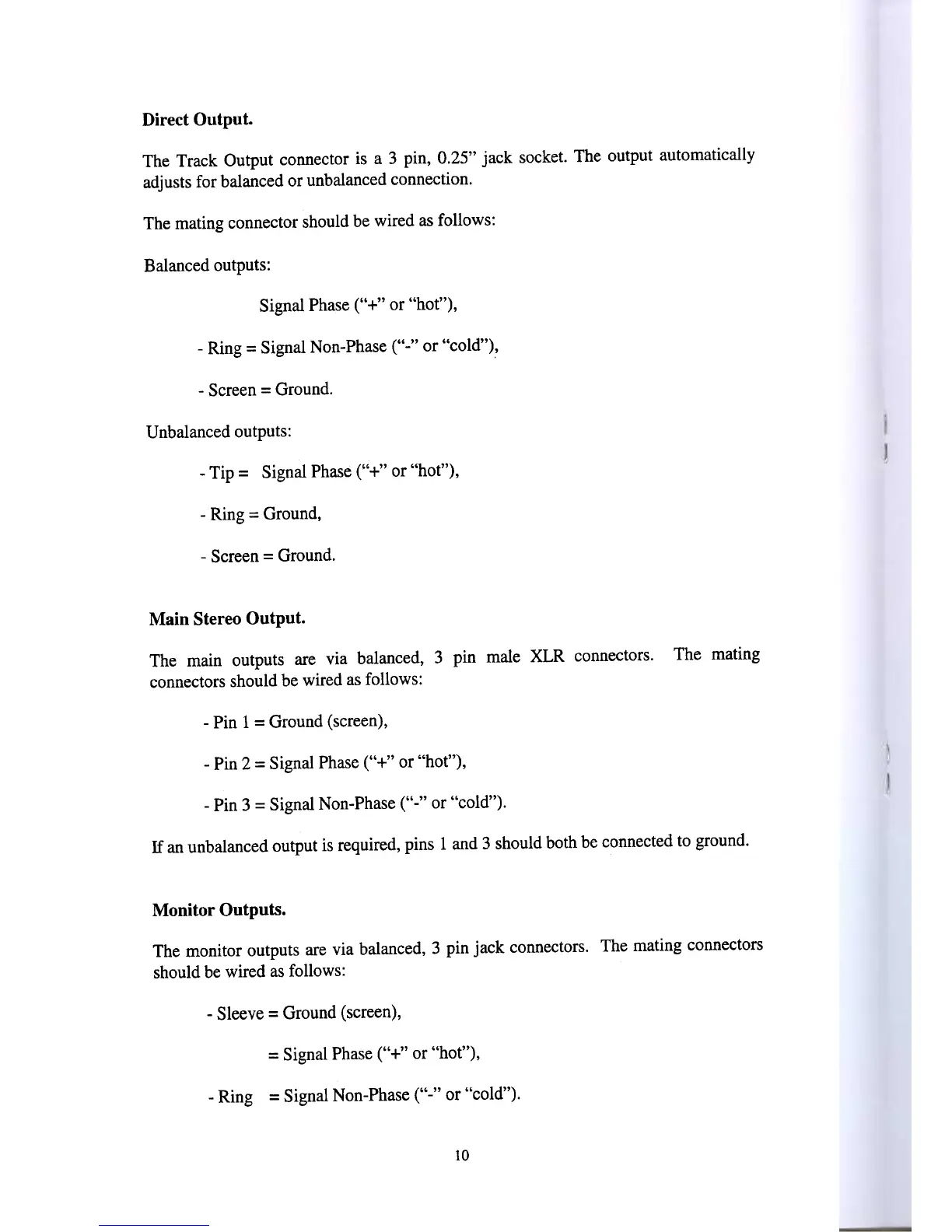

Direct Output.
The Track Output connector is a 3 pin, 0..25" jack socket. The output automatically
adjusts for balanced or unbalanced connection.
The mating connector should be wired as follows:
Balanced outputs:
Signal Phase ("+" or "hot"),
- Ring = Signal Non-Phase ("-" or "cold"),
- Screen = Ground.
Unbalanced outputs:
- Tip = Signal Phase (~~+" or "hot"),
- Ring = Ground,
- Screen = Ground.
Main Stereo Output.
The mating
The main outputs are via balanced, 3 pin male XLR connectors.
connectors should be wired as follows:
- Pin 1 = Ground (screen).
- Pin 2 = Signal Phase ("+" or "hot"),
- Pin 3 = Signal Non-Phase ("-" or "cold").
If an unbalanced output is required, pins 1 and 3 should both be connected to ground.
Monitor Outputs.
The monitor outputs are via balanced, 3 pin jack connectors. The mating connectors
should be wired as follows:
- Sleeve = Ground (screen),
= Signal Phase ("+" or "hot"),
= Signal Non-Phase ("-" or "cold").
- Ring
