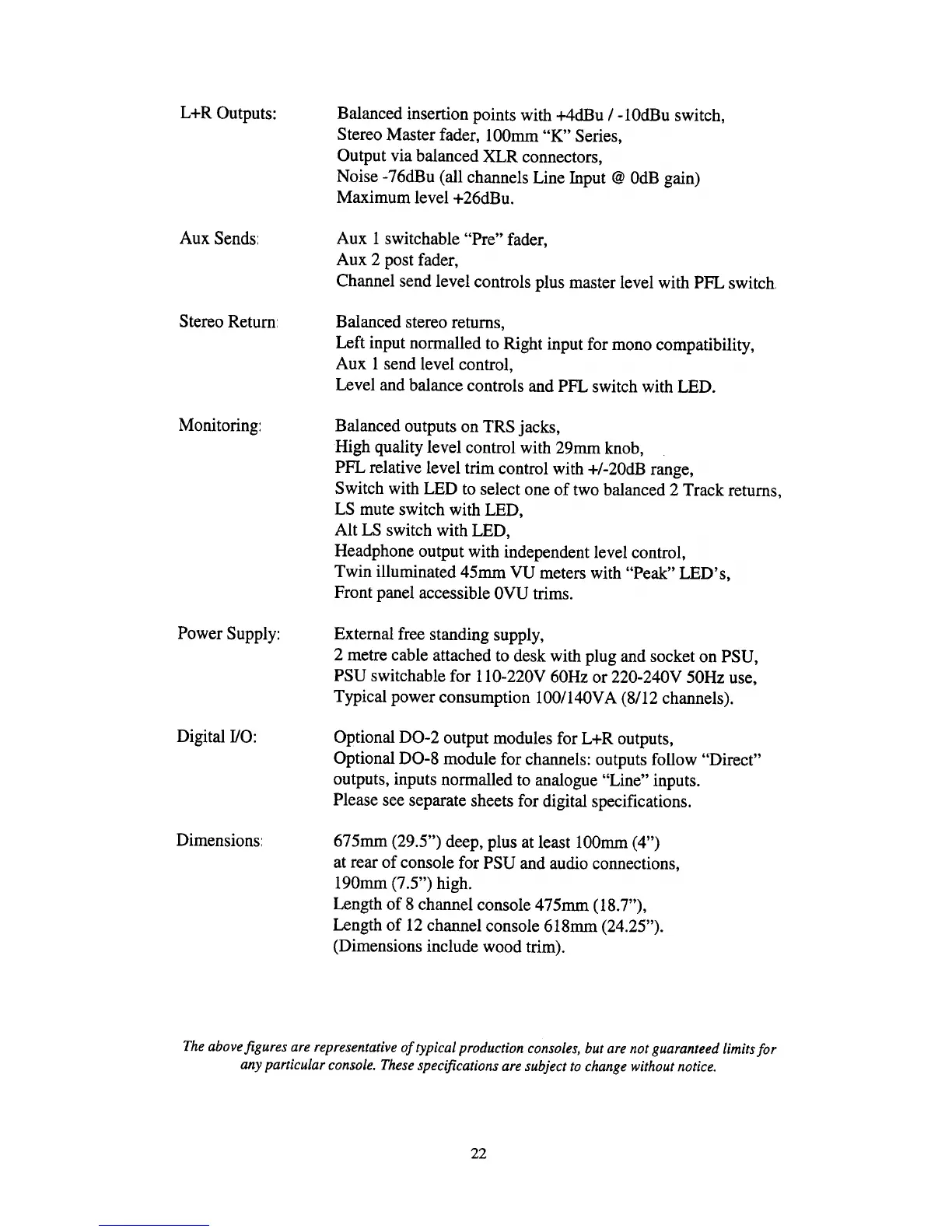

L+R Outputs:
Balanced insertion points with +4dBu / -IOdBu switch,
Stereo Master fader, IOOmm "K" Series,
Output via balanced XLR connectors,
Noise -76dBu (all channels Line Input @ OdB gain)
Maximum level +26dBu.
Aux Sends
Aux 1 switchable "Pre" fader,
Aux 2 post fader,
Channel send level controls plus master level with PFL switch,
Stereo Return:
Balanced stereo returns,
Left input normalled to Right input for mono compatibility,
Aux 1 send level control,
Level and balance controls and PFL switch with LED.
Monitoring:
Balanced outputs on TRS jacks,
High quality level control with 29mm knob,
PFL relative level trim control with +/-20dB range,
Switch with LED to select one of two balanced 2 Track returns,
LS mute switch with LED,
Alt LS switch with LED,
Headphone output with independent level control,
Twin illuminated 45mm VU meters with "Peak" LED's,
Front panel accessible OVU trims.
Power Supply:
External free standing supply,
2 metre cable attached to desk with plug and socket on PSU,
PSU switchable for 110-220V 60Hz or 220-240V 50Hz use,
Typical power consumption 100/140V A (8/12 channels).
Digital I/O:
Optional DO-2 output modules for L+R outputs,
Optional DO-8 module for channels: outputs follow "Direct"
outputs, inputs normalled to analogue "Line" inputs.
Please see separate sheets for digital specifications.
Dimensions:
675mm (29.5") deep, plus at least 100mm (4")
at rear of console for PSU and audio connections,
190mm (7.5") high.
Length of 8 channel console 475mm (18.7"),
Length of 12 channel console 618mm (24.25").
(Dimensions include wood trim).
The above figures are representative of typical production consoles, but are not guaranteed limits for
any particular console. These specifications are subject to change without notice.
22
