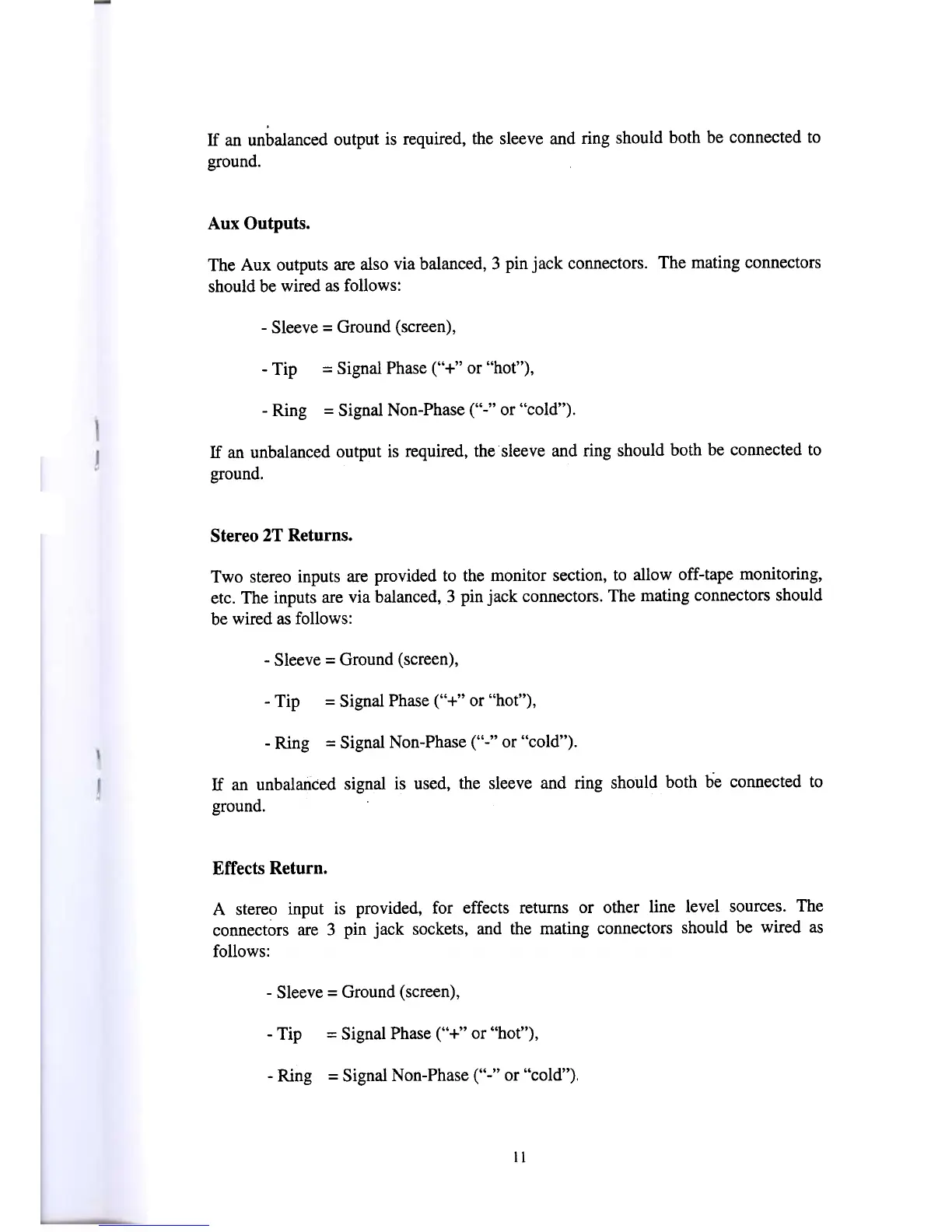

TL Audio M1 - Stereo Returns and Effects

If an unbalanced output is required, the sleeve and ring should both be connected to
ground.
Aux Outputs.
The Aux outputs are also via balanced, 3 pin jack connectors. The mating connectors
should be wired as follows:
- Sleeve = Ground (screen),
= Signal Phase ("+" or "hot"),
- Tip
= Signal Non-Phase ("-" or "cold").
- Ring
If an unbalanced output is required, the sleeve and ring should both be connected to
ground.
Stereo 2T Returns.
Two stereo inputs are provided to the monitor section, to allow off-tape monitoring,
etc. The inputs are via balanced, 3 pin jack connectors. The mating connectors should
be wired as follows:
- Sleeve = Ground (screen),
= Signal Phase ("+" or "hot"),
- Tip
= Signal Non-Phase ("-" or "cold").
- Ring
If an unbalanced signal is used, the sleeve and ring should both be connected to
ground.
Effects Return.
A stereo input is provided, for effects returns or other line level sources. The
connectors are 3 pin jack sockets, and the mating connectors should be wired as
follows:
- Sleeve = Ground (screen),
= Signal Phase ("+" or "hot"),
- Tip
= Signal Non-Phase ("-" or "cold").
- Ring
11
