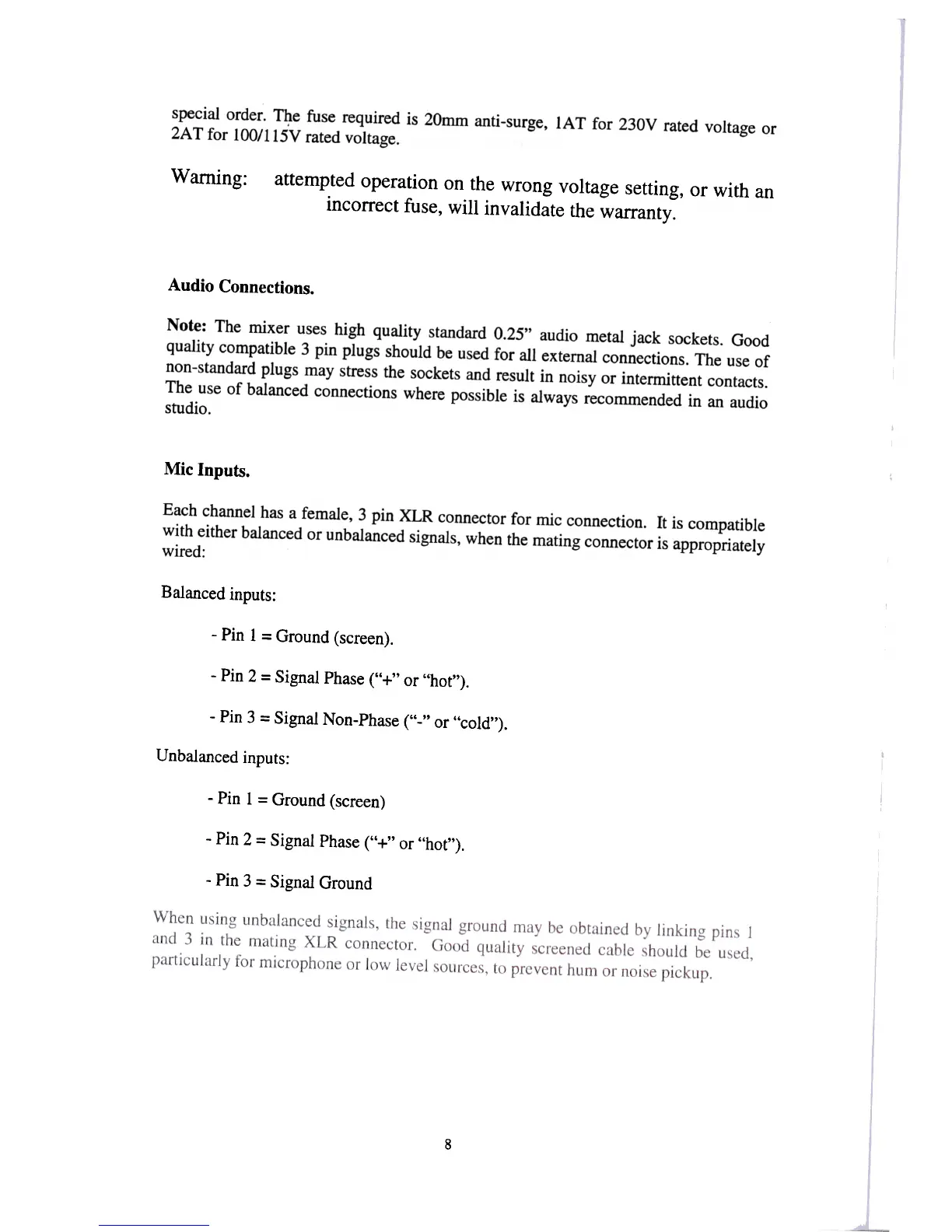

Warning:
attempted operation on the wrong voltage setting, or with an
incorrect fuse, will invalidate the warranty.
Audio Connections.
Mic Inputs.
Balanced inputs:
- Pin 1 = Ground (screen).
- Pin 2 = Signal Phase ("+" or "hot").
- Pin 3 = Signal Non-Phase ("-" or "cold").
Unbalanced inputs:
- Pin 1 = Ground (screen)
- Pin 2 = Signal Phase ("+" or "hot").
- Pin 3 = Signal Ground
