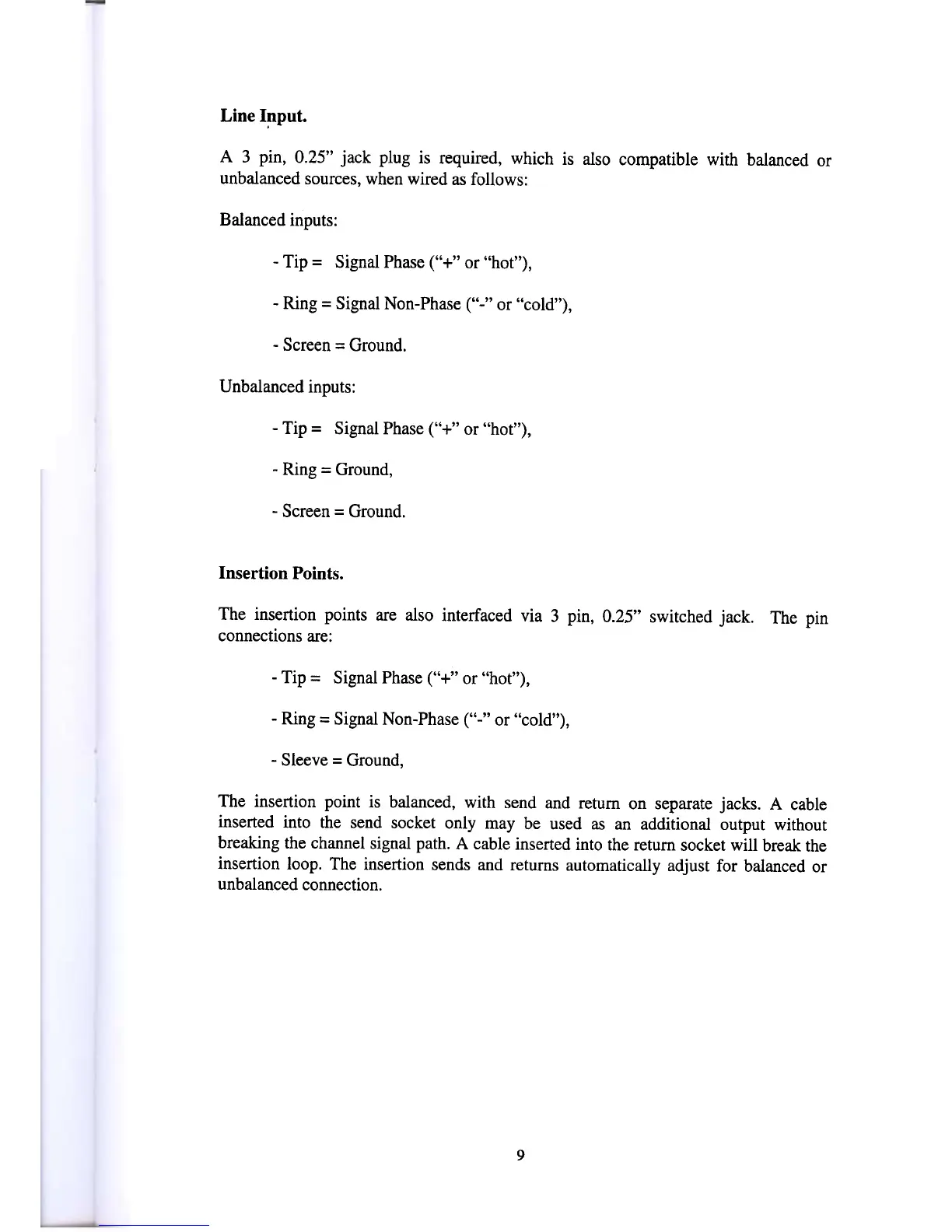

Line I~put.
A 3 pin, 0.25" jack plug is required, which is also compatible with balanced or
unbalanced sources, when wired as follows:
Balanced inputs:
- Tip = Signal Phase ("+" or "hot"),
- Ring = Signal Non-Phase ("-" or "cold"),
- Screen = Ground.
Unbalanced inputs:
- Tip = Signal Phase ("+" or "hot"),
- Ring = Ground,
- Screen = Ground.
Insertion Points.
The insertion points are also interfaced via 3 pin, 0.25" switched jack.
connections are:
The pin
- Tip = Signal Phase ("+" or "hot"),
- Ring = Signal Non-Phase C"-" or "cold"),
- Sleeve = Ground,
The insertion point is balanced, with send and return on separate jacks. A cable
inserted into the send socket only may be used as an additional output without
breaking the channel signal path. A cable inserted into the return socket will break the
insertion loop. The insertion sends and returns automatically adjust for balanced or
unbalanced connection.
