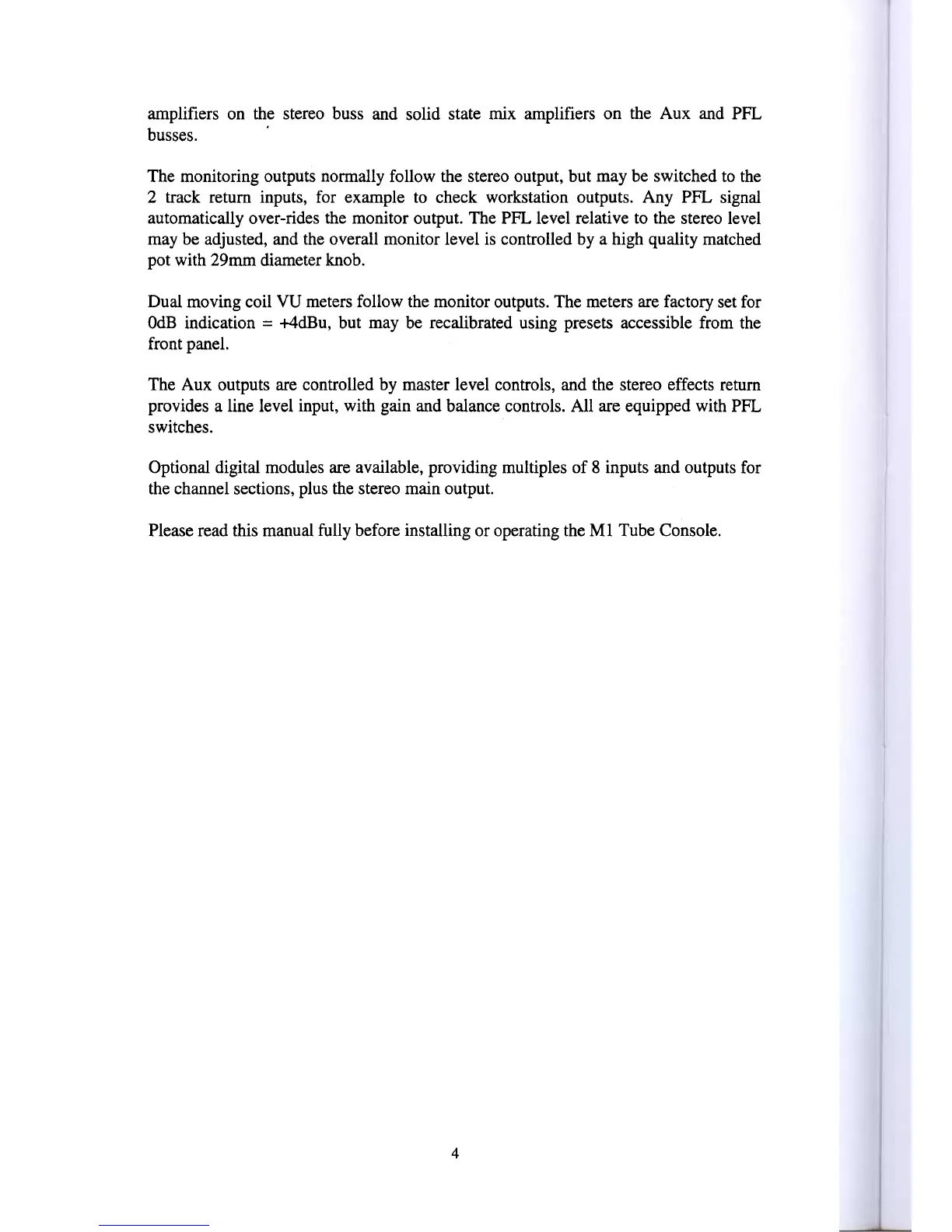

amplifiers on the stereo buss and solid state mix amplifiers on the Aux and PFL
busses. .
The monitoring outputs normally follow the stereo output, but may be switched to the
2 track return inputs, for example to check workstation outputs. Any PFL signal
automatically over-rides the monitor output. The PFL level relative to the stereo level
may be adjusted, and the overall monitor level is controlled by a high quality matched
pot with 29mm diameter knob.
Dual moving coil VU meters follow the monitor outputs. The meters are factory set for
OdB indication = +4dBu, but may be recalibrated using presets accessible from the
front panel.
The Aux outputs are controlled by master level controls, and the stereo effects return
provides a line level input, with gain and balance controls. All are equipped with PFL
switches.
Optional digital modules are available, providing multiples of 8 inputs and outputs for
the channel sections, plus the stereo main output.
Please read this manual fully before installing or operating the Ml Tube Console.
