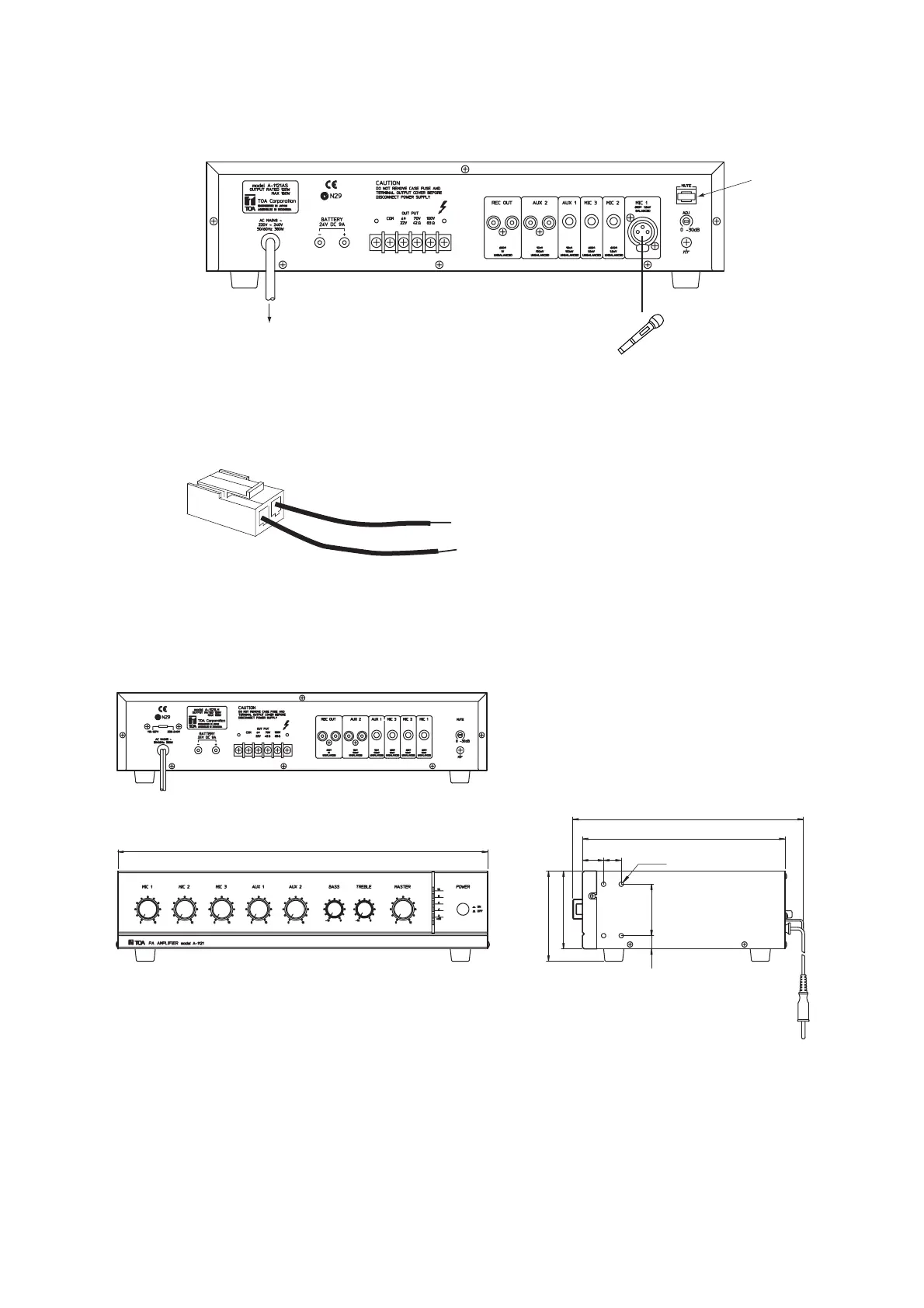

● S version
(Only the functions that differ from those of the ER and UK versions are described here. For connections not described,
refer to the connections of other versions.)
AC mains
Microphone
(600 Ω, balanced)
*2
*2 Muting terminal
Connect the supplied connector plug with lead wires to the muting connector on the rear panel, and the lead wires to the
muting switch. Turning on (shorting) the muting switch allows MIC 1 input to take precedence, muting signals of other
inputs (MIC 1 and 2, and AUX 1 and 2 ).
Muting connector plug
7. DIMENSIONAL DIAGRAM
420
262
230
24 20
8-M4
103
88.4
58.4
15
(unit: mm)
