8. CONNECTION EXAMPLES

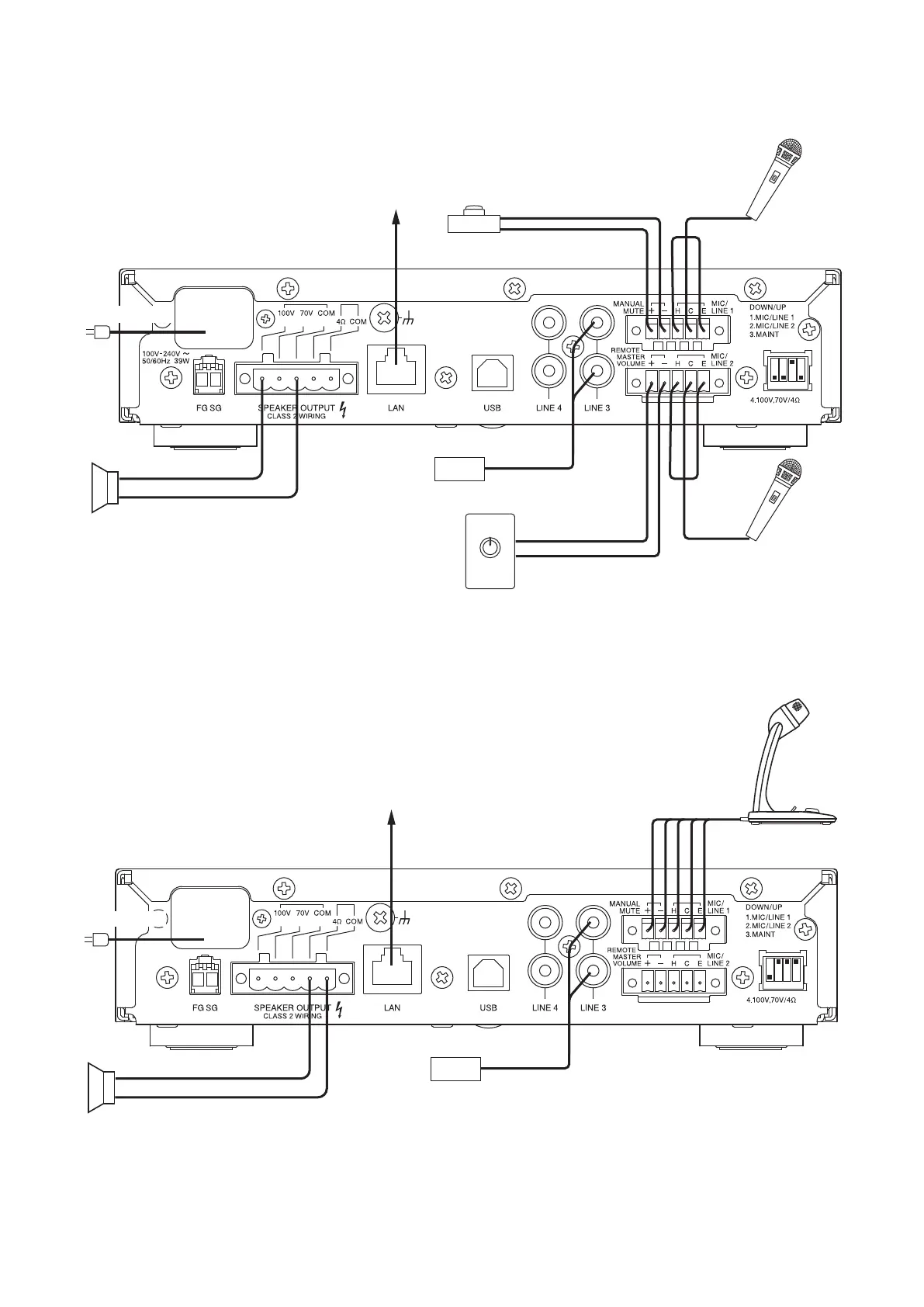

[Example 1]
1 2 3 4
CD
To Lan
Push switch
Volume control
Microphone
Microphone
To AC Mains
High-impedance speaker
(100 V Line)
A-5006/5012
[Example 2]
1 2 3 4
CD
Microphone with
a contact
A-5006/5012
To Lan
To AC Mains
Low-impedance speaker
