Toa A-901A User Manual

(OPTION)
The TOA PLUG-IN MODULES are suitable for TOA 900 SERIES
MIXER POWER AMPLIFIERS A-901A, A-903A, A-906A, and
A-912A MIXER PREAMPLIFIER M-900A, and POWER AMPLI-
FIERS P-906A, P-912A and P-924. Owing to wide selection of
MODULES, the desired applications will be obtained. The various
types of connectors can also meet the needs of equipment to be
connected. MICROPHONE PREAMPLIFIER H-01 series, H-21 and
H-31 incorporates controls for high-cut, low-cut and gain, H-02
series, H-22, H-32 and H-03 series controls for low-cut and gain.
A gain control is built in MAG. PHONO PREAMPLIFIERS E-01
and E-11 series, AUXILIARY PREAMPLIFIERS X-01 and X-1 1
series and X-21, PAGING INPUT I-01 and LINE OUTPUT T-01
series. T-01 series is an output module with transformer, serving
as a line output for recording, etc..
PAGING INPUT I-01 is specially designed to associate with TOA
INTERCOM SYSTEMS. It accepts paging signals from the intercom
station.
A group of special signal generating modules is also available for
catching-attention before announcement and testing within the total
system. ALL PLUG-IN MODULES have handles on their front for
easy insertion and removal.
Features:
1. Wide dynamic range
2. Low noise and distorition
3. Wide frequency response
4. Built-in remote volume control circuit (available for models
having 20's in its model number such as H-21)
5. Built-in muting circuit to mute incoming signal when MUTE
TERMINAL is grounded, (available for modules having 10's in
its model number such as X-11)
6. Built-in muting circuit to deliver output signal when MUTE
TERMINAL is grounded, (available for modules having 30's in
its model number such as H-31)
7. Built-in signal activated muting function (L-41)
8. Presettable gain control (except for B-01 , B-11 , L-01 and L-11)
9. Microphone modules furnished with tone controls (H-01 , H-02,
H-21 , H-22, H-31, H-32 and H-03)
-5-

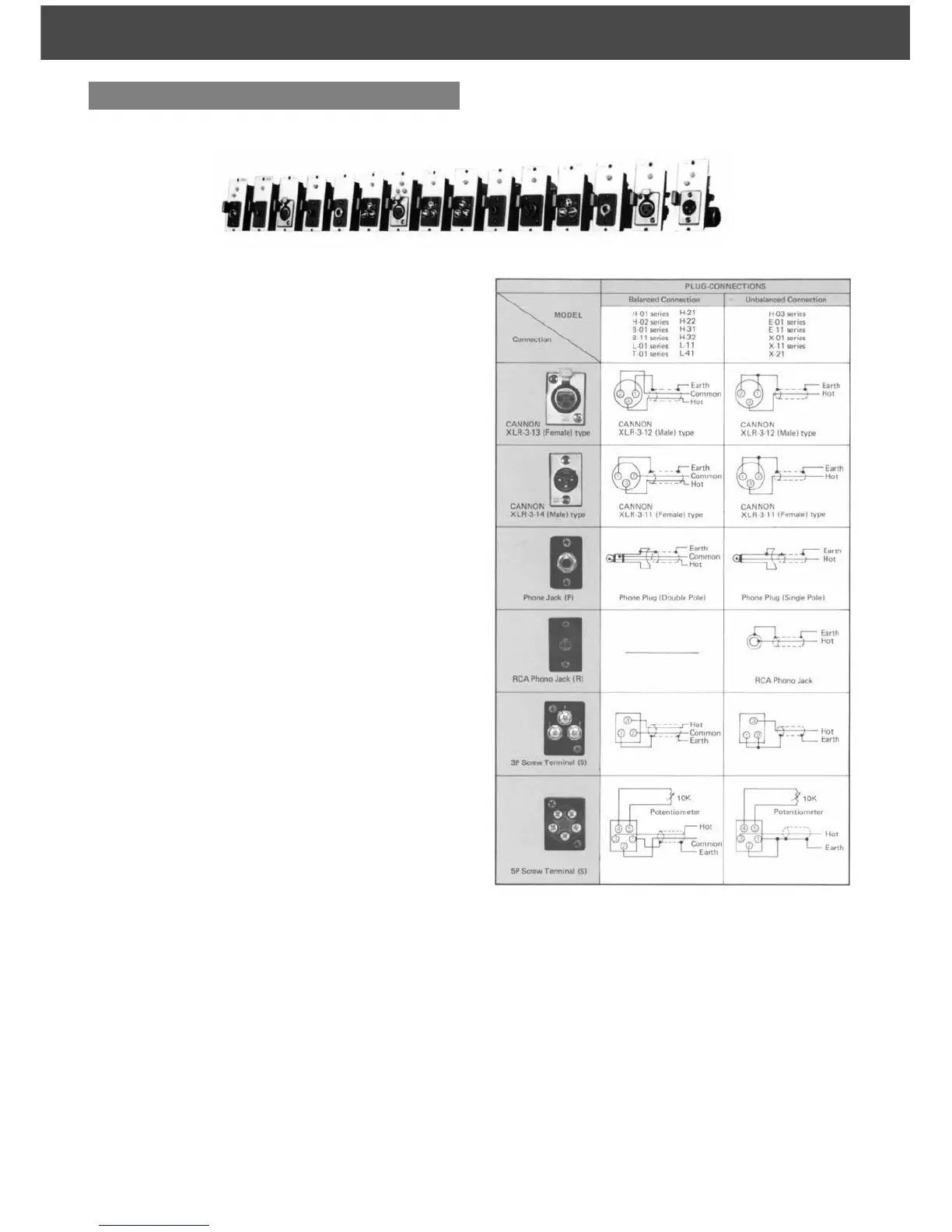

(INPUT CONNECTIONS, T-01 OUTPUT CONNECTION)
Plug-in Modules and Accessories
TOA NEW 900 SERIES

Toa A-901A Specifications

Power

output power	10 watts RMS
power consumption	30 watts
voltage	AC 120 volts, 60 Hz

Operating Environment

temperature range	-10°C to +60°C (12°F to 140°F)
frequency response	20—20, 000 Hz, ± 1 dB
signal-to-noise ratio	82 dB

Weight and Dimensions

height	3.98" (101 mm)
width	9.84" (250 mm)
depth	9.65" (245 mm)
weight	8.6 lbs (3.9 kg)
