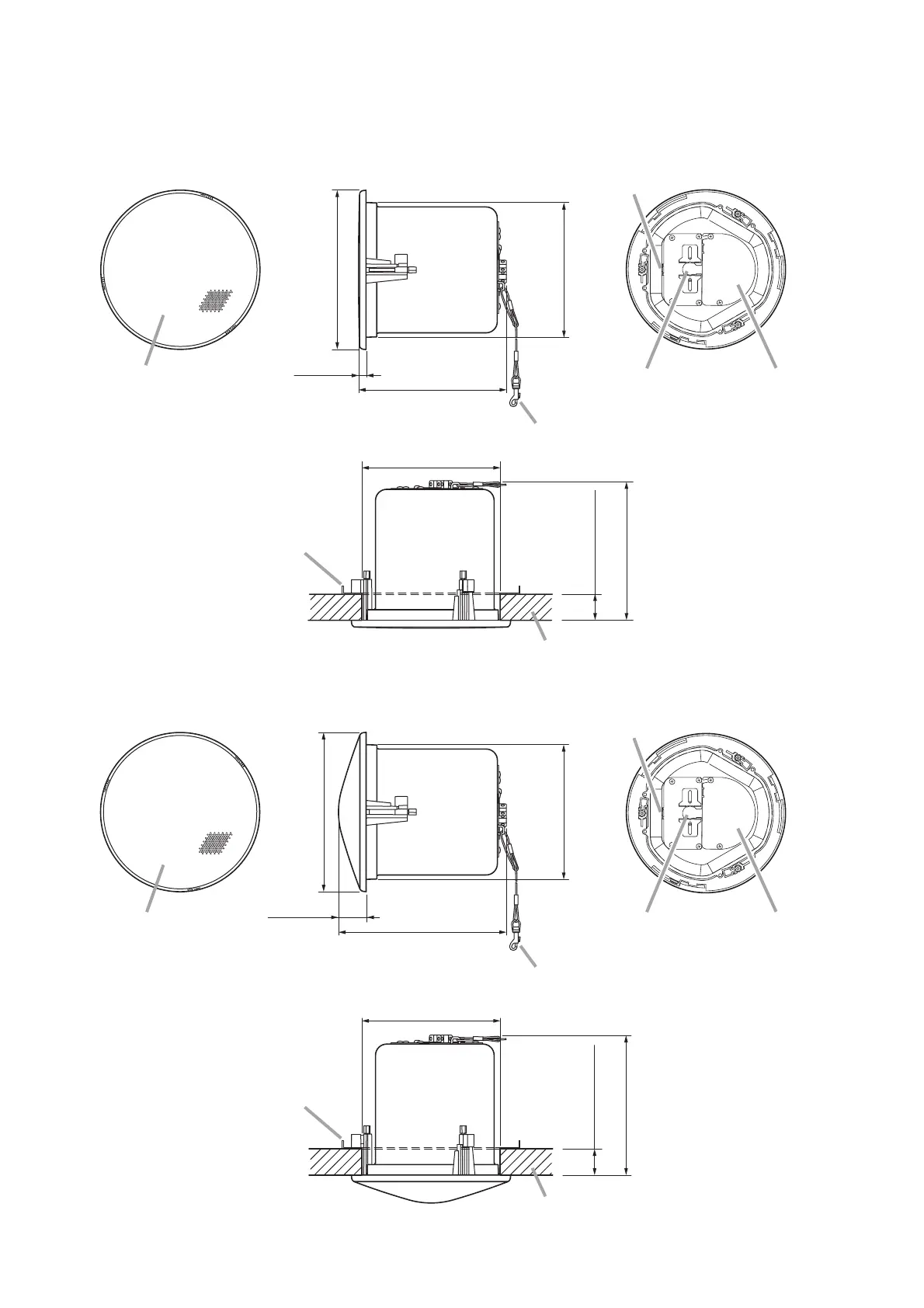

4. NOMENCLATURE AND DIMENSIONS
Ceiling tile
Ceiling tile
ø230 (9
1
/16)
12 (
15
/32)
209 (8
15
/64)
Mounting hole: ø200 (7
7
/8)
Mounting hole: ø200 (7
7
/8)
ø195 (7
43
/64)
Safety wire (accessory)
Length: Approx. 600 (23
5
/8")
Front grille (accessory)
Front grille (accessory)
Max. 37 (1
29
/64)
Max. 37 (1
29
/64)
Max. 202 (7
61
/64)
[Front]
[Ceiling mounting]
[Ceiling mounting]
[Side]
• F-2322CU2
Unit: mm (inches)
[Side] [Rear][Front]
ø230 (9
1
/16)
41 (1
39
/64)
238 (9
3
/8)
ø195 (7
43
/64)
Safety wire (accessory)
Length: Approx. 600 (23
5
/8")
Max. 202 (7
61
/64)
• F-2352CU2
Tile bridge
(accessory)
Tile bridge
(accessory)
Safety wire hook
Choke
bracket
Connector cover
[Rear]
Safety wire hook
Choke
bracket
Connector cover
