Toa F-2322CU2 User Manual

6
Before mounting the speaker, check the ceiling structure is of drop ceiling with 2-foot standard ceiling tiles.
5. MOUNTING HARDWARE INSTALLATION

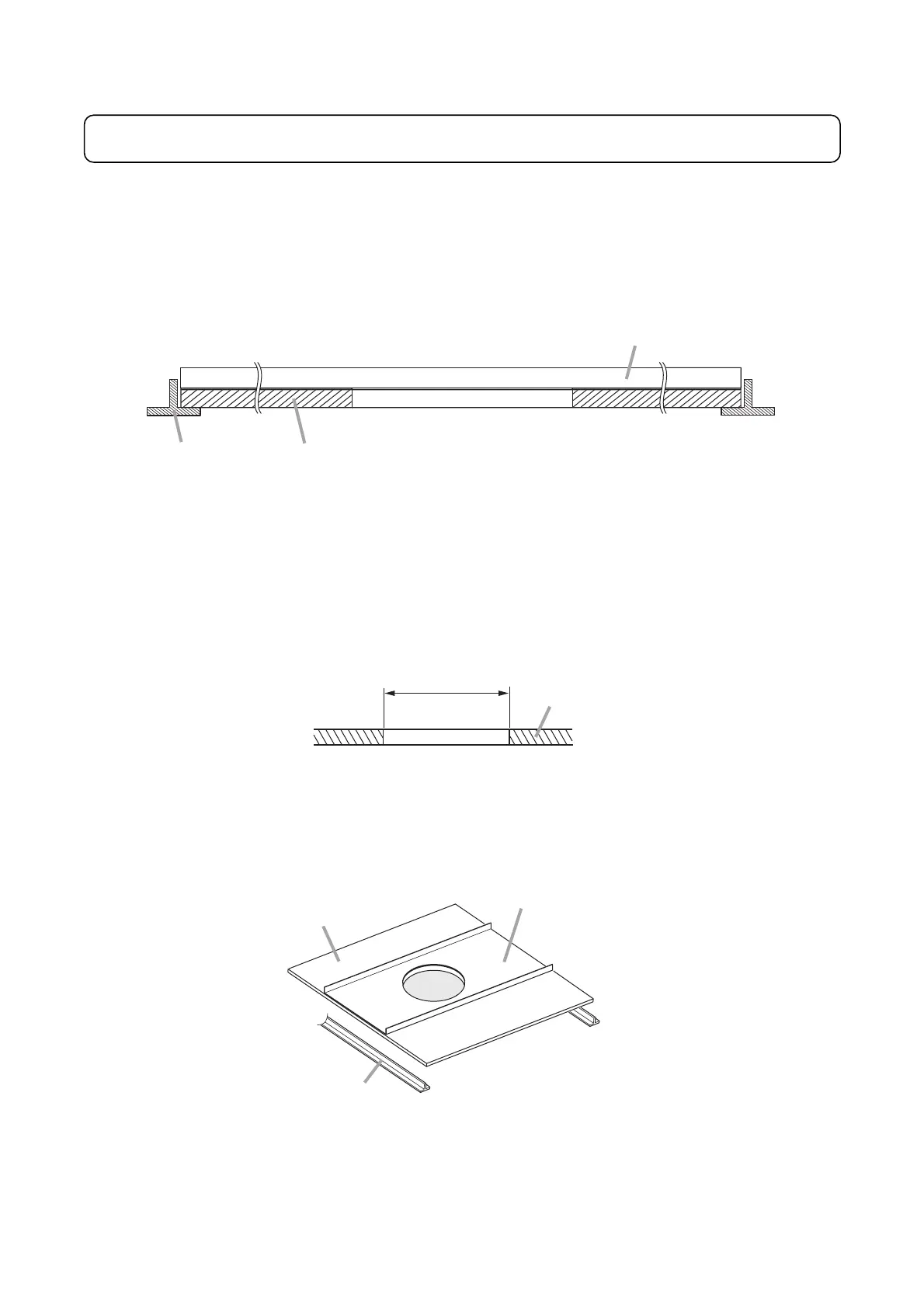

[Installation view on Drop Ceilings]
Caution
Set the tile bridge so that both ends fit securely into the T-grids, even if the ceiling tile accidentally falls off.
Ceiling tileT-grid
Tile bridge (accessory)
Ceiling tile
ø200 ±5 mm
(7
7
/8 ±
13
/64")
[Installation procedures]
Step 1. Cut a ø200 mm (7
7
/8") hole in the ceiling.
Use the supplied paper pattern to position and trace the hole.
Step 2. Place the supplied tile bridge on the 2-foot tile as shown below.
T-grid
2-foot tile
Tile bridge (accessory)
