6.2. Wiring with Naked Cables

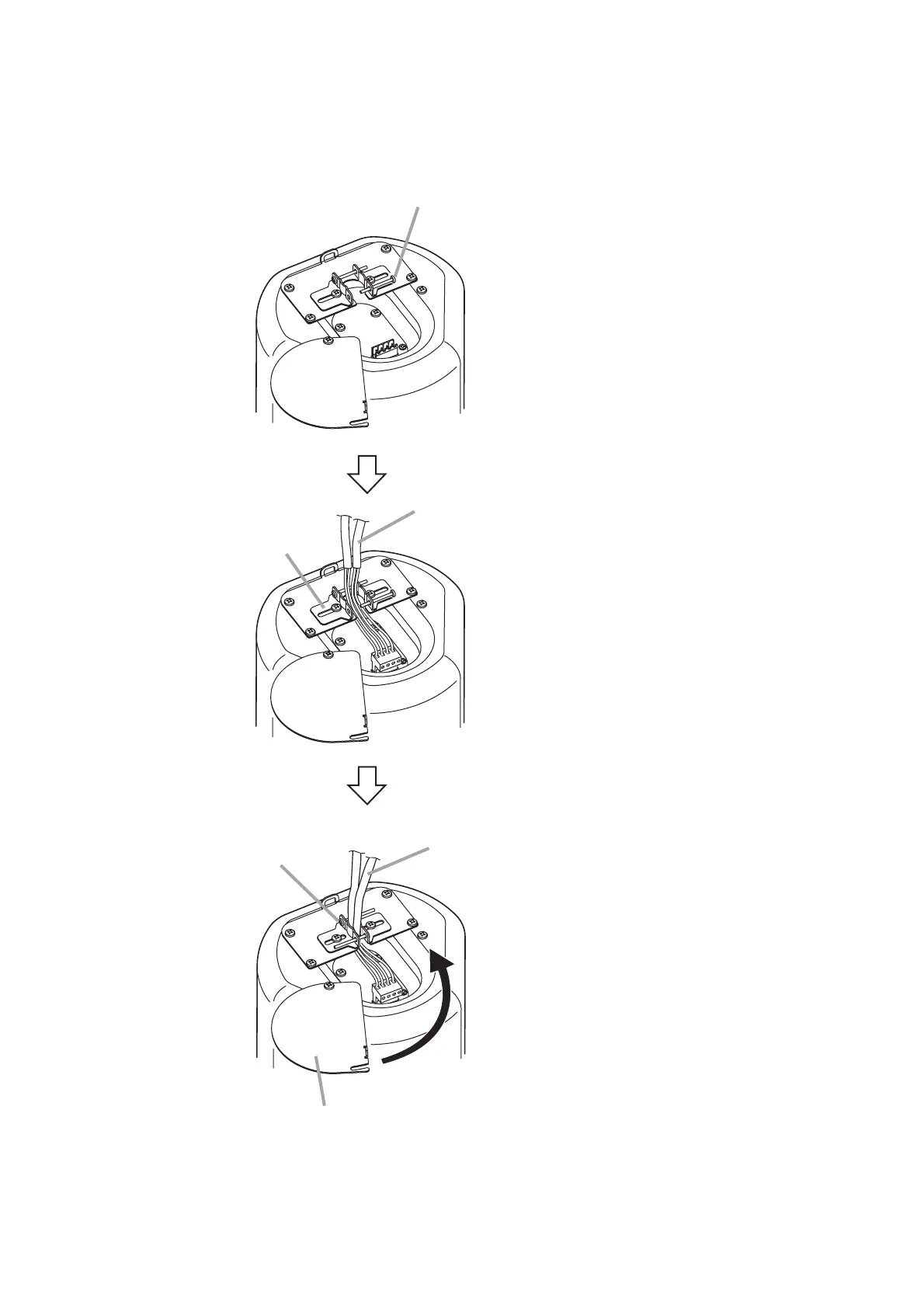

Loosen the screw to allow the speaker cable to pass through.
Choke bracket
Retighten the screw to fix
the speaker cable.
Note
Ensure that the speaker cable is securely fixed.
After completing the speaker cable connection, turn the connector cover
in the direction indicated by the arrow, and fix the cover with 2 screws.
Connector cover
Plug the wired input connector into the speaker's socket,
then pull the speaker cable from the choke bracket.
(For wiring the input connector, refer to p. 10.)
