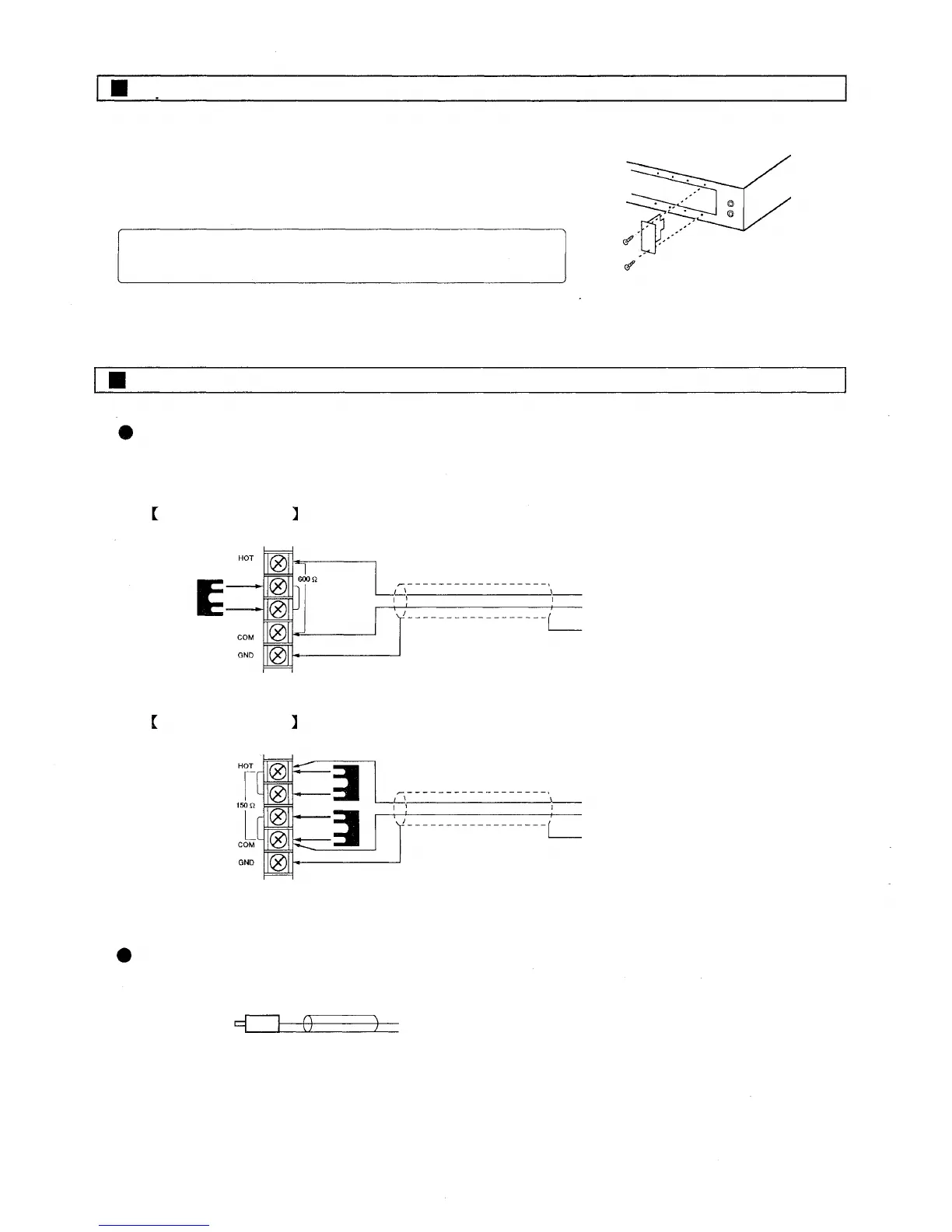

Toa M-900MK2 - Input and Output Connections; Module Input Ports; Output Terminal Connections

Input Connections
These are eight INPUT PORTS for PLUG-IN MODULES.
Select the desired modules for each application. Plug the modules
into the INPUT PORTS.
Slide them between the guide rails and secure with two screws.
CAUTION : Modules should not be inserted or removed while
the amplifier is turned on.
Connect power amplifier(s) to the output terminal of M-900MK2.
Select 600-ohm or 150-ohm connection, provided at the output terminal to match the input impedance of
amplifier(s).
600-ohm connection
150-ohm connection
AUX Out
For this connection, use RCA phone jack with shielded cable.
Hot
Earth
External equipment such as tape recorder, etc.
Cover unoccupied INPUT PORTS with blank panels. Secure blank panels with screws.
Hot
Common
Earth
Hot
Common
Earth
Output Connections
