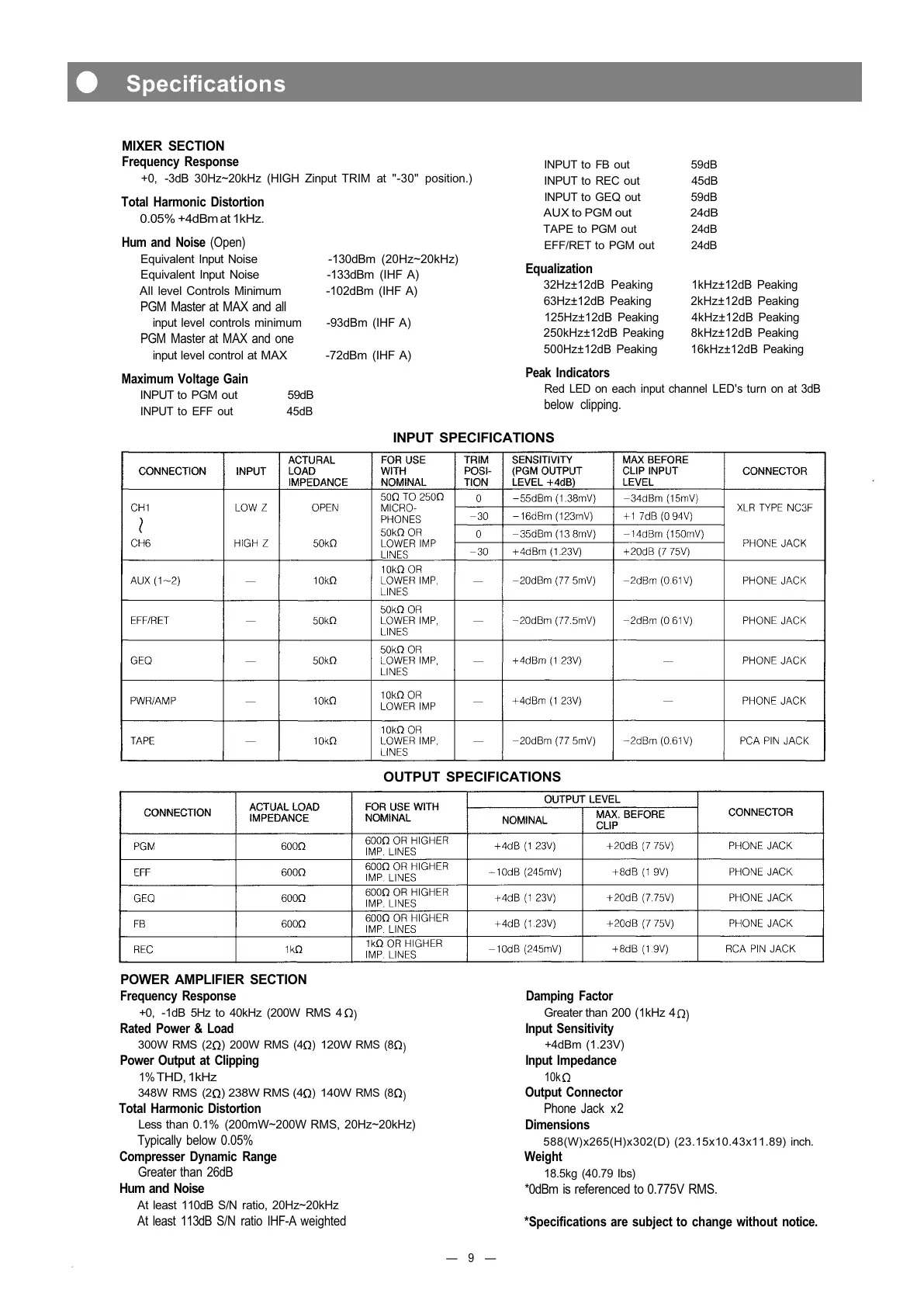

MIXER SECTION
Frequency Response
+0, -3dB 30Hz~20kHz (HIGH Zinput TRIM at "-30" position.)
Total Harmonic Distortion
0.05% +4dBm at 1kHz.
Hum and Noise (Open)
Equivalent Input Noise -130dBm (20Hz~20kHz)
Equivalent Input Noise -133dBm (IHF A)
All level Controls Minimum -102dBm (IHF A)
PGM Master at MAX and all
input level controls minimum -93dBm (IHF A)
PGM Master at MAX and one
input level control at MAX -72dBm (IHF A)
Maximum Voltage Gain
INPUT to PGM out 59dB
INPUT to EFF out 45dB
INPUT to FB out 59dB
INPUT to REC out 45dB
INPUT to GEQ out 59dB
AUX to PGM out 24dB
TAPE to PGM out 24dB
EFF/RET to PGM out 24dB
Equalization
32Hz±12dB Peaking 1kHz±12dB Peaking
63Hz±12dB Peaking 2kHz±12dB Peaking
125Hz±12dB Peaking 4kHz±12dB Peaking
250kHz±12dB Peaking 8kHz±12dB Peaking
500Hz±12dB Peaking 16kHz±12dB Peaking
Peak Indicators
Red LED on each input channel LED's turn on at 3dB
below clipping.
INPUT SPECIFICATIONS
OUTPUT SPECIFICATIONS
POWER AMPLIFIER SECTION
Frequency Response
+0, -1dB 5Hz to 40kHz (200W RMS 4
)
Rated Power & Load
300W RMS (2
) 200W RMS (4
)
120W
RMS (8
)
Power Output at Clipping
1%
THD, 1kHz
348W RMS (2
) 238W RMS (4
)
140W
RMS (8
)
Total Harmonic Distortion
Less than 0.1% (200mW~200W RMS, 20Hz~20kHz)
Typically below 0.05%
Compresser Dynamic Range
Greater than 26dB
Hum and Noise
At least 110dB S/N ratio, 20Hz~20kHz
At least 113dB S/N ratio IHF-A weighted
Damping Factor
Greater than 200 (1kHz 4
Input Sensitivity
+4dBm (1.23V)
Input Impedance
10k
Output Connector
Phone Jack x2
Dimensions
588(W)x265(H)x302(D) (23.15x10.43x11.89) inch.
Weight
18.5kg (40.79 Ibs)
*0dBm is referenced to 0.775V RMS.
*Specifications are subject to change without notice.
)
— 9 —
Specification
