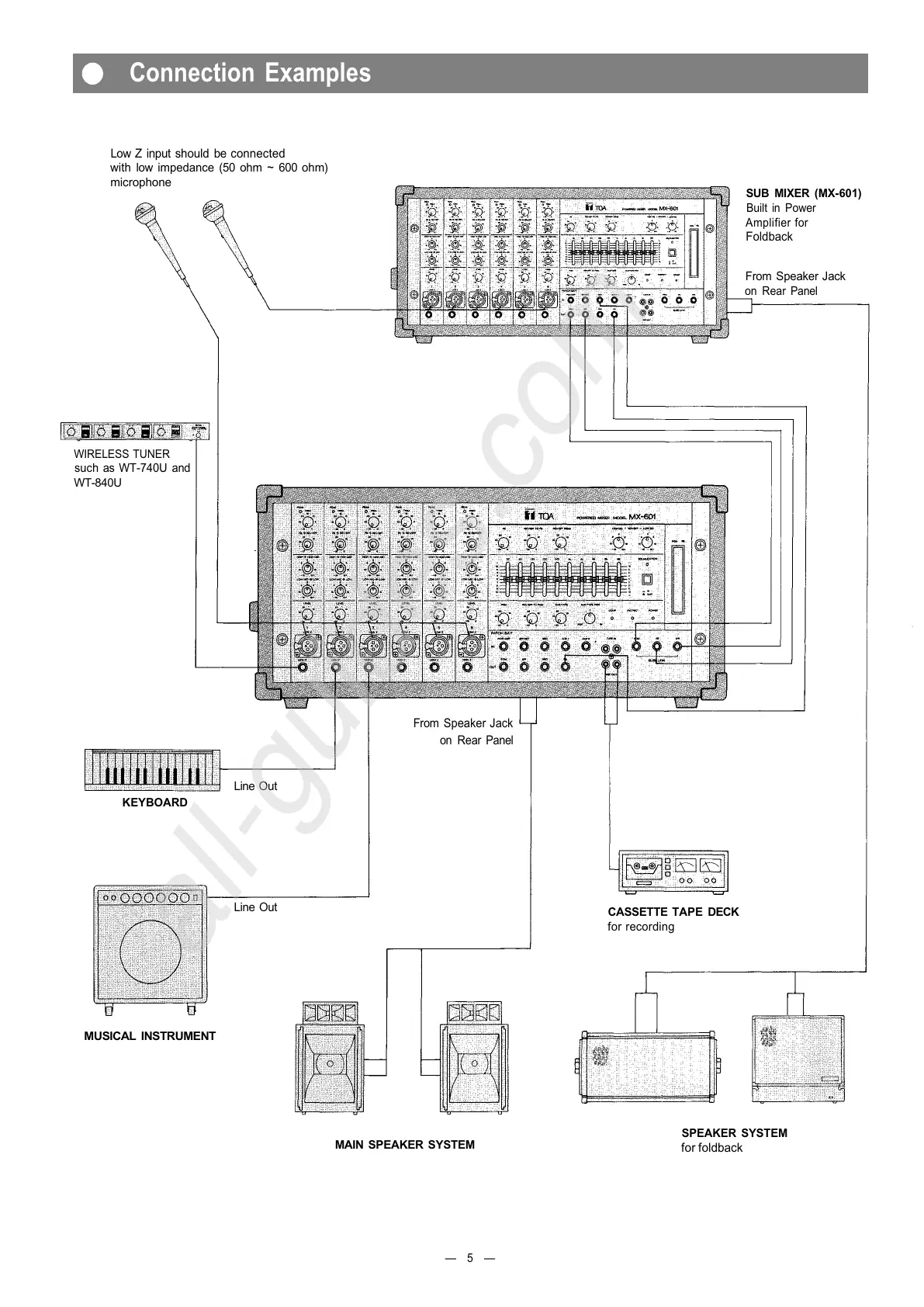

Toa MX-601 - Connection Examples; Microphone Connections; Instrument and Tuner Connections; System and Recording Connections

Low Z input should be connected
with low impedance (50 ohm ~ 600 ohm)
microphone
SUB MIXER (MX-601)
Built in Power
Amplifier for
Foldback
From Speaker Jack
on Rear Panel
WIRELESS TUNER
such as WT-740U and
WT-840U
From Speaker Jack
on Rear Panel
KEYBOARD
Line Out
MUSICAL INSTRUMENT
Line Out
CASSETTE TAPE DECK
for recording
MAIN SPEAKER SYSTEM
SPEAKER SYSTEM
for foldback
— 5 —
Connection Examples
