Toa MX-601 - Precautions; XLR Connector Wiring; Manual Description Conventions

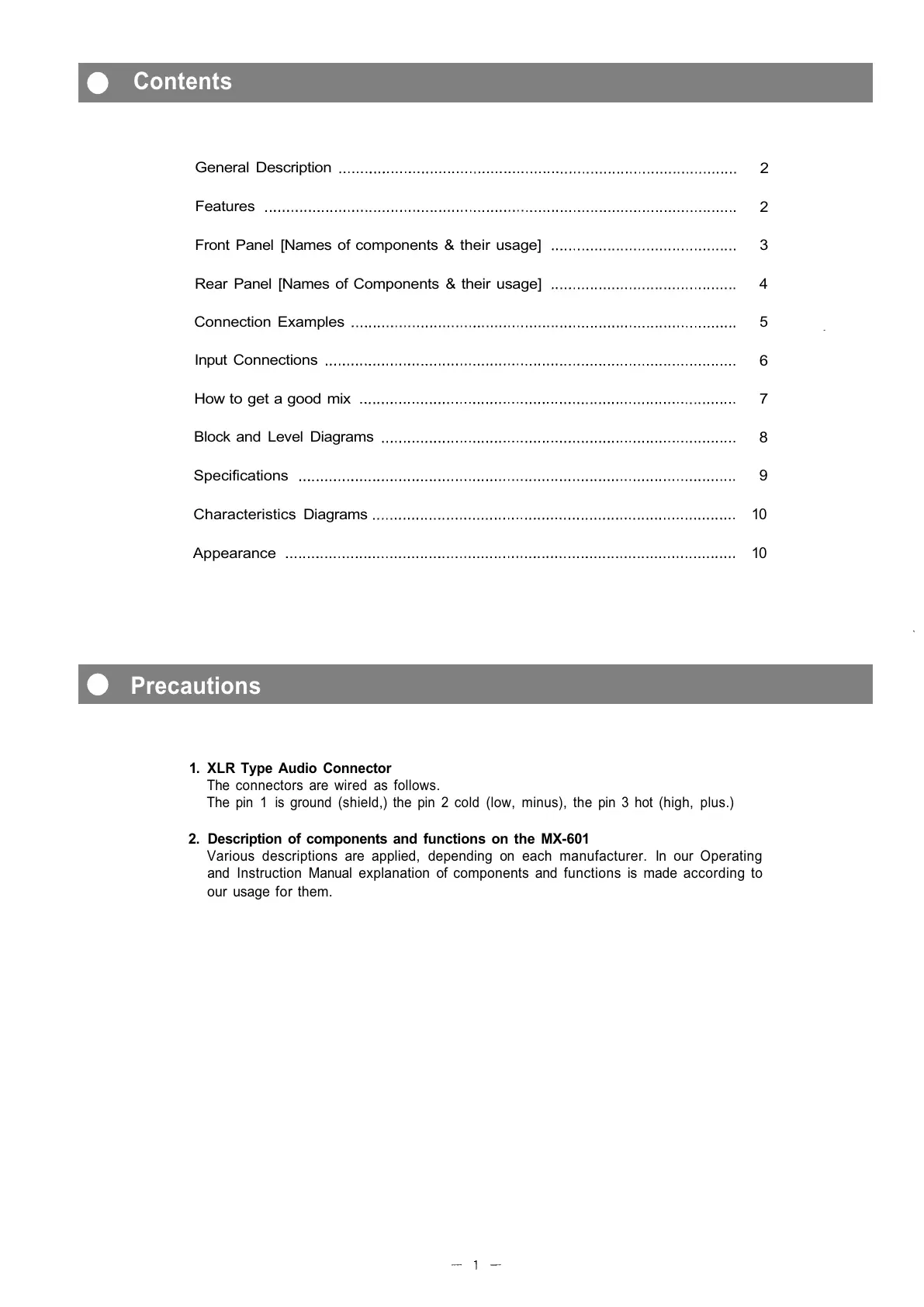

General Description
Features
Front Panel [Names of components & their usage]
Rear Panel [Names of Components & their usage]
Connection Examples
Input Connections
How to get a good mix
Block and Level Diagrams
Specifications
Characteristics Diagrams
Appearance
1. XLR Type Audio Connector
The connectors are wired as follows.
The pin 1 is ground (shield,) the pin 2 cold (low, minus), the pin 3 hot (high, plus.)
2. Description of components and functions on the MX-601
Various descriptions are applied, depending on each manufacturer. In our Operating
and Instruction Manual explanation of components and functions is made according to
our usage for them.
2
2
3
4
5
6
7
8
9
10
10
Contents
Precautions
