The MX-601 is a compact self-powered mixer with a wide array of sophisticated features —
many of them unavailable on any competitive models. An examination of performance levels
and specifications will reveal the truly professional nature of the MX-601. The rugged construc-
tion and specialized packaging ensure optimum performance and reliability under even the
most demanding "on the road" applications.
The MX-601 features 6 input channels; 1 program, 1 foldback, and 1 effects output. The internal
power amplifier is rated at 120 watts into 8 ohms, 200 watts into 4 ohms, and 300 watts into 2
ohms load.
Each input channel features an electronically balanced XLR connector, and a high impedance
unbalanced 1/4" phone jack. An input trim control is provided to accommodate a wide range of
input source levels. A peak indicator LED detects excessive input signal (either pre or post EQ),
aiding in proper settings of the trim control to avoid input clipping.
Each channel also features 4-band equalization, a "pre" foldback send, a "post" reverb/effects
send, and program level control.
The master control section features a one-octave (10-band) graphic equalizer, high and low
equalizer control of an internal reverberation unit, auxiliary input controls, LED bargraph output
meters, and a full patch bay with our exclusive Bus-Link capability. All master level controls, and
effects return to program and foldback busses are also contained in this section.
1. Six Input channels
2. 300 watts RMS (@ 2 ohms)
3. 10-band graphic equalizer w/bypass switch
4. Auto Comp compression circuitry w/indicator
5. Built-in spring reverberation unit
6. LED bargraph metering
Each Channel
1. Input trim control w/LED peak indicator
2. Pre EQ foldback send
3. 4-band EQ
4. Post effects send
5. Lo-Z balanced XLR input
6. Hi-Z unbalanced 1/4" input
7. Power amp protection circuitry w/indicator
8. Complete patch bay w/buss link
9. AUX and TAPE inputs w/pan and level controls
10. Reverb-effects return to PGM and FB
11. Independent foldback mix
12. Input Channels 5 and 6 have electronically balanced
XLR mic input connector with switchable 40 volts
phantom power

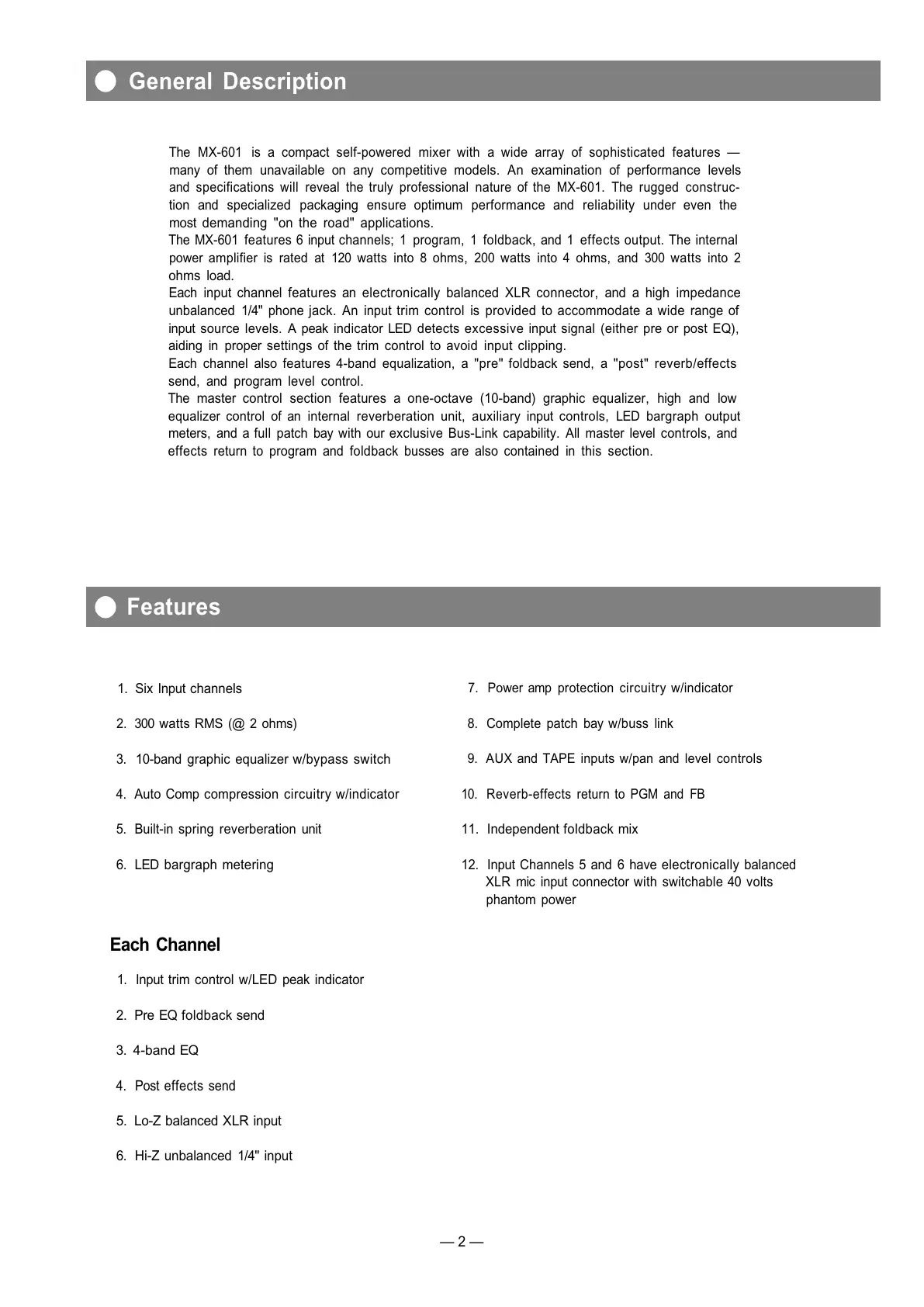

General Description
Features
— 2 —
