Toa NX-100 User Manual

9
MIC LINE
VOLUME
INPUT
24V
DC INPUT
AUDIO OUTPUT
FG
76
76
AUDIO INPUT
8C54321
C854321
CONTACT OUTPUT
CONTACT INPUT
RS-232C
200mA
10/100M
HCE
HCE
AC ADAPTER
24V 200mA
DC INPUT
Open collector output
Withstand voltage: 30 V DC
Control current: 50 mA maximum
Pulse width: 1 s (when in Latch mode)
[Control Output Specifications]
No-voltage "make" contact input
Short circuit current: 10 mA
Open voltage: 12 V
Pulse width: Over 50 ms
[Control Input Specifications]
To other unit's control input
768C54231
To other unit's
control output
76C854321

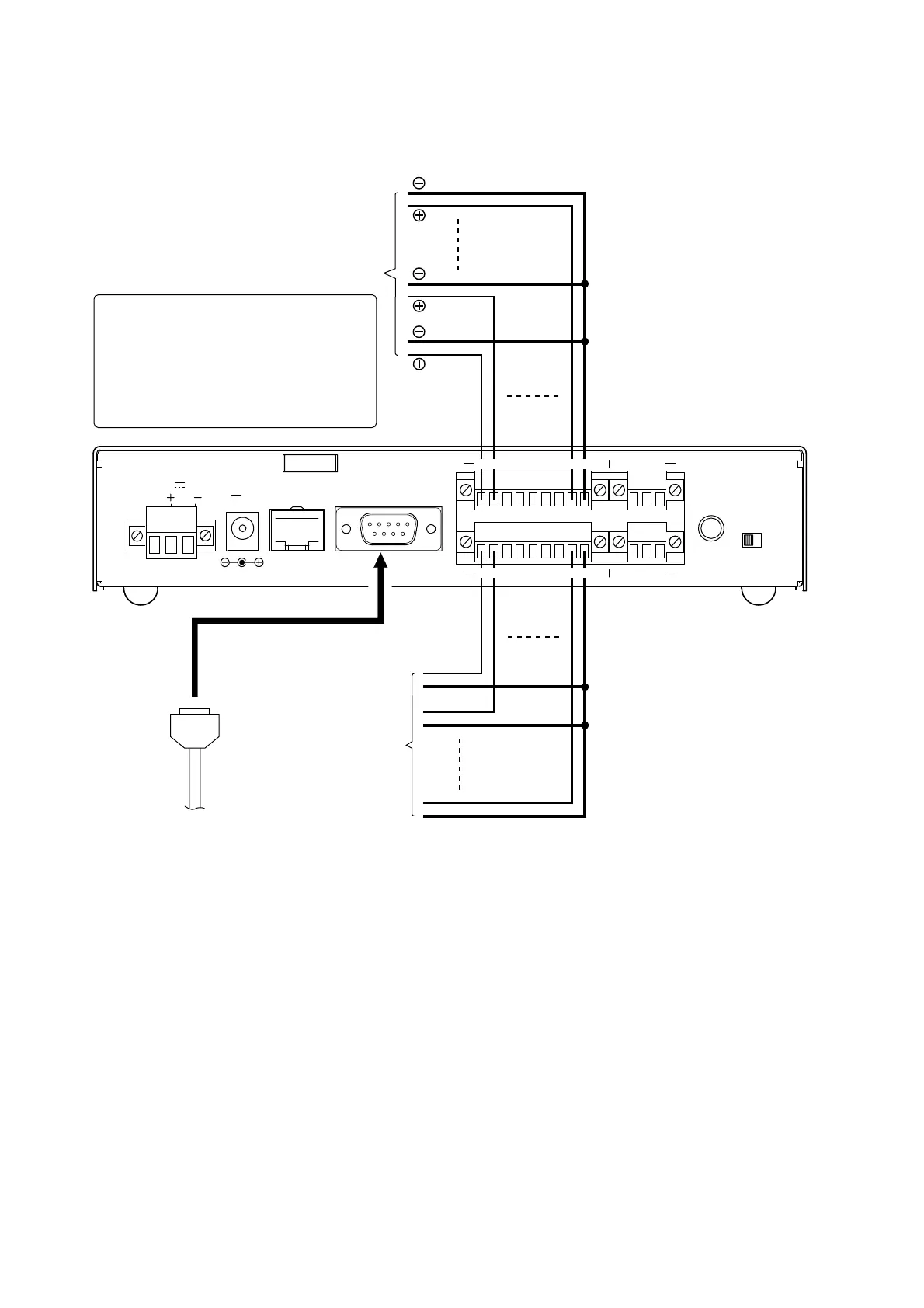

• Control Output Terminal Connections
• RS-232C Interface Connections
The NX-100 can be used to control
such RS-232C components as DTE
and DCE components over a network.
Use a "straight" cable fitted with a 9-pin
D-sub connector when connecting to
DTE components such as PCs.
Use a "cross" cable fitted with a 9-pin
D-sub connector for connecting to DCE
components such as modems.
Caution
Connect the control input terminals of all other
connected units using 2 control lines.
• Connections to the Control Input Terminal
Connect the control output terminals of all other
connected units using 2 control lines.
Be sure to connect only these control lines
to other unit's control input terminals.
Connecting in parallel with control lines
from other equipment may cause the unit
to malfunction.
Tips
• Refer to p. 10, CONNECTIONS TO TERMINAL PLUGS, for control terminal connection procedures.
• When not using the RS-232C interface, place the supplied RS-232C cover over the terminal to protect it
against dust.
