Toa NX-100 User Manual

8

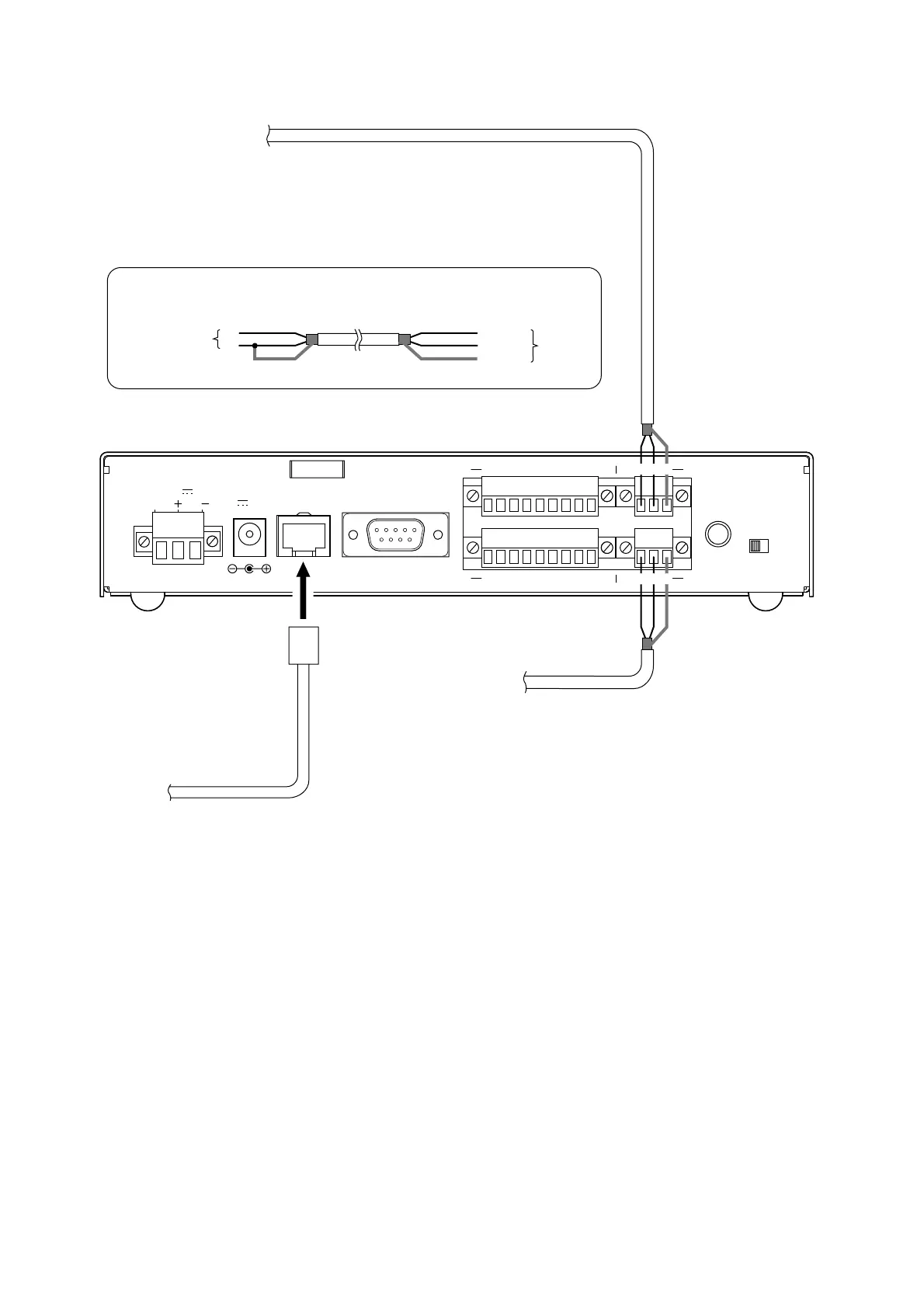

9. TERMINAL CONNECTIONS
MIC LINE
VOLUME
INPUT
24V
DC INPUT
AUDIO OUTPUT
FG
76
76
AUDIO INPUT
8C54321
C854321
CONTACT OUTPUT
CONTACT INPUT
RS-232C
200mA
10/100M
HCE
HCE
AC ADAPTER
24V 200mA
DC INPUT
• Audio Input Terminal Connections
Connect the microphone or other sound
sources using 2-core shielded cable.
• Audio Output Terminal Connections
Connect the mixer, amplifier, etc. using 2-core
shielded cable.
When the connected unit has an unbalanced input, make the
connections as follows:
• Network Connections
To microphone or
other sound sources
NX-100
Connected Unit
To mixer, amplifier, etc.
H C E
H
H
E
Hot (H)
Cold (C)
Earth (E)
Shield Shield
C E
The NX-100 automatically distinguishes between 10BASE-T and 100BASE-TX networks, and
establishes a connection. For this connection, use a "straight" UTP Category 5 LAN (Ethernet) cable
fitted with an RJ-45 connector.
Tip
Refer to p. 10, CONNECTIONS TO TERMINAL PLUGS, for audio terminal connection procedures.
