Toa P-150D - Performance Graphs (P-75 D)

– 7 –

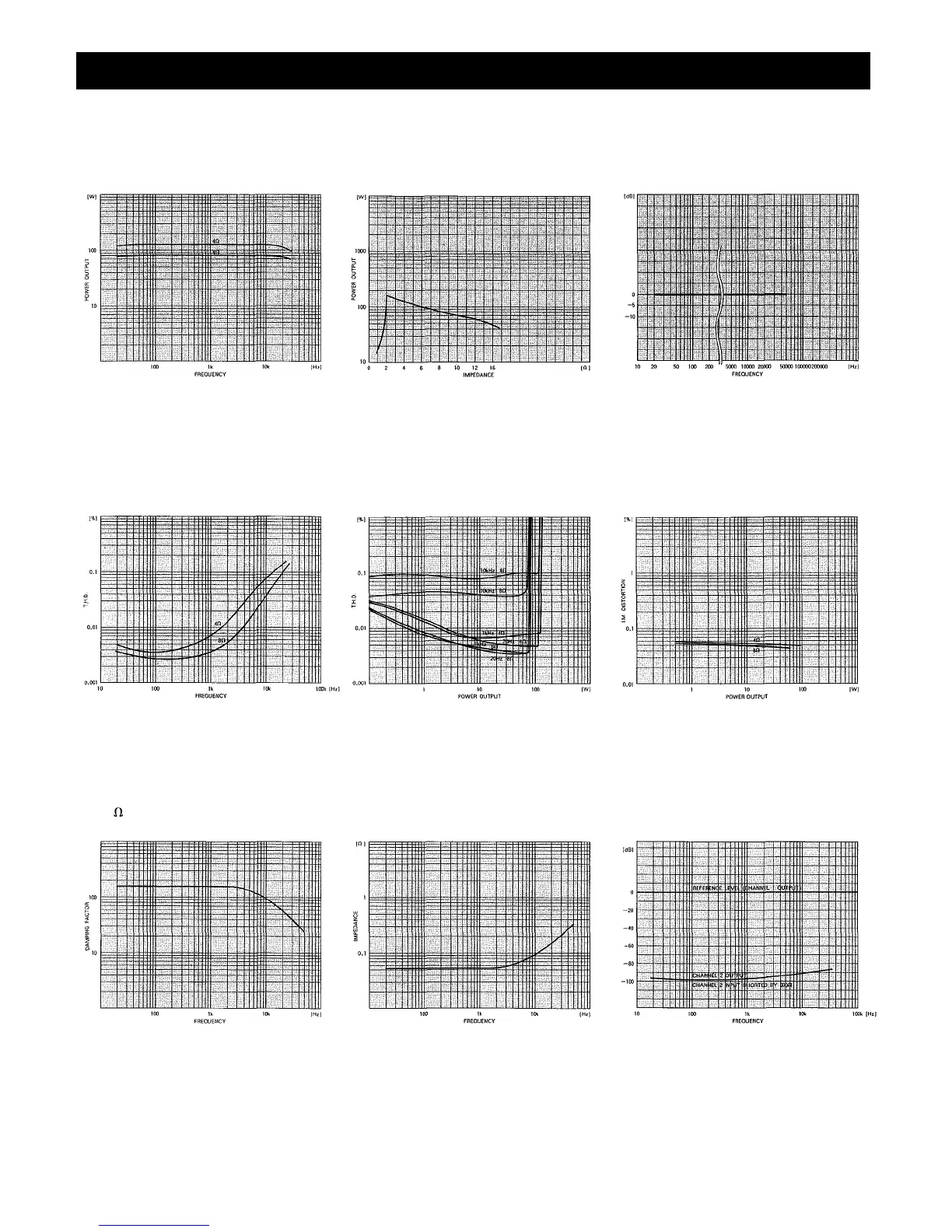

POWER BANDWIDTH
(BOTH CHANNELS DRIVEN)
LOAD IMPEDANCE vs POWER OUTPUT
FREQUENCY RESPONSE
(BOTH CHANNEL DRIVEN)
T.H.D. vs FREQUENCY
(BOTH CHANNEL DRIVEN)
T.H.D. vs POWER OUTPUT
(BOTH CHANNELS DRIVEN)
INTERMODULATION DISTORTION
VS POWER OUTPUT (ONE CHANNEL DRIVEN)
MEASURED WITH A 4 : 1 MIX AT 60 Hz and 7 kHz
DAMPING FACTOR vs FREQUENCY
AT 8 LOAD IMPEDANCE
ACTUAL OUTPUT IMPEDANCE
vs FREQUENCY
CROSSTALK
(BOTH INPUT ATTENUATORS
AT MAXIMUM LEVEL)
Performance Graphs (P-75D)
