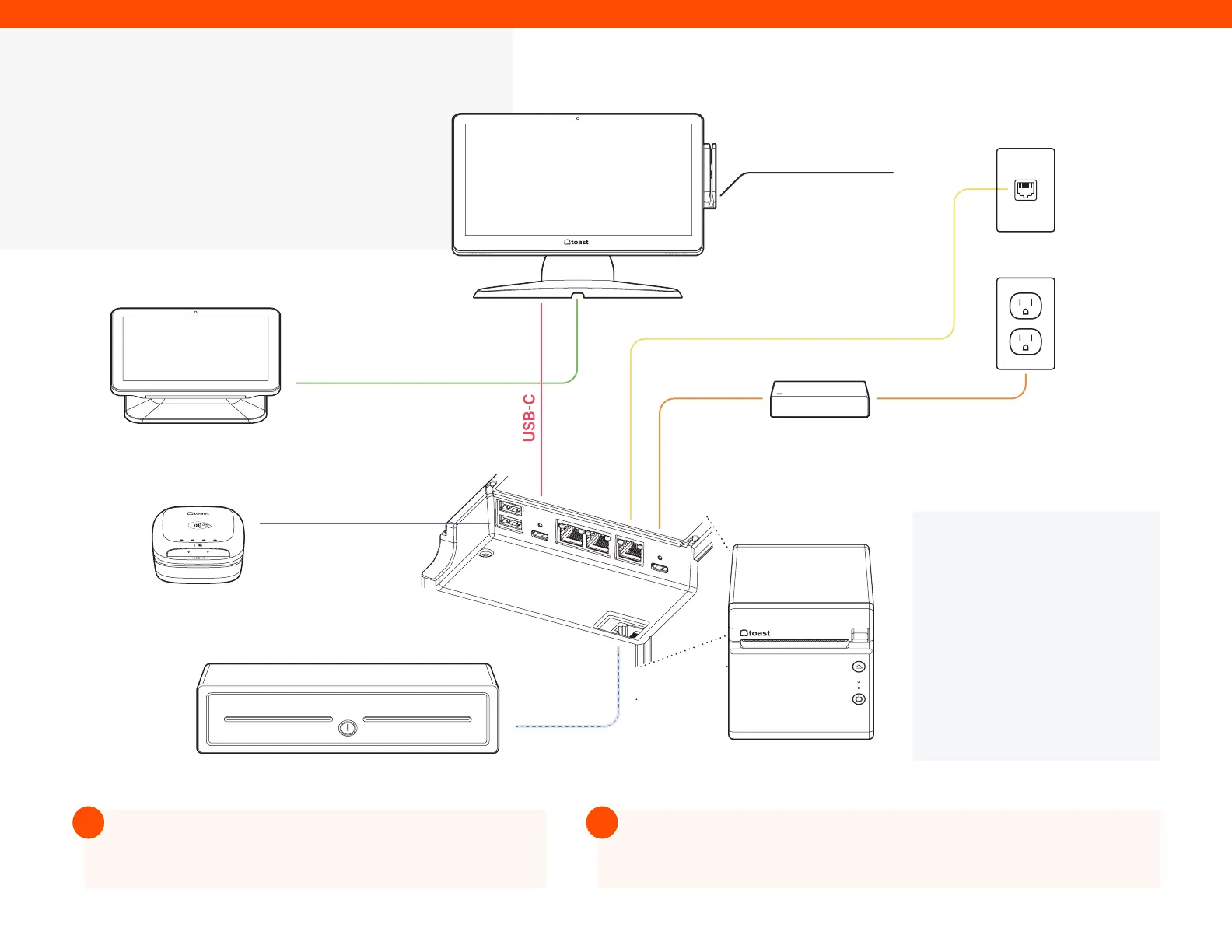

Cabling Diagram
Toast Flex + Toast Printer
Use the cabling diagram as a guide for how
your system will be wired when it’s all set up.
Internet Cable
Toast Flex for Guest
Toast Flex
MSR Card Reader
(Only if user has a
Toast Flex for Guest)
Internet
Wall Outlet
Ethernet Cable
Power Brick
Toast Printer
USB-C
(Only if user has a
Toast Flex for Guest)
Toast Tap
(On-Counter)
Cash Drawer
Cash Drawer Kick
(CD-101)
USB-A to
Micro USB
Toast Printer
Connector Bay
If you are using direct attachment for Toast Flex for
Guest, this is already in place on the Toast Flex terminal.
For a full service restaurant, you will have the Toast Tap (Direct Attach
to Toast Flex) already in place instead of a Toast Tap (On-Counter).
! !
NOTE
If you have an additional
terminal, connect the
second power brick from the
base of the terminal stand
to the wall. Connect the
second ethernet cable from
the Toast Printer to the base
of the terminal stand.
