Spark plugs replacement
ENOW00087-1
z Do not reuse spark plug, if the insulation
is damaged or sparks can leak through
crack, potentially leading to electric
shock, explosion and/or fire.
z Do not touch spark plug(s) immediately
after stopping engine as they will be hot
and could cause severe burns if touched.
ENOW00929-0
Use only the recommended spark plugs.
Spark plugs which have an different heat
range may cause engine damage.
If the spark plug(s) is fouled, has carbon
build up, or is worn, it should be
replaced.
When reusing spark plugs, remove dirt
from the electrodes and check the spark
gap.
1. Stop the engine.
2. Remove the top cowl.
3. Remove the spark plug caps.
4. Remove the spark plugs by turning it
counter-clockwise, using a 5/8" (16
mm) socket wrench and handle that
are provided in the tool bag.
5. Inspect the spark plug. Replace the
spark plug with wear on electrodes
and if the insulators are cracked or
chipped.

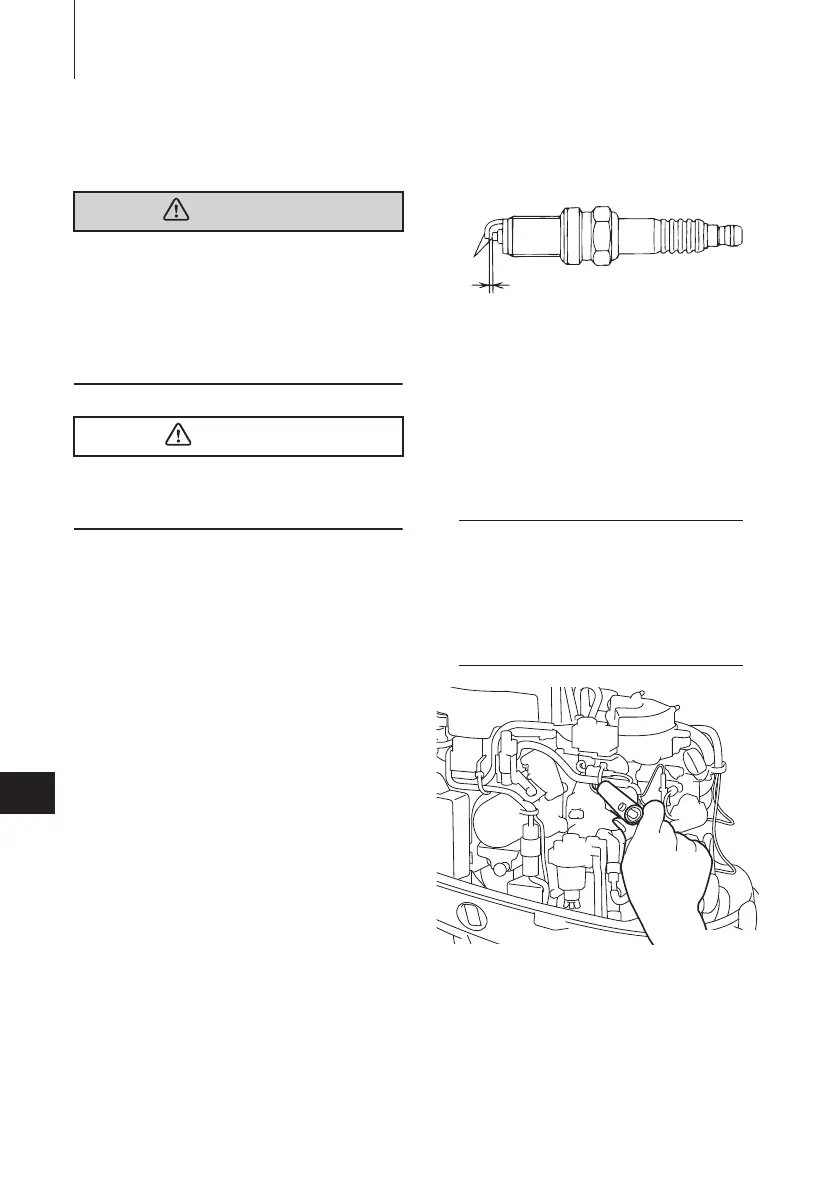

6. Measure the spark plug gap with a
wire type feeler gauge. The gap
should be 0.8-0.9 mm (0.031-0.035
inches). If the gap is out of specifica-
tion, replace the spark plug with a
new one.
Use spark plug NGK DCPR-6E.
1. Electrode
2. Spark gap (0.8–0.9 mm, 0.031–0.035 in)
7. Install the spark plug by hand and turn
it carefully to avoid cross-threading.
8. Tighten the spark plug to the speci-
fied torque.
ENON00028-1
Note
z Spark plug torque:
18.0 N·m (13.3 ft·lb) [1.84 kgf·m]
If a torque-wrench is not available when
you are installing a spark plug, tighten it 1/4
to 1/2 a turn past finger-tight. Have the
spark plug adjusted to the correct torque
as soon as possible with a torque-wrench.
