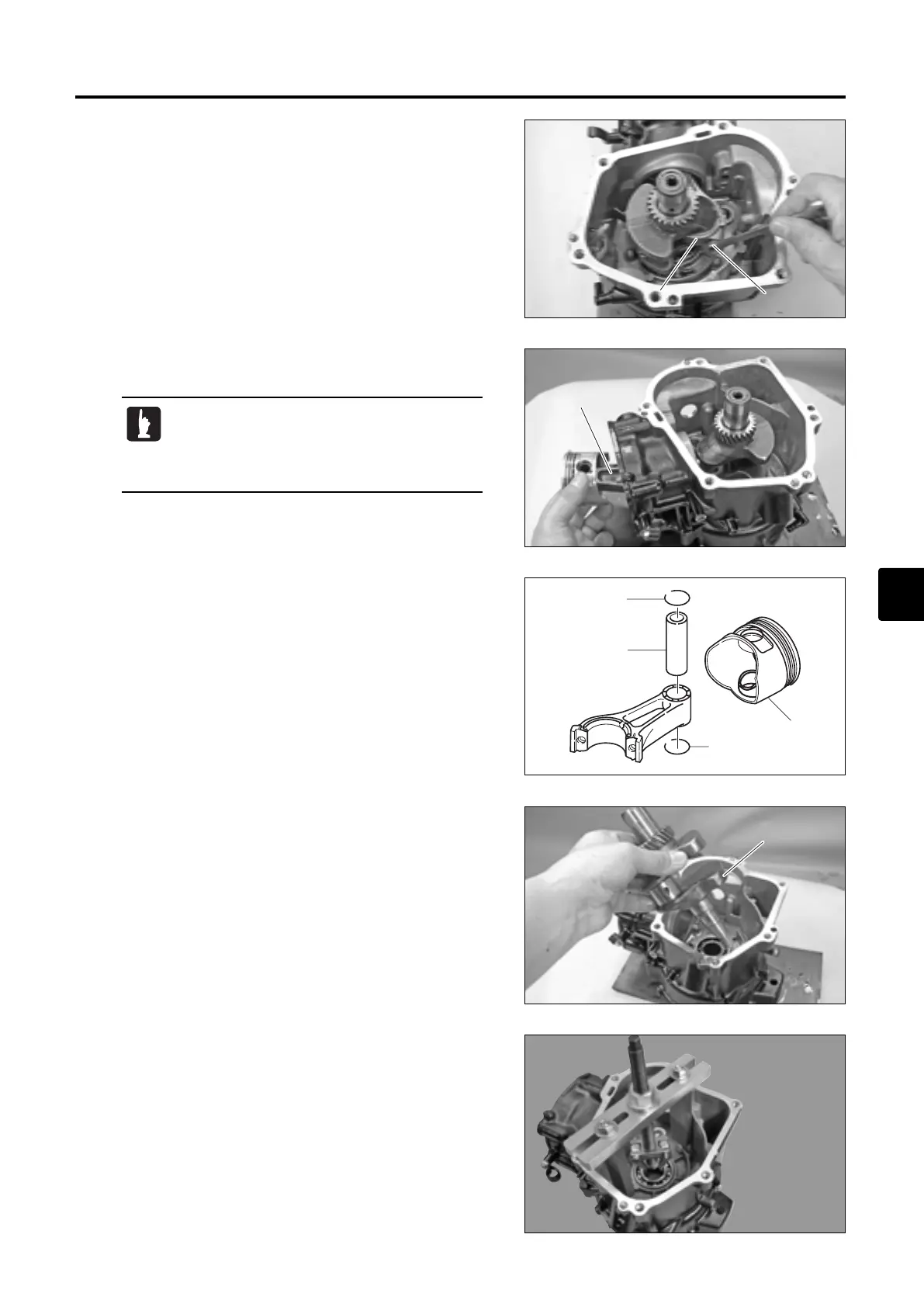

6. Remove connecting rod 6 and piston ass'y from cylinder
block.
66
7. Remove piston pin clip 7 and piston pin from piston 8
and connecting rod ass'y, and then remove piston 9.
87
8
7
9
8. Take out crankshaft 0 from crankcase.
00
9. Remove bearing from crankcase by using a commercially
available bearing puller.
5. Turn crankshaft to a position where connecting rod bolts 4
and connecting rod cap 5 can be removed, remove the
bolts, and then remove the cap.
5
4
4
5
· Removed bearings should be arranged in the
order they are removed.
· Do not reuse piston pin clips. Be sure to
replace with new ones.
