TOHATSU MFS 5 Service Manual

2-2
Service Data
4st 4/5/6 2011
B
E
A
C
U
F
D
OP
N
S
H
G
Q
J
R
T
K
L
I
M
Item Type Unit mm in
A mm/in 418 16.46
S mm/in 655 25.79
BLmm/in 782 30.79
UL mm/in 909 35.79
S mm/in 435 17.13
CLmm/in 562 22.13
UL mm/in 689 27.13
D mm/in 400 15.75
E mm/in 510 20.08
F mm/in 110 4.33
G mm/in 330 12.99
H mm/in 350 13.78
I mm/in 335 13.19
J mm/in 30-60 1.18-2.36
K mm/in 275 10.83
S mm/in 658 25.91
LLmm/in 758 29.84
UL mm/in 858 33.78
M mm/in 325 12.8
N mm/in 265 10.43
O mm/in 210 8.27
P mm/in 445 17.52
Q deg. 120
R deg. 12
S deg. 75
T deg. 75
U mm/in 110 4.33
1.Outline Dimensons
1）Engine Dimensions

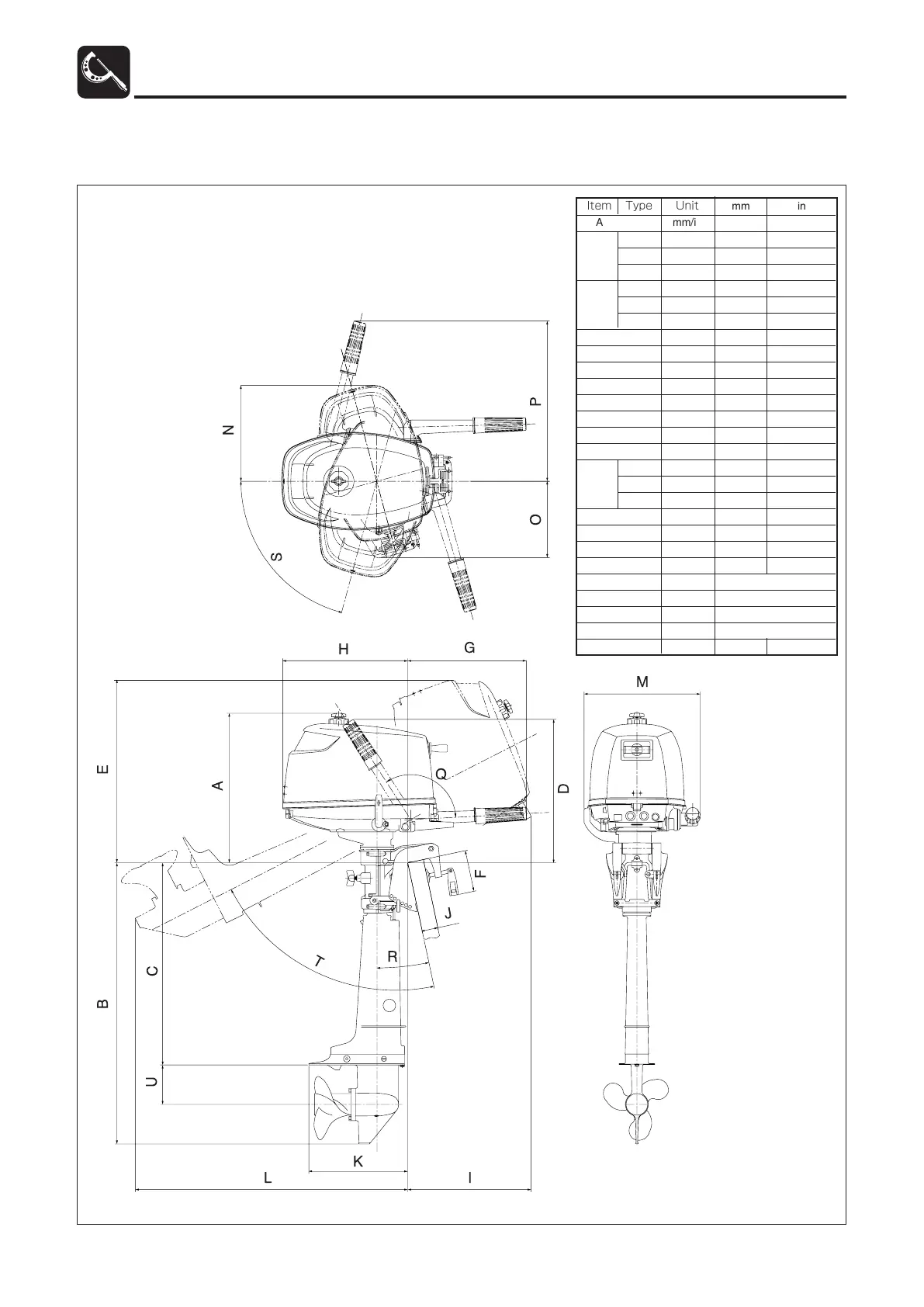

<Dual Tank model>
