ADJUSTMENT 59
9
Side mount type

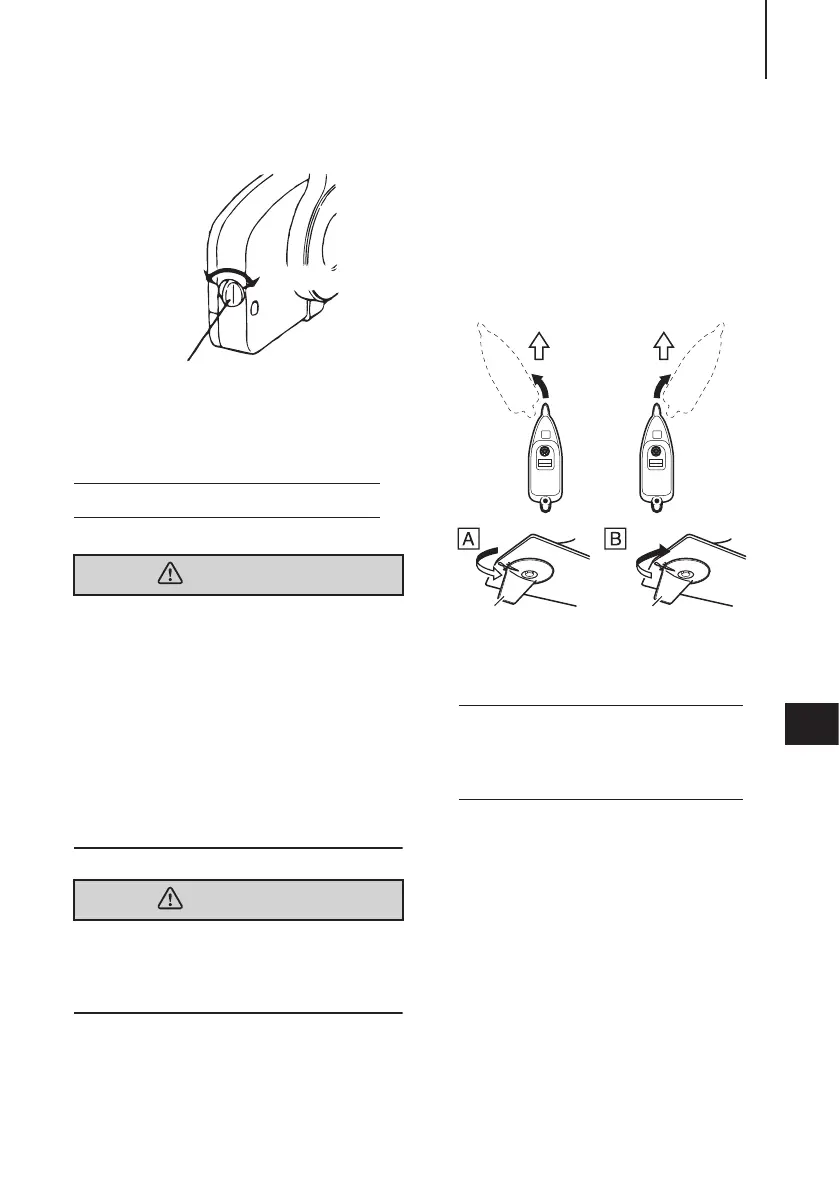

1. Throttle friction adjustment screw
2. Decrease
3. Increase
ENOM00076-0
ENOW00076-1
z Be sure that outboard motor is secured
to transom or service stand, or acciden-
tal drop or fall of outboard motor could
lead to severe personal injury.
z Be sure to lock outboard motor when it
is tilted up, otherwise accidental fall of
outboard motor could lead to severe
personal injury.
z Do not go under outboard motor tilted
up and locked, or accidental fall of out-
board motor could lead to severe per-
sonal injury.
ENOW00075-1
Inappropriate adjustment of trim tab could
cause steering difficulty. After installing or
readjusting trim tab, check if steering load
is even.
If straight-line cruising can not be
achieved, adjust the trim tab located under
the anti-ventilation plate.
z If the boat veers toward the left direct
the trim tab towards A (left from rear of
boat).
z If the boat veers toward the right direct
the trim tab towards B (right from rear of
boat).
1. Trim tab
ENON00022-A
Notes
z After adjustment securely tighten the
trim tab fixing bolt.
z Check for looseness of the bolt and the
trim tab at regular intervals.
4. Trim tab adjustment
WARNING
WARNING
3
2
1
ENOF00078-0
1
1
ENOF00912-A
