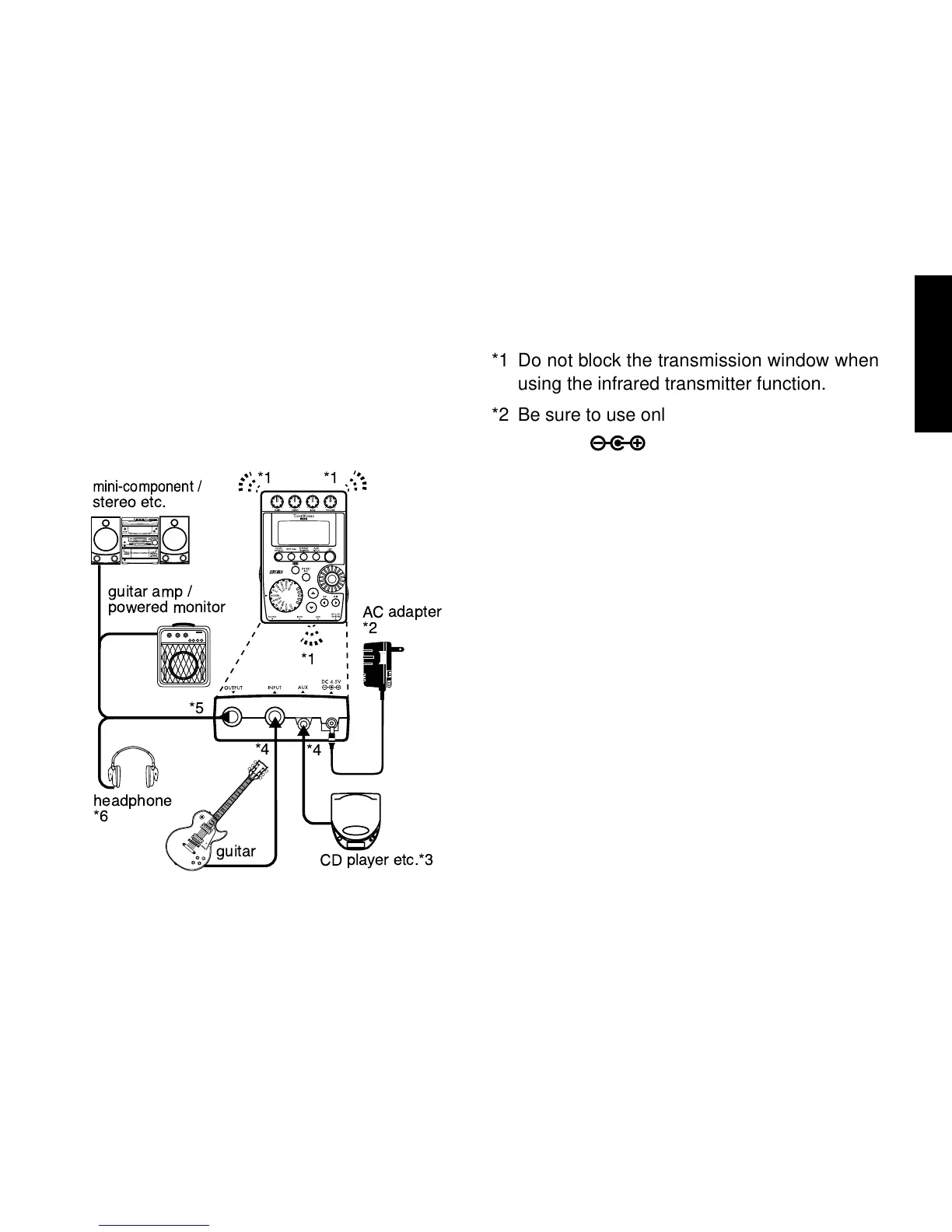

Making connections
When connecting an external device (ie-guitar
amp, stereo, ac adapter, etc)be sure to turn the
unit off.
headphone
*6
mini-component /
stereo etc.
guitar amp /
powered monitor
CD player etc.*3
guitar
AC adapter
*2
*5
*4
*4
*1
*1 *1
*1 Do not block the transmission window when
using the infrared transmitter function.
*2 Be sure to use only the specified AC adapter
(DC4.5V
).
*3 If a CD player or other audio source is con-
nected to AUX jack, you can play along on
your guitar with a tape, etc. However the vol-
ume must be adjusted on the connected de-
vice.
*4 Connecting cables are sold separately.
*5 PX4’s output jack is stereo. If you use a stan-
dard mono cable to connect it to a guitar amp
etc., only the L (left) output will be heard.
*6 PX4’s output level and sound quality will vary
depending on which headphones are used.
We recommend using good quality low imped-
ance headphones, 32 Ohms or less with a
sensitivity rating near 100dB/mW or above.
Many headphones sold for use with portable
CD or cassette players will work just fine.
