INSTALLATION AND USER MANUAL
4.2 Install the energizer
1. Mount the energizer on a wall ,under cover ,out of reach of children .install where there is no
risk of the energizer incurring fire ,mechanical , or water damage and if possible away from
heavy electrical equipment,(e.g. pumps or other item that may cause electrical interference).
Noted: install the energizer in a frequently accessed place, the output bar graph gives valuable
information that can save time and help prevent costly problems.
2. Choose a mounting surface of sufficient strength,(e.g. stud , dwang or plywood panel).
Mounting surface needs to be robust and of sufficient thickness to properly contain the
mounting screws. On the mounting surface , mark where the screw for the top keyhole of the
mounting bracket is to be fixed . ensure this is at the correct mounting height you require for
the energizer, Drill a small pilot fixing hole. Install the tek fixing screws and check the clearance
for the mounting bracket to slide over the screw head.
3. Carefully hang the energizer over the screw

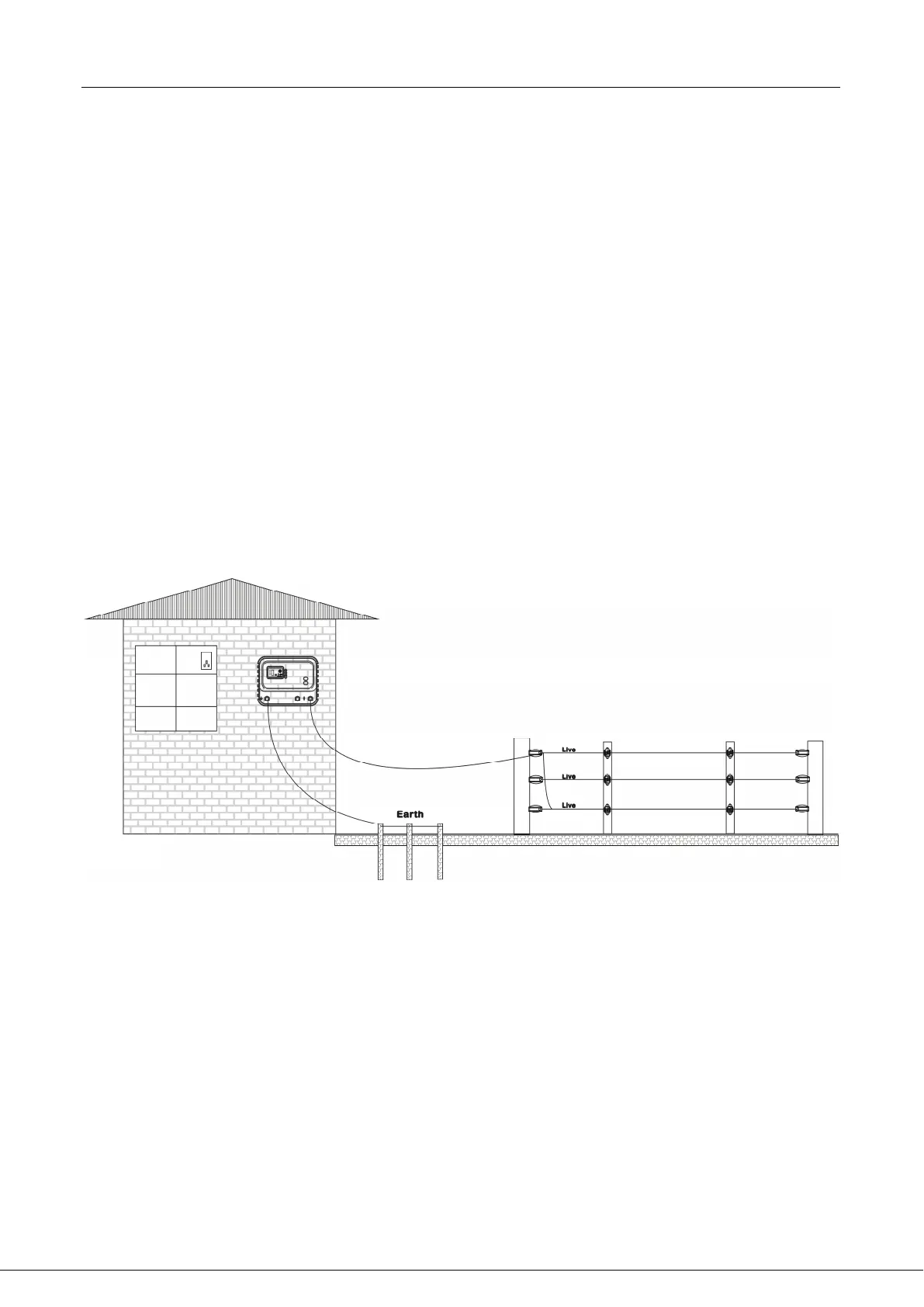

Permanent inside installation
Drill 2 holes on the horizontal. Fix the screws (not supplied) leaving a 4mm gap between the
head of the screw and the wall. Once in place, line the back of the energizer with the mounting
screws and slide down into place.
