Manual of instructions TT-181 10/33

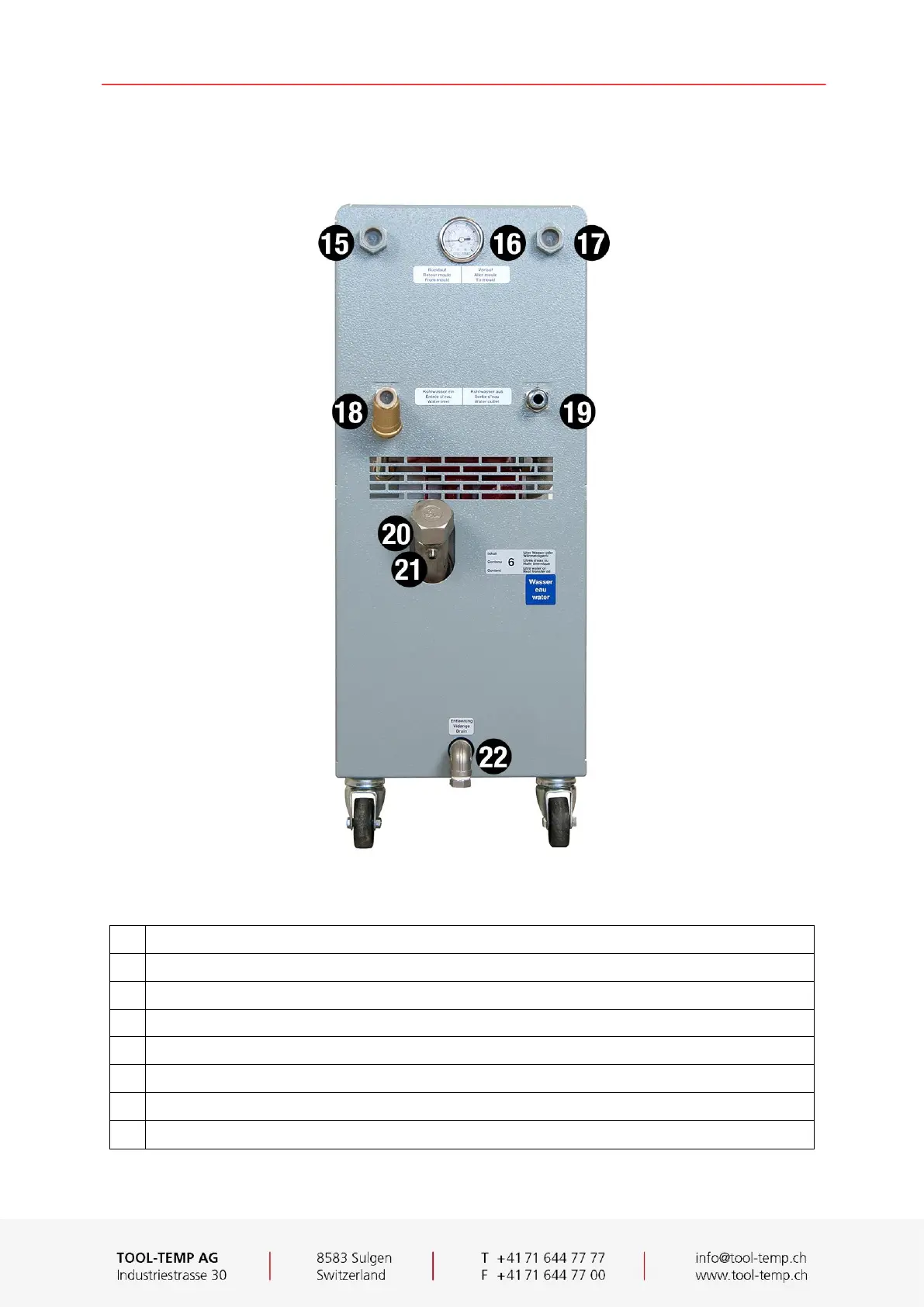

2.2. Rear view
15
From mould
½“ BSP female thread
16
Manometer pump pressure
17
To mould
½“ BSP female thread
18
Cooling water inlet with water filter
⅜“ BSP female thread
19
Cooling water outlet
⅜“ BSP male thread
20
Manually refill with overflow
1“ BSP male thread
21
Overflow
22
Drainage
⅜“ BSP female thread
