TOOLCRAFT LDM 70 - Page 31

31
A. Display
B. Button “MEAS”
C. Button “+”
D. Button “Area/Volume”
E. Button “Countdown/Backlight”
F. Button “-”
G. Button “On/Off”
H. Button “Indirect Measurement“
I. Button “Settings”
J. Measuring sensor
K. Laser outlet
L. Battery compartment
2
3
5
7
6
11
10
1
8
9
12
13
4

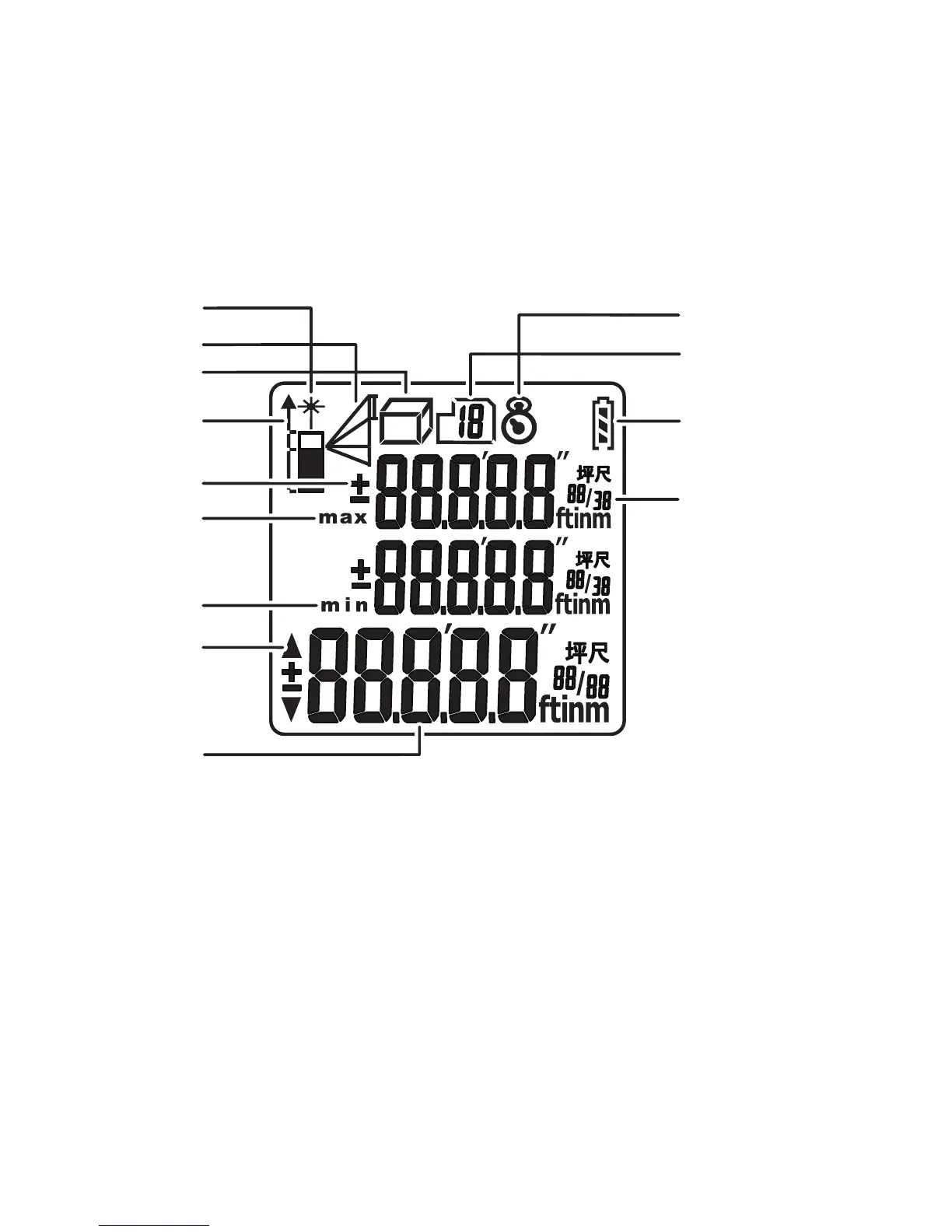

1. Laser indicator
2. Indirect measurement (Pythagoras)
3. Area/volume measurement
4. Measurement reference
5. Addition/Subtraction
6. Indicator “max”
7. Indicator “min”
8. Directional indicator
for stake out function
9. Reading
10. Countdown indicator
11. Memory capacity
12. Battery status indicator
13. Previous reading
