@ToolkiRC 2023

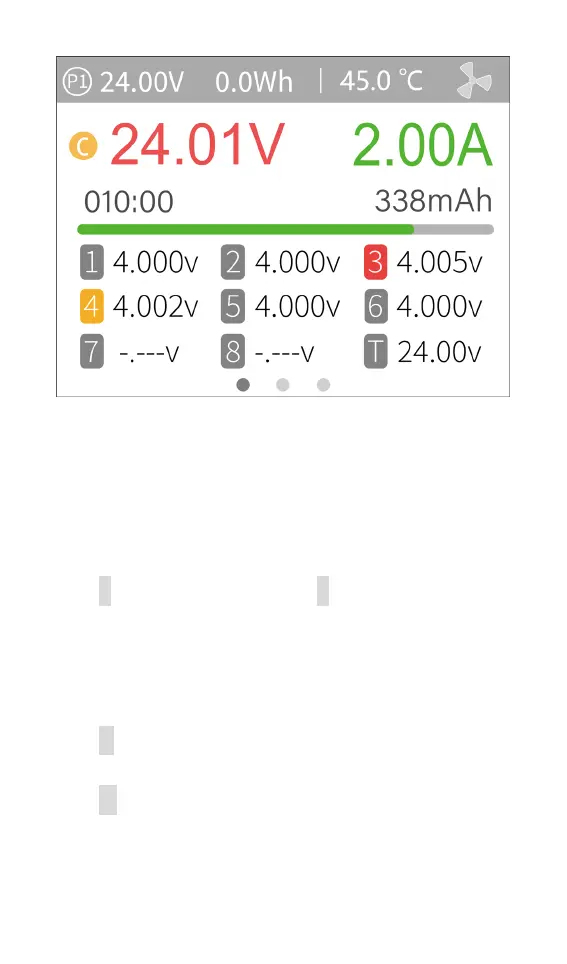

Rotate [Scroll Wheel] on this interface to toggle
between three different displays.
P1: Power selection in system settings
24.01V: Input voltage
0.0Wh: Accumulated power consumption
45.0℃: The internal temperature of the charger
V : Constant voltage sign C: Constant current sign
24.01V: Main port voltage
2.00A: Main port current
010:00: Working time
338mAh: Charged capacity
1 4.000V: Voltage for the first battery cell
.......
T 24.00V: Total voltage measured at balance lead.
-.---v : No battery connected
Short press the [Scroll Wheel] to dynamically set
