Ⅴ Eleetric control system
5.1Main eleetric components schedule
NO
Name
Specification
Quantity
1
Transformer
BK-150VA 230V/27V/36V
1
2
ACcontactor
CJX1-12/22
4
3
Fuse gear
NXB-63Z C40
1
4
Fuse gear
NXB-63Z C6
3
5
Thermal relay
JR36-20(3.2-50)A
1
6
Thermal relay
JR36-20(6.8-11)A
1
7
Limit switch
YBLX19-001
6
8
Power switch
HZ5-20S4
1
9
Light
XDJ2-36V
1
10
Emergeney stop botton
LAY16-C01
1
11
Botton
LAY16AW22
1
12
Botton
LA16AW10
3
Botton
LA16AW11
4

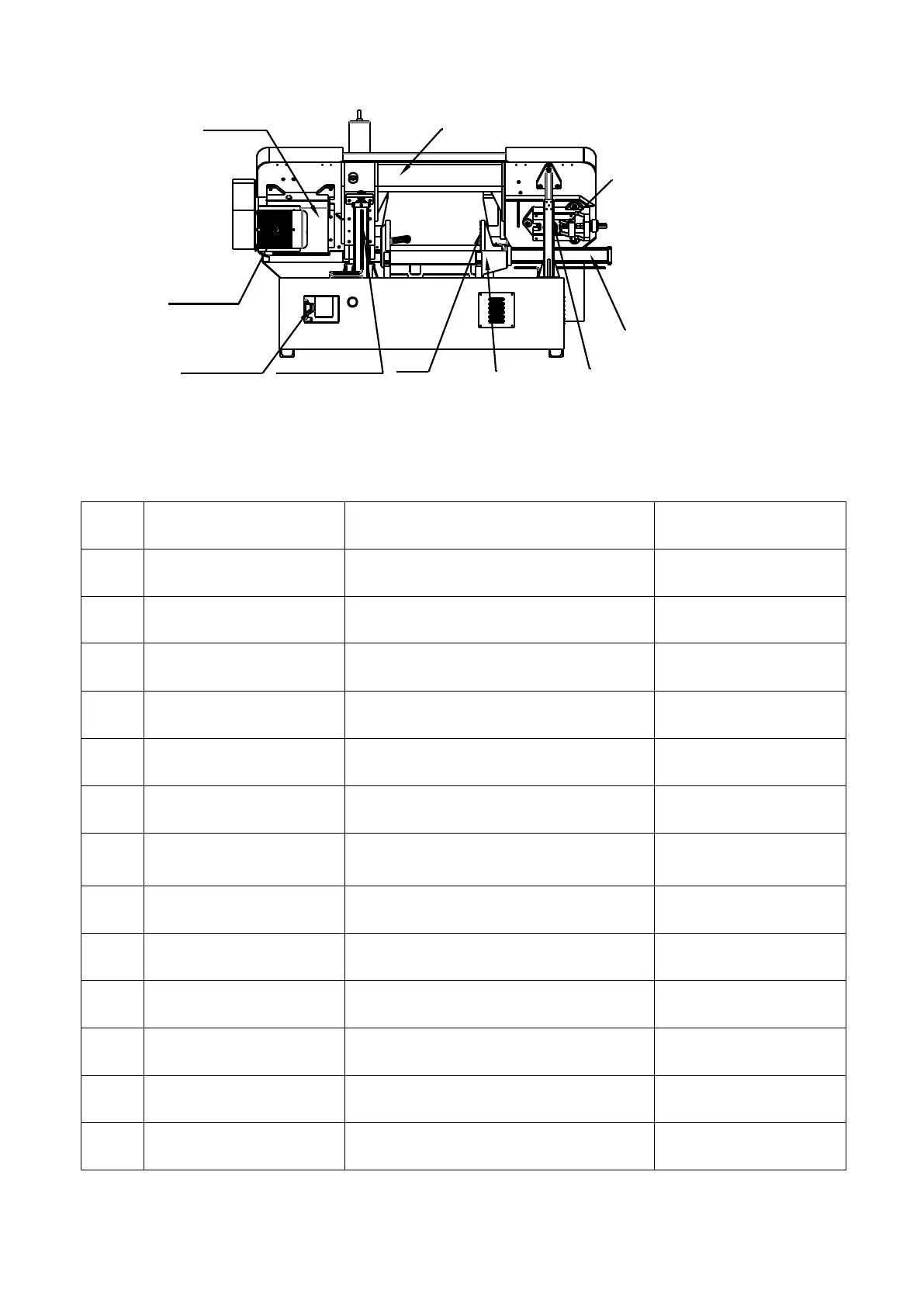

5.2Saw machine control diagram figure
MainMain MotorMotor
CoolingCooling pumppump
ClampingClamping oiloil cylindercylinder
AuxiliaryAuxiliary columncolumn
TensionTension mechanismmechanism
LiftingLifting oiloil tenttent
SawSaw headhead
TurboTurbo boxbox
MachineMachine bedbed
ViseVise
