34
❏ 7. Remove the tubes from the fuselage. Tap 4-40
threads through the holes you just drilled. Use a fi le to
remove any burrs from the tapped holes. Remount the
panels to the fuselage with 4-40 x 1" [25mm] SHCS
and a drop of threadlocker in each tube.
MOUNT THE OUTBOARD WING PANELS

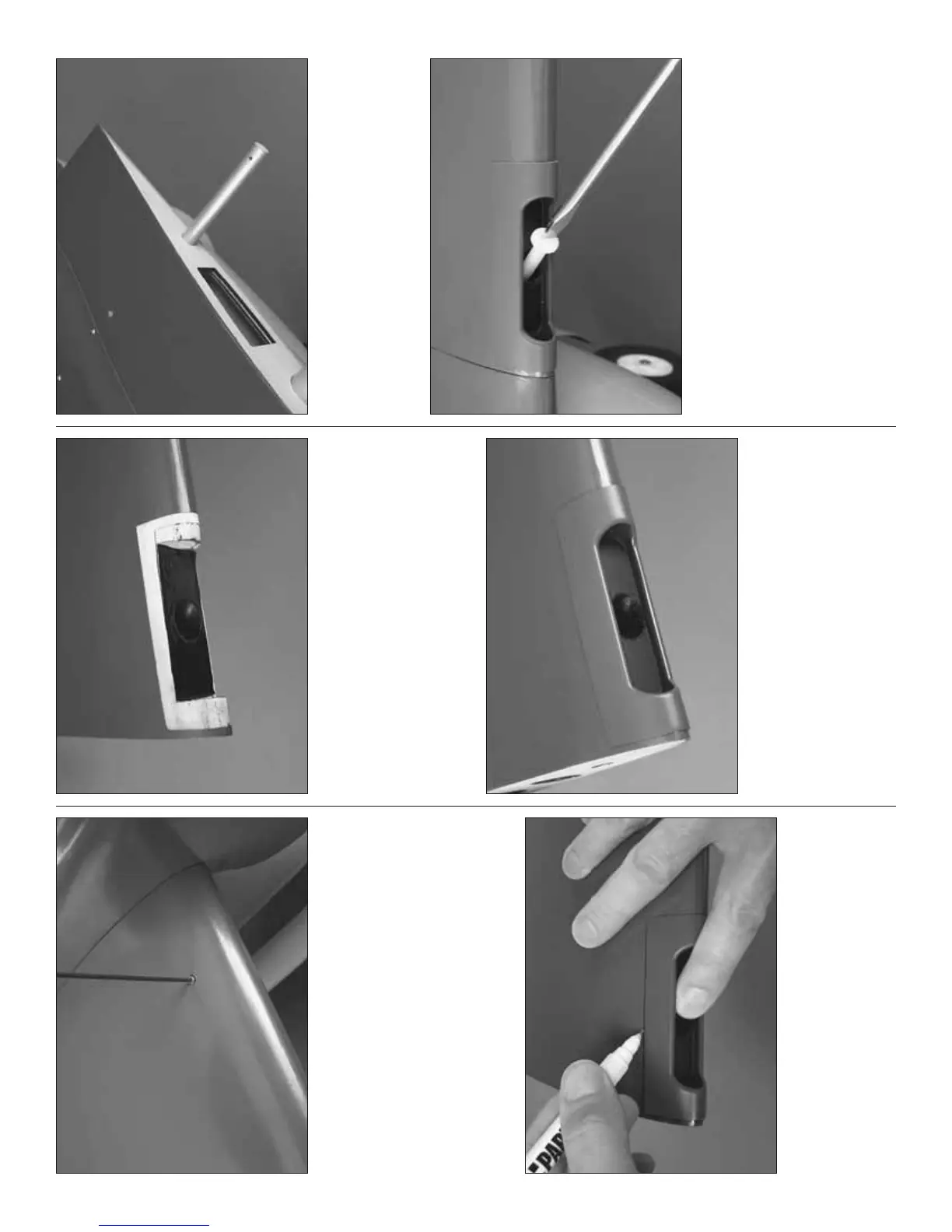

❏ 1. Determine which molded plastic oil cooler air
scoop is the right and which one is the left by test
fi tting them to the outboard wing panels. Hold the
left air scoop to the left outboard wing panel. Use a
fi ne-point felt-tip pen to mark the outline of the scoop
directly onto the wing.
❏ 2. Cut the covering from the wing 1/16" [2mm]
inside the lines you marked, but leave the black
covering in place. Wipe away the ink with one of your
small paper towel squares and denatured alcohol.
❏ 3. Glue the air scoop to the wing with medium CA.
❏ 4. Mount the right air scoop to the right wing panel
the same way.
❏ 5. Fit the end of one of the 10 x 150mm aluminum
outer panel wing tubes that has the threaded hole into
the left, inboard wing panel. Secure the tube in the wing
with a 4-40 x 3/4" [19mm] SHCS. Also fi t one of the 22
x 295mm outer panel wing tubes into the panel.
❏ 6. Join the outboard panel to the inboard panel
with a 1/4-20 x 2" [50mm] nylon bolt. Tighten the
outboard panel to the inboard panel
❏ 7. The same as was done for the inboard panels,
drill a #43 hole through the end of the tube in the
outboard panel.
❏ 8. Remove the outboard panel and the tube. Tap
4-40 threads into the hole you drilled in the tube. File
off any burrs from the holes.
