18
Operating procedure
(Recalling slope)
Key
operation
Lamp display

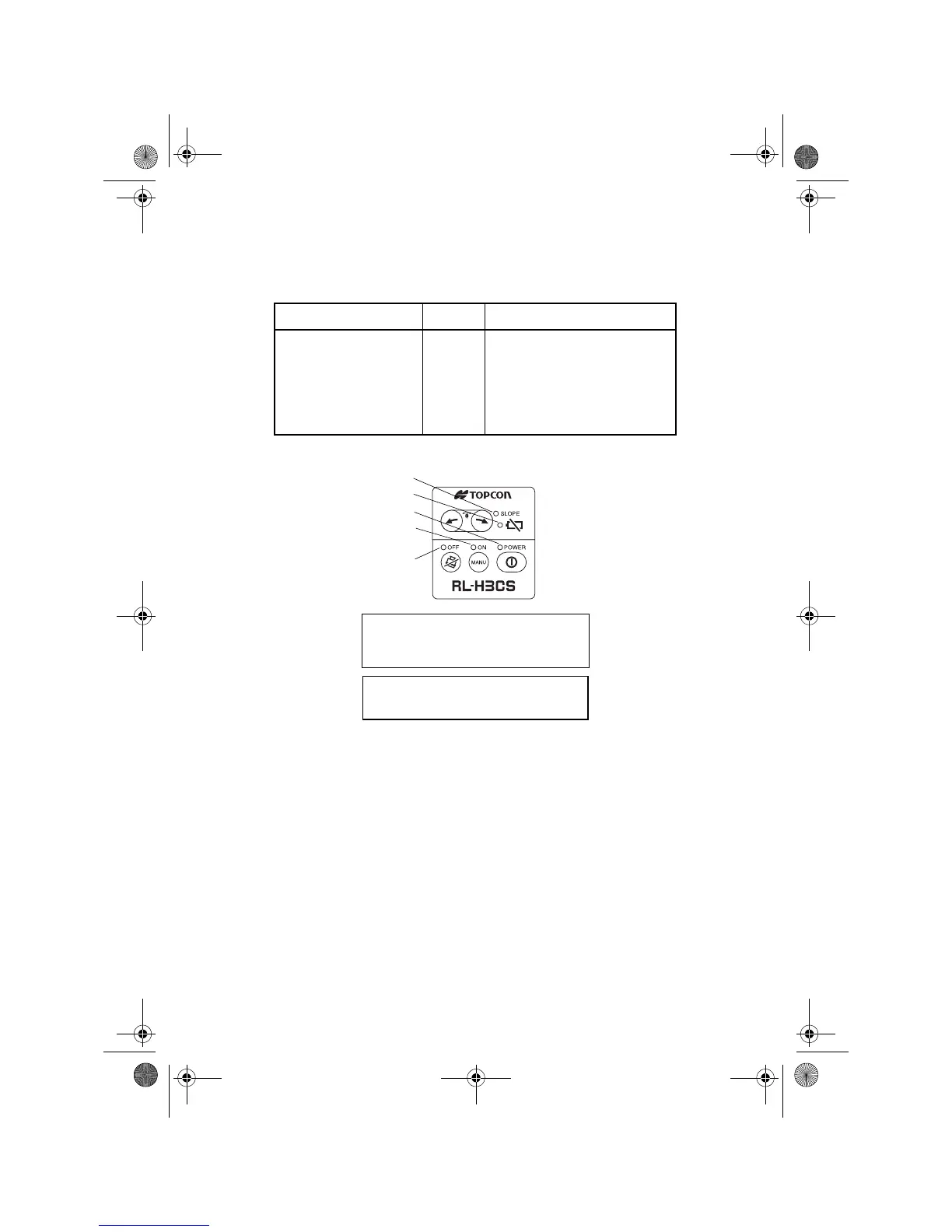

(Refer to the illustration above)
1 To recall the previous slope setting
(the setting before power was
OFF), press Power switch ON
while pressing either the right or
left Slope key. The slope can then
be adjusted as described in step 4
above.
• When the Power switch is ON
without the Slope key pressed, the
laser beam will return to level.
Slope key
+
Power
switch
When Slope key is not pressed: Lamp E
(Green) lights.
Slope key Lamp E (green) Beam move-
ment
Press for a shorter time : Blinks slowly :
Moves slowly
Å@Å@ ↓Å@Å@Å@Å@ Å@Å@Å@Å@ ↓ ↓
Press for a longer time : Blinks quickly :
Moves quickly
A
B
D
C
Manual mode can be activated while the slope is
set.
For information about Manual mode ON/OFF,
refer to "NOMENCLATURE AND FUNCTIONS".
Check the beam often during slope use for slope
accuracy. Check instrument calibration periodi-
cally (see below).
E
