15
ASSEMBLY PROCEDURE

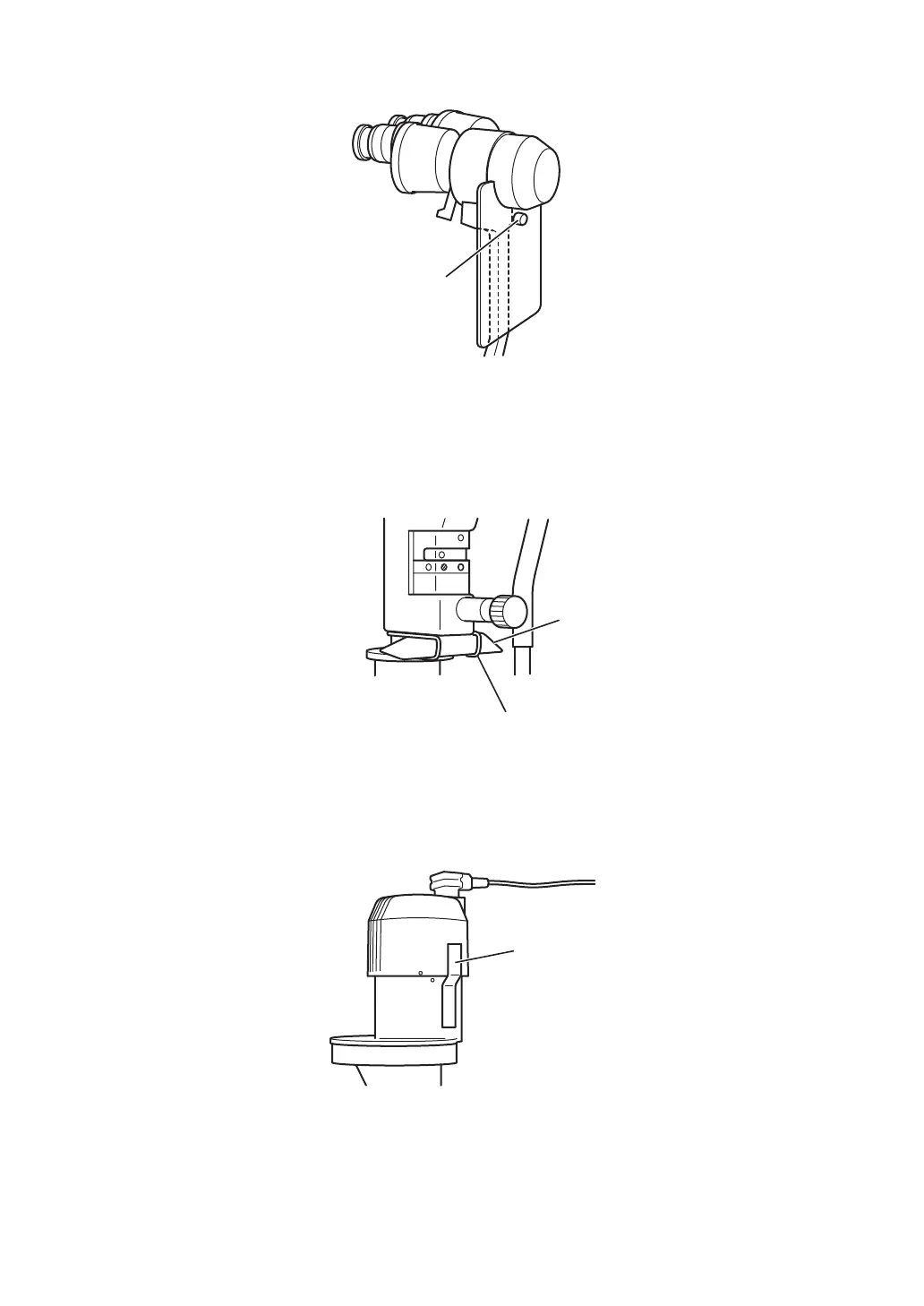

(6) Mounting the Breath Shield
* Remove the breath shield attachment screw from the microscope arm.
* Pass the attachment screw through the opening in the breath shield and re-screw it into the
arm.
(7) Removing the Illumination Arm Shipping Pad
* The pad is attached to protect the slit closure mechanism of the illumination arm assembly
during shipping.
* Remove the rubber band and gently pull the pad out.
(8) Connecting Cables
(a) Connect the cable from the top of the chinrest to the lamphouse cover on illumination arm.
* Peel off the tape which secures the lamphouse cover during shipping.
Breath shield attachment screw
Pad
Rubber band
Tape
To Next Page
