ASSEMBLY PROCEDURE
* With the unit model, an accessory box is supplied to store the spare parts.

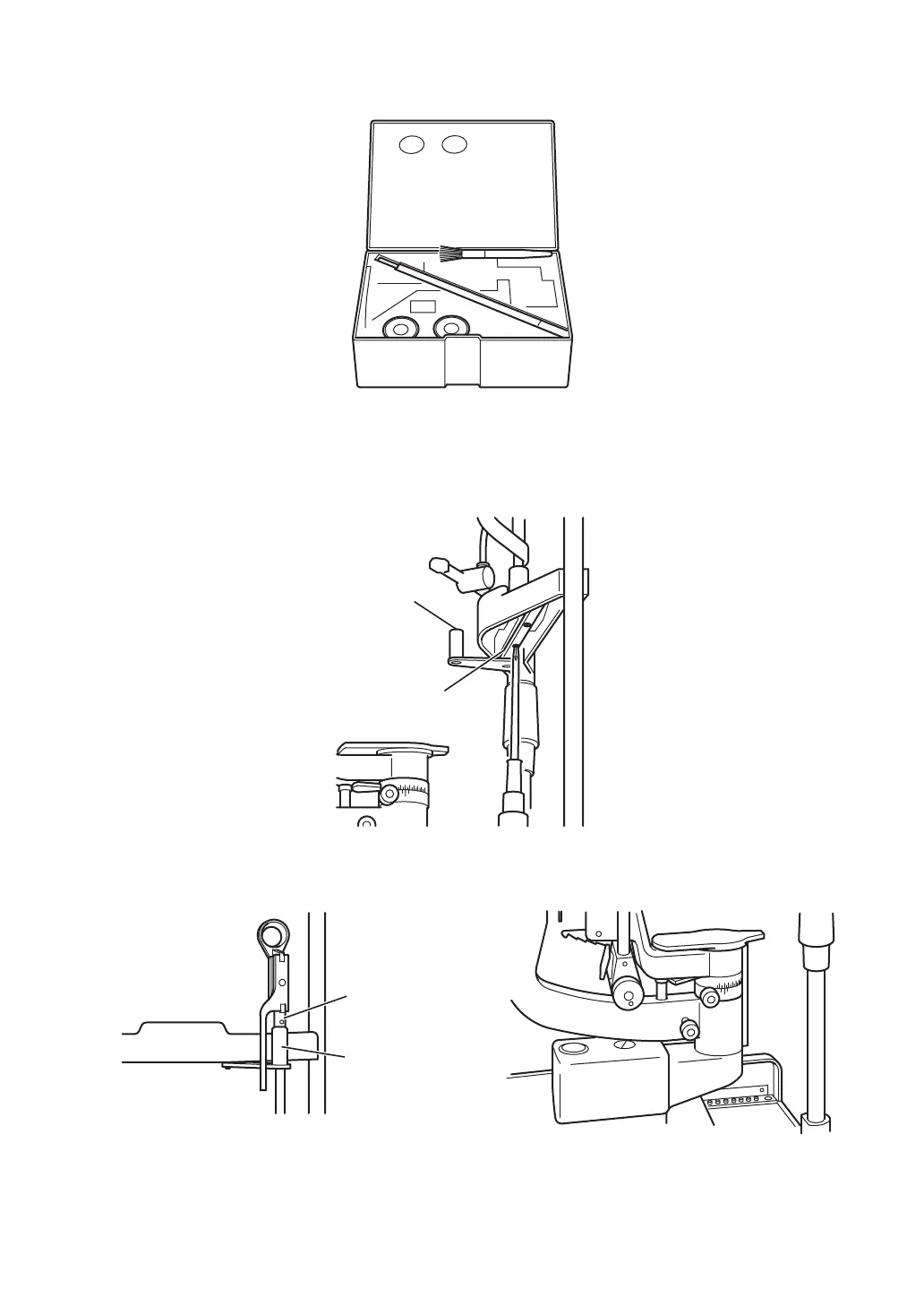

(11) Mounting the Hruby Lens and Hruby Lens Guide Plate (Option)
Mount the Hruby lens holder and the Hruby lens rail unit onto the chinrest assembly, using
four screws.
* Insert the Hruby lens and Hruby lens holder, which is located on the chinrest assembly.
Do not touch the lens surface.
* Place the guide plate in the hole of the main body's carrier arm. The pointed end should face
the chinrest.
Hruby lens holder
Hruby lens rail
Hruby lens holder
Hruby lens
