13

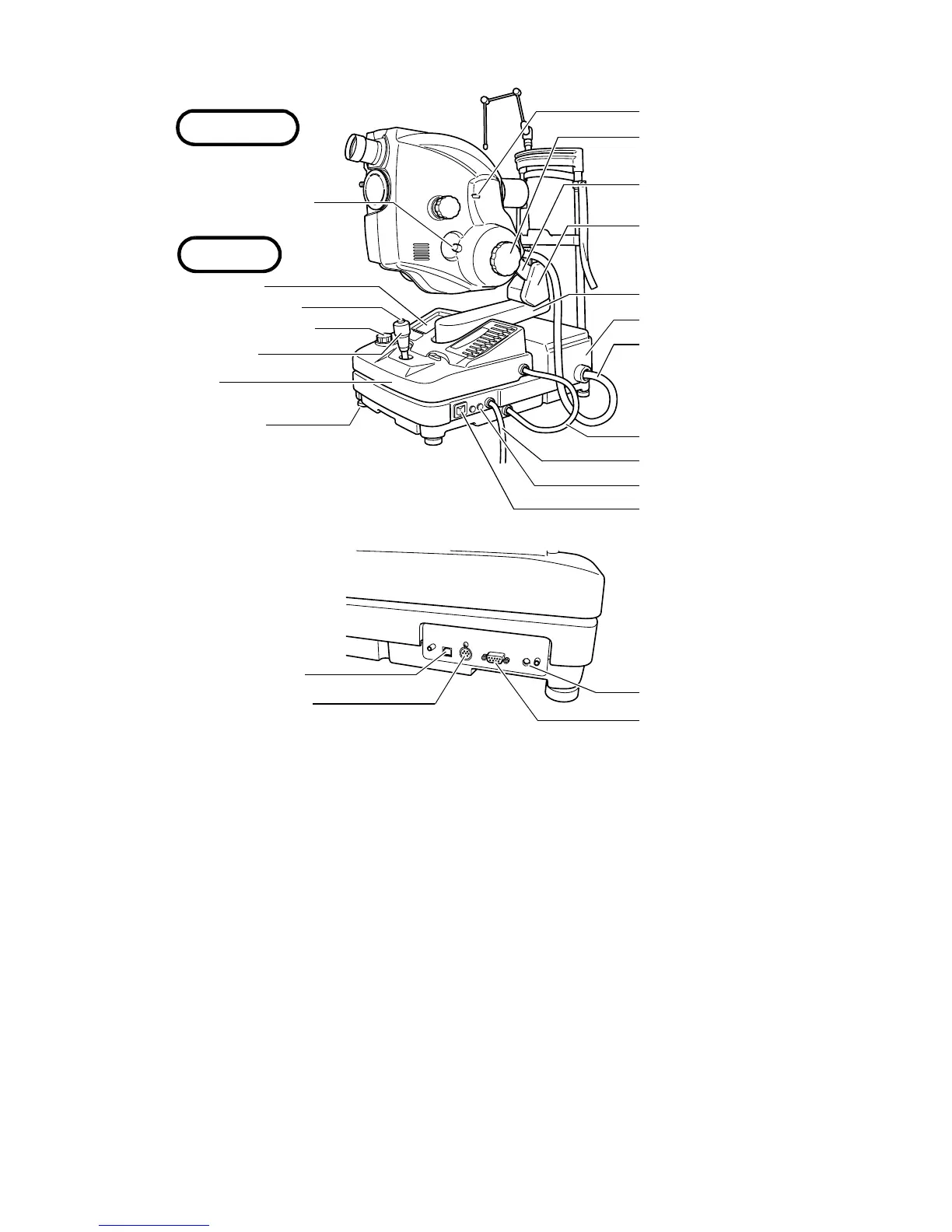

NOMENCLATURE
Photography switch........................Press this switch, and the xenon lamp flashes and different
types of photography are possible.
Inclination handle ...........................Performs inclination in upper 15° and lower 10°.
Inclination brake knob ....................Inclination is set to "free" or "lock" by turning this knob.
2nd arm..........................................Swings up to 30° to the right and left.
CONTROL terminal........................Used to connect to IMAGEnet.
DATA terminal ................................Used to communicate with IMAGEnet.
TIMER terminal ..............................Used to connect with the video timer.
USB terminal..................................Used to connect to IMAGEnet.
DATA
CONTROL
TIMER
Tilting unit
Base unit
Inclination brake knob
Control panel
Photography switch
Illumination level knob
Cover
Level adjuster
Power cord
External connection terminal
USB terminal
DATA terminal
Inclination handle
Inclination rail
2nd arm
1st arm
Main unit connecting cord
Base unit connecting cord
Fuse holder
Power switch
CONTROL terminal
"Horizontal" index window
Base
TIMER terminal
Control lever
