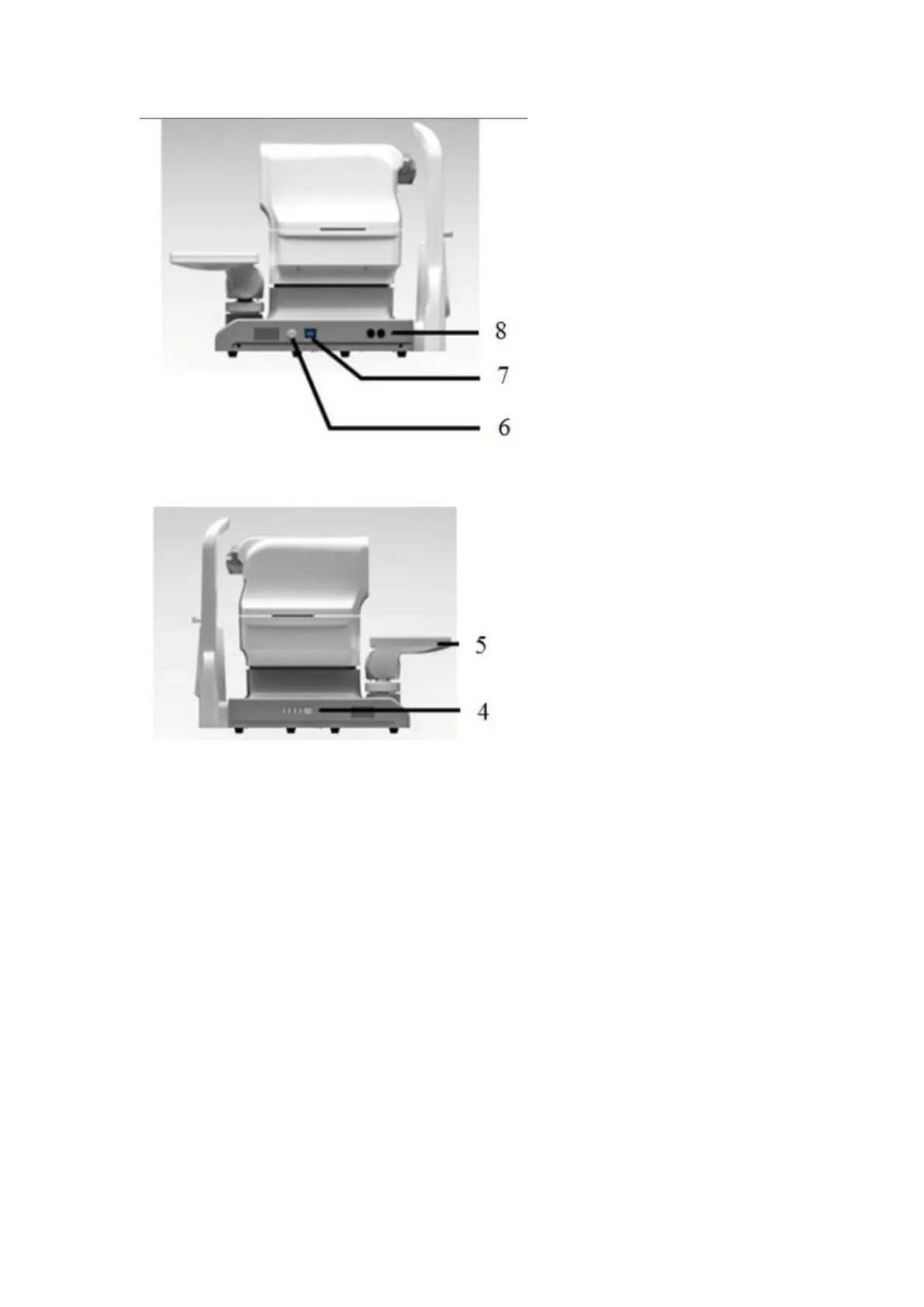

Topview Kestrel 3100m - Product Parts Description

- 12 -
Side View 3
2.6 Description of product parts
 Chin rest
 Before the data acquisition, please make sure that patients have their chins closely attached to
the bottom and front end of chin rest.
 Forehead rest
 During the data acquisition, please make sure that patients have their foreheads closely
attached to the forehead rest.
 Connect the external device
 Print and output data.
 Head
 Head consists of main working parts of the equipment.
 Touch screen
 Touch screen serves as the interactive interface, and makes it possible for users to collect data,
manage medical records and print reports via touching the screen.
 Computer switch
 Operators can start up or shut down the computer built in the equipment by pressing down
the computer switch. Pressing the computer switch will not cut off the main power of the
