TorcUP EP500 - Page 33

Valve Sub Assemblies
EP500 Torque Wrench
Power Pump

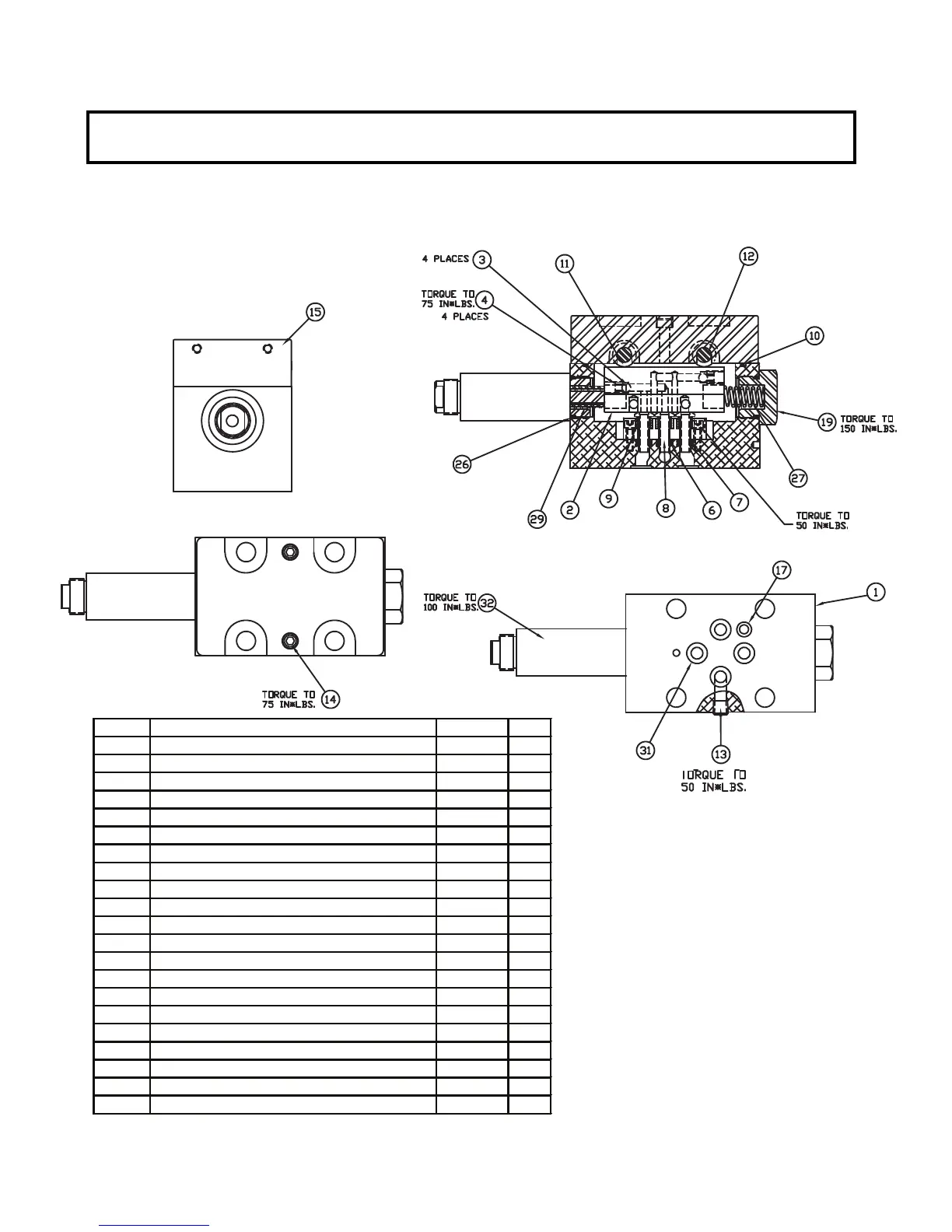

(46291) 3 & 4 WAY SOLENOID VALVE 115V. / 230V.
PACKING KIT 3 & 4 WAY SOLENOID VALVE
(* = COMPONENTS) -- PART #54491
ITEM # DESCRIPTION PART # QTY.
01 BODY-VALVE 68708 1.00
02 SLIDER ADV/RET ONLY 44328 1.00
03 BALL 3/16" 90548 4.00
04 SET SCREW 1/4-28 X 1/4 CUP 40254 4.00
06 O-RING 7/32X11/32 * 3.00
07 BACK UP WASHER * 3.00
08 SHEAR SEAL 68383 3.00
09 SPRING 68384 3.00
10 O-RING 2 5/8 X 2 3/4 * 1.00
11 BEARING ROLLER 5/16x1/2x5/16 WIDE 68385 4.00
12 PIN BEARING 68390 2.00
13 PIPE PLUG FLUSH 1/16 W/ COATING 40049 1.00
14 SHCS #10-32 X 1" LG PLATED 68264 2.00
15 VALVE TOP PLATE MACHINED 46272 1.00
1
7 O-RING 3/16X5/16 * 1.00
19 VALVE PLUG 2 POSITION SLIDER 46271 1.00
26 O-RING SAE PORT #10 * 2.00
27 SPRING 68711 1.00
29 SPACER VALVE SLIDER 46418 1.00
31 O-RING 5/16X7/16 URE * 4.00
32 PUSHER-SOLENOID 68729 1.00
VALVE SUB ASSEMBLIES
EP500
(46291) 3 & 4 WAY SOLENOID VALVE 115V./230V.
32/37
