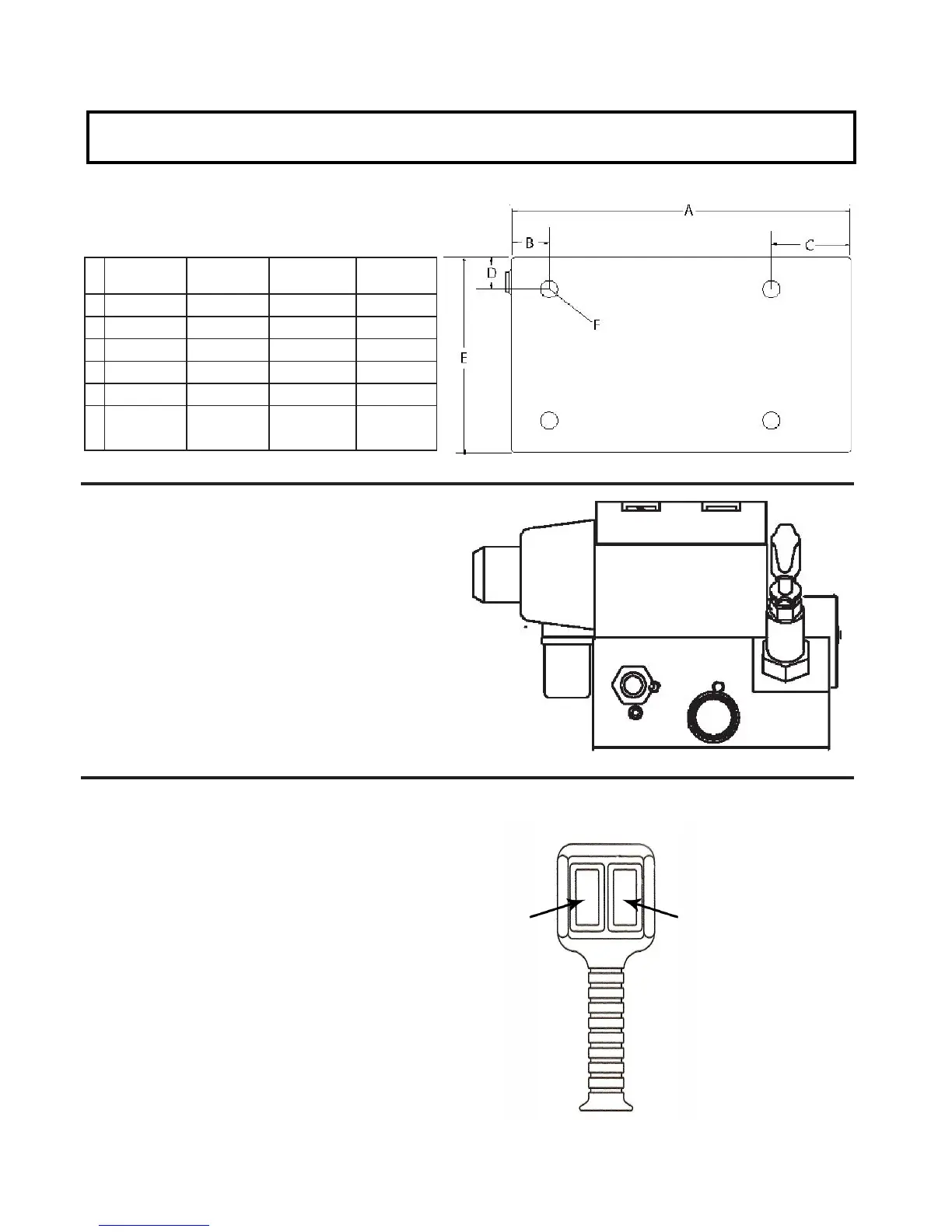

TECHNICAL SPECIFICATIONS
PUMP MOUNTING
Refer to the chart for mounting dimensions to
secure the pump to a xed surface.
1 gal.
(4L)
1.5 gal.
(6L)
2.5 gal.
(10L)
5 gal
(20L)
A 11 15.13 17 19.6
B 0.56 1.68 2.75 4.69
C 0.56 3.57 4.37 5.03
D 1.16 1.43 1.93 2.93
E 8.19 9.75 9.75 11.75
F 1/4-2unc 1/4-2unc 1/4-2unc 1/4-2unc
(4 places) (4 places) (4 places) (4 places)
CONTROL VALVES
2-Postion – 4 Way Solenoid Valve for
Hydraulic Torque Wrenches.
To Advance......depress the Advance Switch
To Retract.........release advance switch to Retract Tool.
2 Position
-
4 Way Solenoid
POWER CONTROL SWITCHES
Remote pendant.
Congured with motor control pendant:
Press UP or Down
To Turn Pump Off
Press UP or Down
To Turn On Pump
NOTE: In the event multiple buttons are
depressed for longer than 5 seconds,
the unit is programmed to shut down.
To restart, you will need to depress
the motor “ ON” to continue, or unplug/
replug the unit into power supply, then
depress the motor “ ON” to continue.
