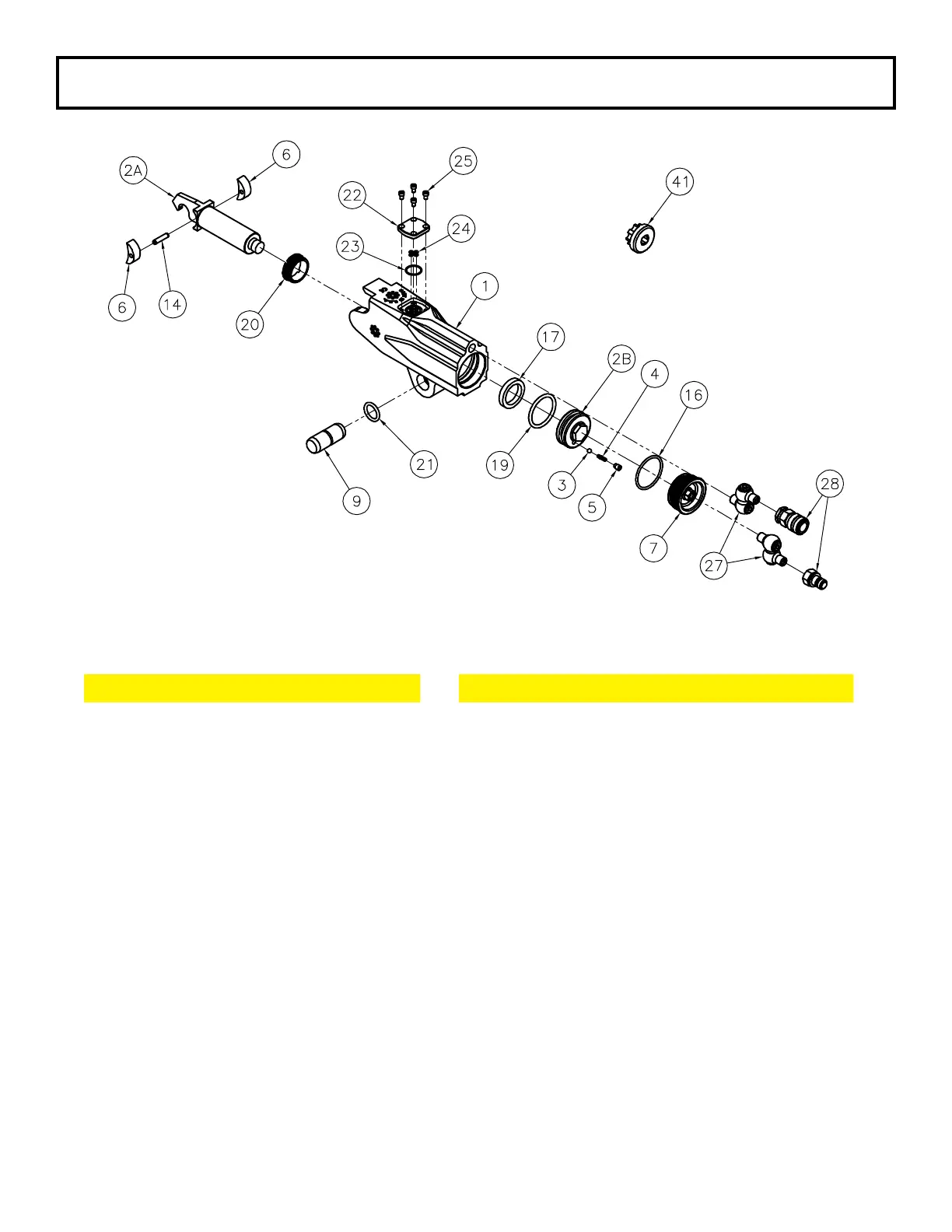

TX-32 Series Cylinder
Part Numbers for Ordering
ITEM NAME PART # QTY.
1 Housing TX-32-C01 1
2A Piston Rod TX-32-C03-1 1
2B Piston Cap TX-32-C03-2 1
3 Valve Ball TX-32-C03-3 1
4 Valve Spring TX-32-C03-4 1
5 Valve Cup TX-32-C03-5 1
6 Slider TX-32-C09 2
7 End Cap TX-32-C11 1
9 Link Pin TX-32-C15 1
14 Slider Pin TX-32-C27 1
16 End Plug Seal TX-32-C29 1
17 Rod Seal TX-32-C31 1
ITEM NAME PART # QTY.
19 Piston Seal TX-32-C33 1
20 Cylinder Gland TX-32-C51 1
21 Link Retaining Spring TX-32-C53 1
22 Seal Plate TXU-32-C54 1
23 O-ring (Large) USL-11 1
24 O-ring (Small) USL-13 4
25 Seal Plate Screw USL-23 4
27 Swivel Assembly STX-4M-4M 2
28 Coupler Set HC-S-100 1
41 Gland Removal Tool ATX-32-GW
Piston Assembly
(2A, 2B, 3, 4, 5)
TX-32-C03
